The GRsistemi SW300-KIT-8 motor kit automates a double-leaf swing gate, with a maximum weight of 250 kg and a maximum width of 3 m per leaf. It includes two self-lubricating electromechanical linear actuators, one right-hand and one left-hand, and an S7-150 control panel. The gate can open up to 120°, depending on the installation geometry.

The actuators operate at 230 Vac and each has a power rating of 330 W. The system supports automatic closing, motor force adjustment, and connection of an electric lock. In the event of a power outage, the key-operated release allows the gate to be moved manually.

• Gate type: Swing gate, double-leaf
• Direction: Right-hand
• Maximum leaf weight: 250 kg
• Maximum leaf width: 3 m
• Maximum width without an electric lock: 2.5 m per leaf
• Actuator: Linear, electromechanical, irreversible, with permanent lithium grease lubrication
• Motors: 2
• Motor power: 330 W
• Operating voltage: 230 Vac, single-phase
• Supply current: 0.9 A
• Capacitor capacity: 8 μF
• Maximum force: 2200 N
• Maximum opening angle: 120°
• Useful piston stroke: 300 mm
• Operating cycles: Up to 20 per hour at 20 °C
• Maximum duty cycle: 35% - S3
• Motor speed: 1400 rpm
• Operating temperature: From -25 °C to 60 °C
• Winding thermal protection: 150 °C
• Thermal reset time: 5 min
• Protection rating: IP43
• Motor housing: Aluminum
• Housing color: Black
• Remote controls: 8 wireless, 4-button
• Remote control frequency: 433.92 MHz
• Remote control coding: Fixed Code
• Remote control range: Approximately 50 m
• Maximum number of remote controls: 250
• Control panel: 1, S7-150
• Safety photocells: 1 set, wired, with transmitter and receiver
• Warning beacon: 1 LED
• Automatic closing: Supported
• Motor force adjustment: Supported
• Electric lock connection: Supported
• 230 Vac or 24 Vdc beacon connection: Supported
• 230 Vac lamp connection: Supported
• Photocell operation: Activated during closing, with the option to reverse to opening
• Slow stop: Supported
• Release: Key-operated
• LED diagnostics: Supported
• Control board technology: SMD

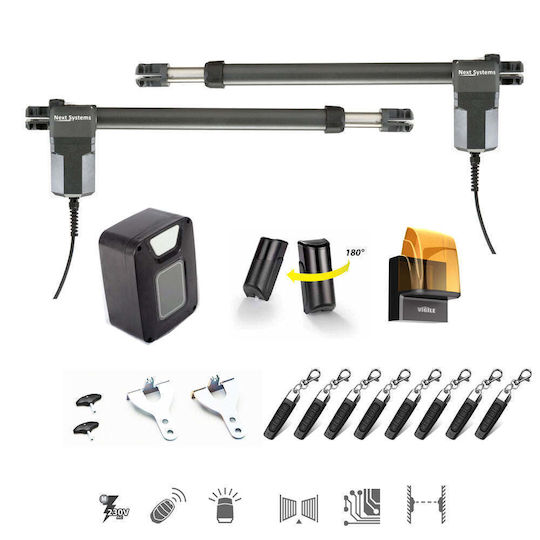

• Package contents: 2 actuators, control panel, 8 remote controls, safety photocells, LED beacon, mounting brackets and pins, 2 × 8 μF capacitors, 2 release keys, and installation instructions in Greek
• Origin: Italy
