The GRsistemi SW300-KIT-5 motor kit automates a double-leaf swing garage door, with a maximum weight of 250 kg and a width of up to 3 m per leaf. It includes two linear electromechanical operators with permanent lithium grease lubrication and an S7-150 control unit. The operators are non-reversible and can be disengaged with a key for manual operation.

The kit includes five wireless remote controls, a wired safety photocell set with transmitter and receiver, and an LED warning light. The operators run on a 230 Vac power supply and support up to 20 opening and closing cycles per hour at 20 °C. An electric lock is required for leaves wider than 2.5 m.

• Door type: Swing, with two leaves
• Direction: Right
• Maximum leaf weight: 250 kg
• Maximum width per leaf: 3 m
• Maximum width without an electric lock: 2.5 m
• Motors: 2 linear electromechanical operators
• Lubrication: Permanent, with lithium grease
• Control unit: S7-150, with a waterproof plastic housing
• Power supply: 230 Vac, single-phase
• Motor power: 330 W each
• Power supply current: 0.9 A
• Capacitor capacity: 8 μF
• Maximum force: 2200 N
• Maximum duty cycle: 35% - S3
• Opening and closing cycles per hour: Up to 20 at 20 °C
• Motor speed: 1400 rpm
• Operating temperature: From -25 °C to 60 °C
• Winding thermal protection: 150 °C
• Thermal reset time: 5 min
• Usable piston stroke: 300 mm
• Maximum opening angle: 120°
• Minimum hinge-to-hinge distance: 770 mm
• Maximum hinge-to-hinge distance: 1170 mm
• Maximum linear speed: 0.018 m/sec
• Opening/closing time: 33 sec
• Motor housing: Aluminum
• Housing color: Black
• Motor weight: 4.5 kg
• Kit weight: 15 kg
• Kit box dimensions: 775 × 235 × 125 mm
• Remote controls: 5 wireless Wiz remotes
• Remote control frequency: 433.92 MHz
• Remote control encoding: Fixed Code
• Remote control buttons: 4
• Remote control range: Approx. 50 m
• Maximum number of remote controls: 250
• Safety photocells: Wired, with transmitter and receiver
• Warning light: LED
• Disengagement: Key-operated
• Protection rating: IP43
• Automatic closing function: Yes
• Electric lock connection: Yes
• Motor torque/force adjustment: Yes
• 230 Vac warning light connection: Intermittent operation
• 230 Vac light connection: Steady operation
• 24 Vdc warning light connection: Intermittent operation
• Photocell connections: Internal and external
• Photocell operation: Activated during closing, with the option to reverse and open
• Soft stop: Yes
• LED diagnostics: Yes
• Control board technology: SMD

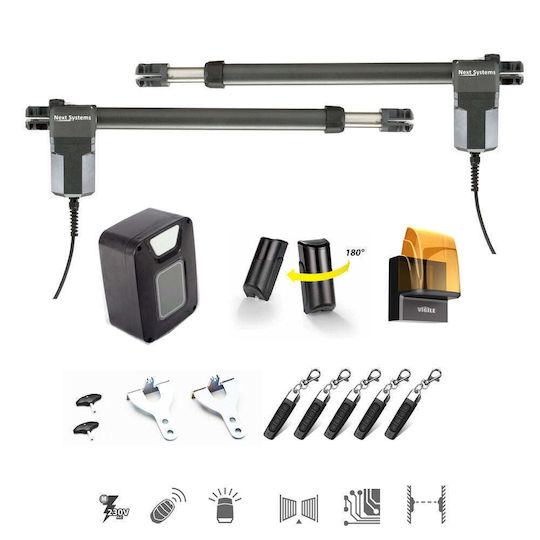

• Package contents: 2 SW300 operators, S7-150 control unit, 5 Wiz remote controls, VG-PC-2 photocell set, VG-LED warning light, mounting brackets and pins, 2 × 8 μF capacitors, 2 disengagement keys and installation instructions in Greek
• Origin: Italy
