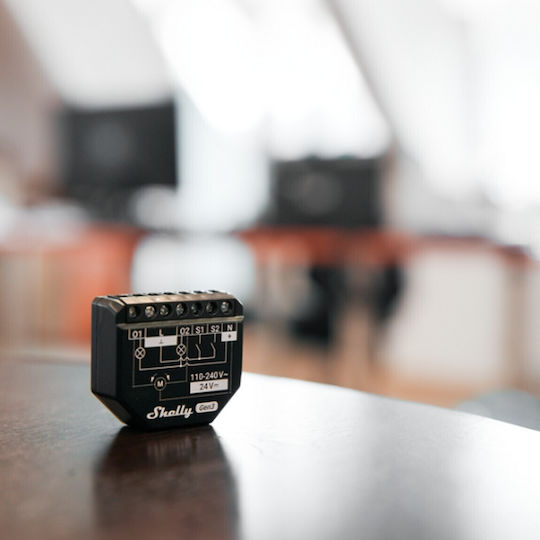

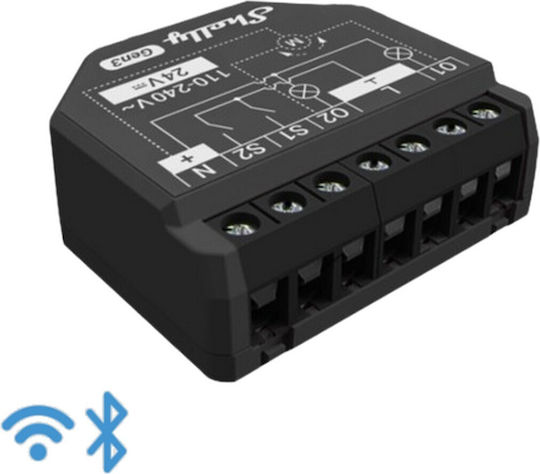

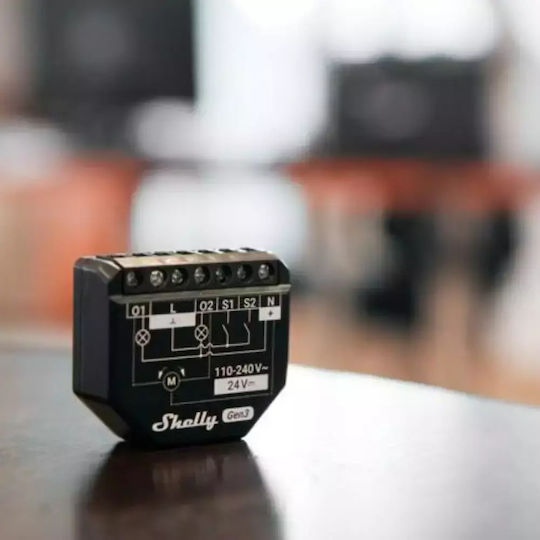

Shelly 2PM Gen3 Smart Switch 2 Channels Wi-Fi Bluetooth & RF 16A (With Neutral)
Intermediate Switches

Shelly 2PM Gen3 Smart Switch 2 Channels Wi-Fi Bluetooth & RF 16A (With Neutral) Code: 747Y09

Key features:

  • Voltage 110-240V AC 24V DC
  • Maximum current 16A
  • Power Metering
  • Wi-Fi / Bluetooth connection
See full description

  • Connectivity

    Bluetooth

    Wireless connectivity protocol for control from a short distance.

    Wi-Fi

    The most common connectivity option for individual switches, as it connects directly to the router.

    RF

    Wireless control via radio frequencies.

  • Usage

    Lighting

    For remote control of lamps and lighting fixtures.

    Roller shutters

    They allow remote control (up/down movement) of electric shutters and awnings.

  • Compatible Application

    The compatible app that you download to your mobile phone to control the switch remotely.

  • Maximum Load

    It is the maximum amount of current that the switch can withstand without burning out. It shows you how many or how powerful devices you can connect: for simple lights, 10A is enough, while for power-hungry devices (such as a water heater) more Amperes are required.

    For example, a typical LED bulb (e.g. 10W) draws very little current, about 0.04 Amperes. This means that a standard smart switch of 10A is more than sufficient for its operation.

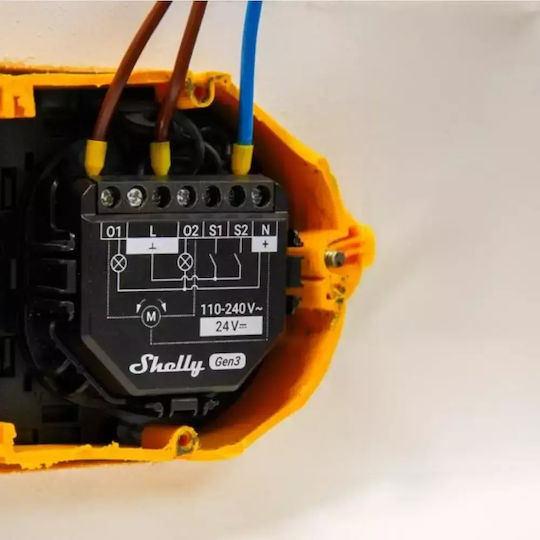

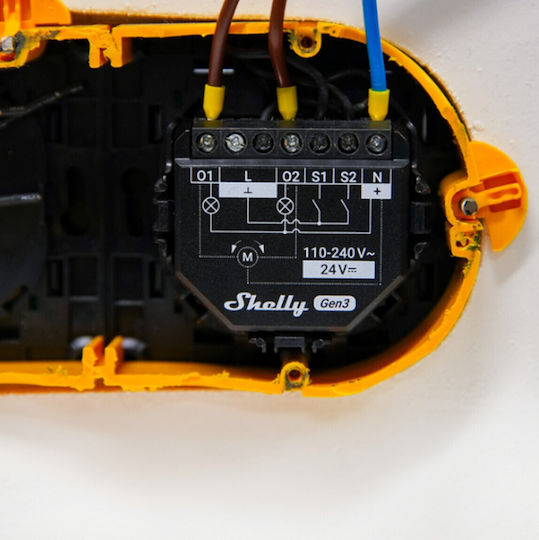

  • Wiring

    With Neutral

    For installations where both power cables are present in the switch box on the wall (phase and neutral).

  • Power Measurement

    It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.
  • Dimensions 42x16x16mm

  • Smart Ecosystem

    Google Home

    Google's platform for managing and controlling smart devices. It allows operation via Google Assistant with voice commands in Greek and the integration of the device into automated routines.
  • See all
Product report

Description

Description

Capabilities

The Shelly 2PM Gen3 is an advanced smart two-channel switch with consumption measurement capability, designed for controlling electrical circuits or bidirectional motors. The new Gen3 generation integrates the ESP-Shelly-C38F processor with 8MB memory, offering ultra-fast response and future Matter support. It is ideal for automating shutters, blinds, and awnings, allowing precise control of their position as well as the tilt of slats in venetian blinds.

Functionality and Shutter Control

The device stands out for its specialization in cover control (Cover Mode), allowing full automation of curtains, awnings, and garage doors. It features slats angle control for adjusting the lighting angle in blinds, while integrating safety systems such as obstacle detection and a safety switch. Through the Shelly Smart Control app, the user can set up smart scenarios and schedules that follow sunrise and sunset.

Energy Management and Networking

The Shelly 2PM Gen3 provides precise power measurement independently for each channel, helping to identify energy-consuming devices and improve energy efficiency. It operates via Wi-Fi without the need for a HUB, and can also be used as a Wi-Fi Range Extender or Bluetooth Gateway for other devices in the ecosystem. It supports advanced protocols such as MQTT, Webhooks, and Scripting, while offering protection against overheating, overload, and overvoltage for maximum safety.

Specifications

  • Model: Shelly 2PM Gen3
  • Power supply: 110-240V AC / 24V DC
  • Maximum current: 10A per channel, 16A total
  • Maximum power: 2400W AC
  • Channels: 2 channels on the same phase
  • Processor: ESP-Shelly-C38F (8MB memory)
  • Wireless connection: Wi-Fi 802.11 b/g/n & Bluetooth 4.2
  • Dimensions: 37x42x16 mm
  • Protection: Overpower, Overvoltage, Overcurrent, Overheating
  • Functions: Roller control, Slats angle, Obstacle detection
  • Protocols: MQTT, Webhooks, Scripting, KNXnet/IP
  • Certification: Matter certified (via firmware update)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
747Y09

Specifications

Switch Type
Smart Switch
Number of Channels
2

Number of Channels

Indicates how many different lamps or devices the switch can control independently. For example, a 1-channel switch controls one lighting circuit, while a 4-channel switch can manage up to four different devices from the same unit.
Usage
Lighting, Roller shutters

Usage

Lighting

For remote control of lamps and lighting fixtures.

Roller shutters

They allow remote control (up/down movement) of electric shutters and awnings.
Dimensions (Spec Summary)
42x16x16mm

Smart Attributes

Smart Ecosystem
Google Home

Smart Ecosystem

Google Home
Google's platform for managing and controlling smart devices. It allows operation via Google Assistant with voice commands in Greek and the integration of the device into automated routines.
Connectivity
Bluetooth, Wi-Fi, RF

Connectivity

Bluetooth

Wireless connectivity protocol for control from a short distance.

Wi-Fi

The most common connectivity option for individual switches, as it connects directly to the router.

RF

Wireless control via radio frequencies.

Additional Features

With Remote Control
No

With Remote Control

It allows you to control the switch remotely with a remote control, without needing your smartphone.
Maximum Load
16 A

Maximum Load

It is the maximum amount of current that the switch can withstand without burning out. It shows you how many or how powerful devices you can connect: for simple lights, 10A is enough, while for power-hungry devices (such as a water heater) more Amperes are required.

For example, a typical LED bulb (e.g. 10W) draws very little current, about 0.04 Amperes. This means that a standard smart switch of 10A is more than sufficient for its operation.
Wiring
With Neutral

Wiring

With Neutral

For installations where both power cables are present in the switch box on the wall (phase and neutral).
Compatible Application
Shelly Smart Control

Compatible Application

The compatible app that you download to your mobile phone to control the switch remotely.

Features

Dimmer
No

Dimmer

It allows you to adjust the brightness of the lighting instead of simple on/off operation. Bulbs that support dimmable function are required.
Dry Contact
No

Dry Contact

Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.
Consumption Measurement
Yes

Consumption Measurement

It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
