Description
Specifications

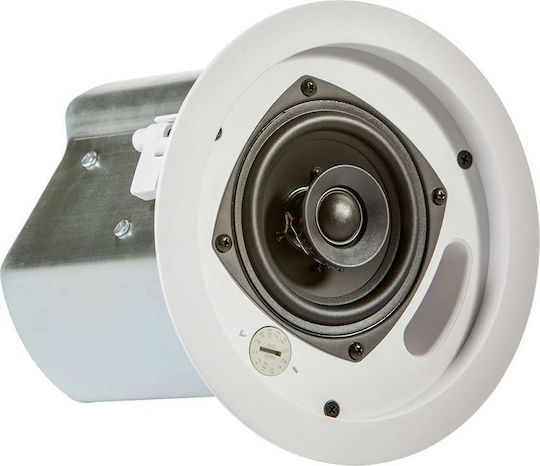

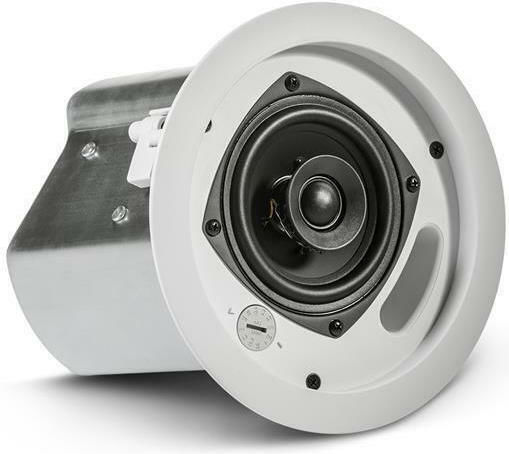

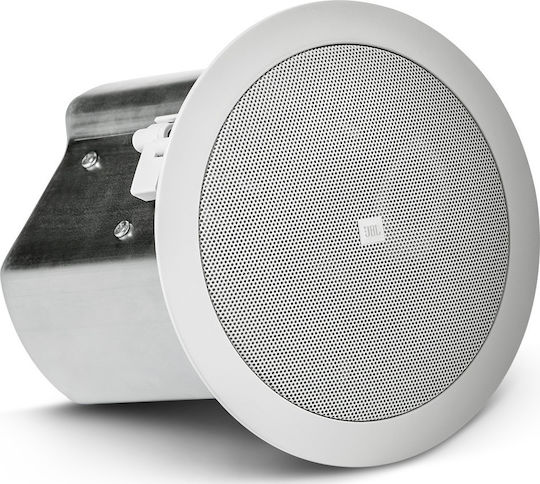

Ceiling speaker with metal backcan, 2-way coaxial.
Performance:
- Frequency: 74 Hz - 20 kHz
- Driver: 100 mm (4 inch) + 19 mm (0.75 in) soft-dome liquid-cooled tweeter
- Program capacity: 60W
- Maximum Volume: 108 dB peak
- Impedance: 8 Ω
Direct +M/Load Options:
- 25 W, 12.5 W, 6.3 W @ 70V or 100V
- 3.2 W @ 70V only
Features:
- Dog ears for easy installation
- Cut-out diameter: 17 cm

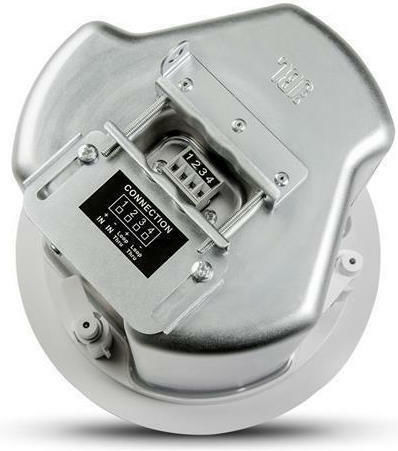

- Installation accessories: C-ring support backing plate, 2 tile support rails, cut-out template, paint shield, removable locking multi-pin connector, grille
Dimensions:
- Depth: 18.1 cm
- Outer diameter: 19.6 cm
Weight: 2.2 kg
Color: white
Technical Specifications
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 87 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
