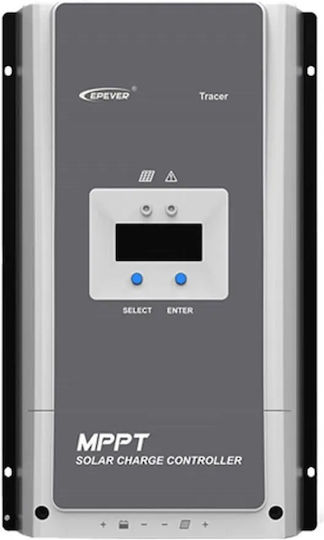

The Epever Tracer6420an charge controller uses MPPT technology to manage charging from photovoltaic panels and has a maximum charging current of 60 A. The built-in display shows system readings, while the maximum power point tracking algorithm helps improve performance.
It is compatible with monocrystalline and polycrystalline photovoltaic panels, as well as Sealed, Gel, Flooded, and Lithium batteries. The RS485 port with MODBUS protocol allows connection to smartphones, tablets, and PCs, while up to 8 units can be connected in parallel to expand the system.
- Type: MPPT
- Maximum voltage: 48 V
- Maximum charging current: 60 A
- Display: Built-in
- Photovoltaic compatibility: Monocrystalline and polycrystalline panels
- Battery compatibility: Sealed, Gel, Flooded, Lithium
- Energy monitoring: In real time
- Statistical function: Yes
- Parallel connection: Up to 8 units
- Communication port: RS485, 5 VDC/200 mA, MODBUS
- Certifications: CE, LVD EN/IEC62109, EMC EN61000-6-1/3
- Protection features: PV short circuit, deep discharge, overcharging, load overload, load short circuit, reverse PV polarity, and incorrect battery polarity
- Type
- MPPT
- Maximum Voltage
- 48 V
