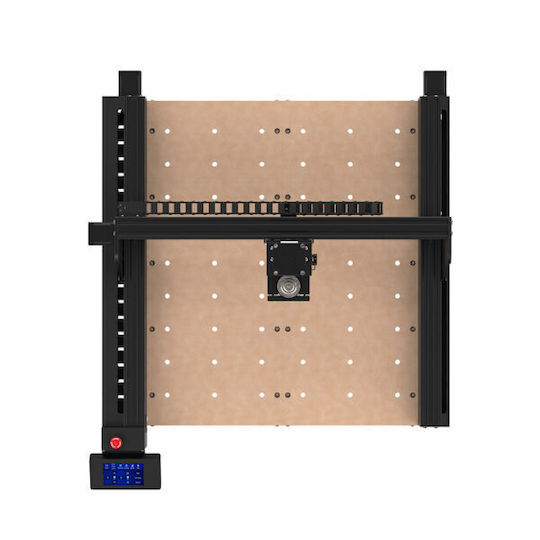

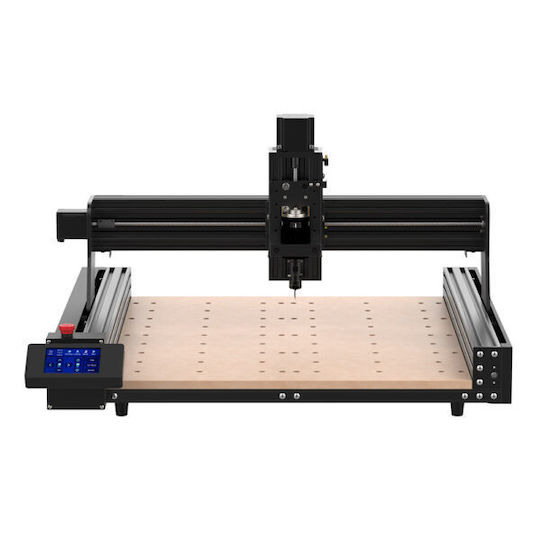

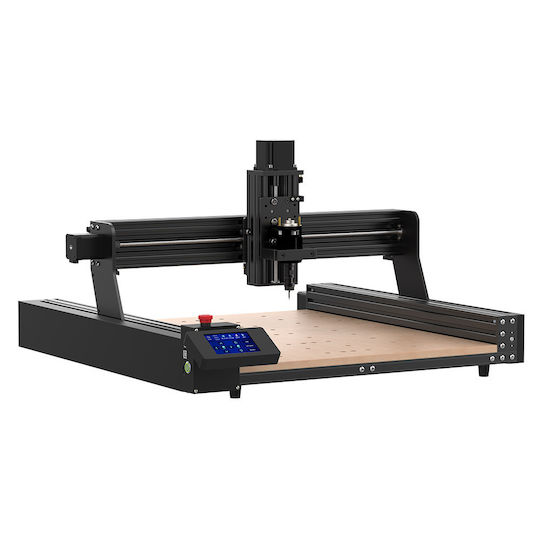

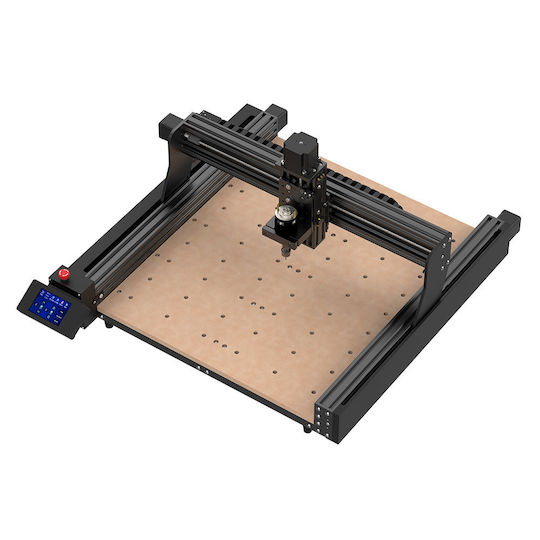

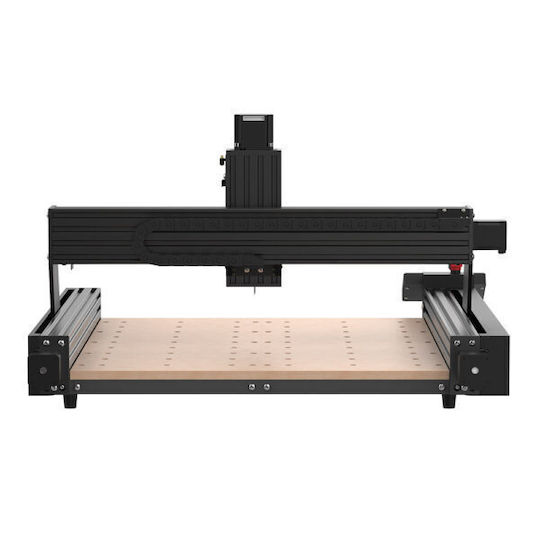

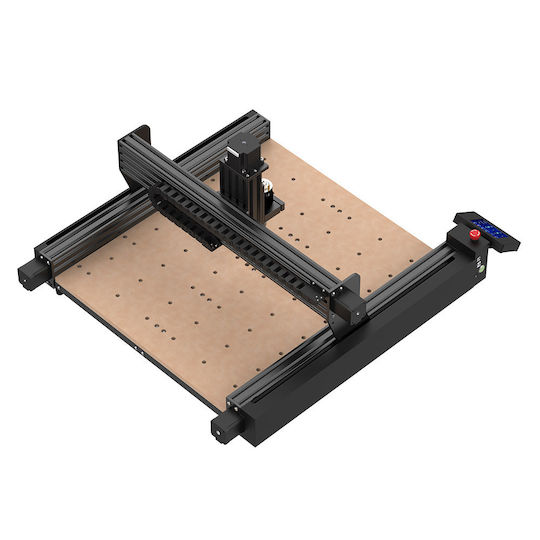

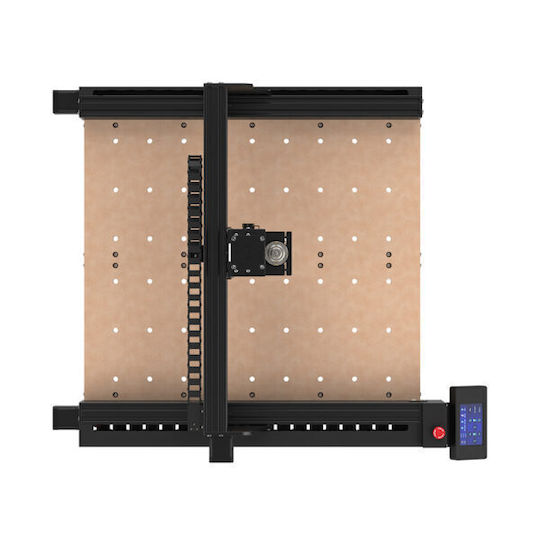

Two Trees TTC 450

• CNC Power: 120W CNC Module
• Motherboard: Integrated ESP32 32bit motherboard
• Connectivity Data: WiFi
• Screen: Touchscreen
• Emergency Button: Available
• Z Accuracy: 0.0025mm
• Dimensional Accuracy: Up to 0.01mm
• Work Area: 460x460x80mm
• Frame: Metal
• Assembly Rate: 70%

Description:

• Model: TTC450 CNC Router Machine
• Body Material: Metal frame & Aluminum 4080U Profile
• Drive System: Screen movement with double Y-axis system
• Main Board: DLC32 V2.1
• Stepper Driver: A4988 1.3A
• Stepper Motors: 17HS8401S, NEMA23 20mN.m
• Spindle: 74W, 8000RPM
• Max Speed: 800mm/Min
• Operating Accuracy: +/-0.1MM
• Repositioning Accuracy: +/-0.0025MM
• Power Supply: 120W 24V 5A
• CAM Software: Candle, Carveco, Artcam, Easel
• Limit Switches: X, Y, Z dual limit switch + ESTOP
• Rod Size and Type: T8 2mm Pitch, 4mm Lead 5 Start Acme Lead Screw

Smart Display:

• The integrated ESP32 32-bit chip features advanced technologies such as additional laser and rotary capability.
• Built-in WiFi module supports control via Computer, APP, and direct Screen.
• Smooth, precise, and clean motion supports trapezoidal translation screws.
