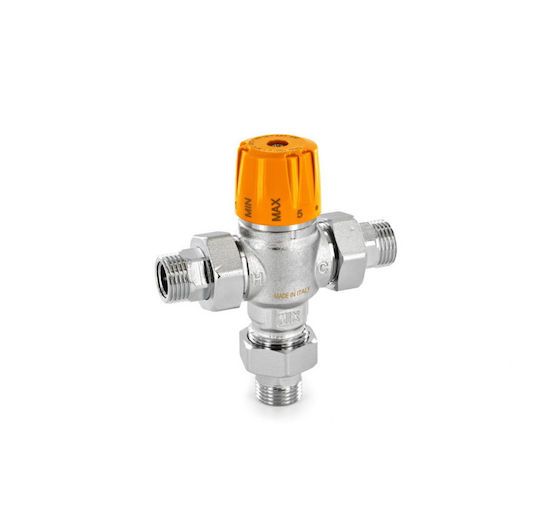

Thermostatic mixing valve designed for installation in solar hot water systems, intended to regulate the temperature of hot water for comfort and safety. It automatically mixes hot water from the solar storage with cold water from the mains system to the desired temperature.

The valve features a safety function against scalding, preventing the supply of hot water that could cause burns in case of sudden loss of pressure in the cold water connection. Even in the event of a sudden loss of hot water, the device will interrupt the flow of cold water, avoiding unpleasant thermal crises.

• MAXIMUM ALLOWABLE PRESSURE: 10 bar
• MAXIMUM WORKING PRESSURE: 5 bar
• MINIMUM FLOW RATE: 9 l/min
• MAXIMUM INLET TEMPERATURE: 100°C
• Temperature ADJUSTMENT RANGE: 30°C ÷ 65°C
• ACCURACY: ± 2°C
• FLOW COEFFICIENT: 1.3 ÷ 1.4
• COMPATIBLE FLUIDS: water
• CONNECTIONS: Male dismantling fittings 1/2" M and 3/4" M, thread according to ISO 228/1
• MATERIALS: Body: chrome-plated brass UNI EN 12165 CW625N, handle: PBT, internal components: brass UNI EN 12164 CW617N - UDEL GF-120 NT, springs: stainless steel, sealing elements: EPDM perox, temperature-sensitive element: wax
• DIMENSIONS: 108 x 122 mm, 118 x 127 mm
