Setting: 30°-65° C. Constant temperature operation: 100°C (120°C for 20 sec). Used in hydraulic systems for producing DHW and control the temperature at the set value. This provides the user with mixed water at a constant temperature regardless of the conditions of incoming cold-hot water.

• Includes male fittings, filters, and check valves for solar thermal installations.

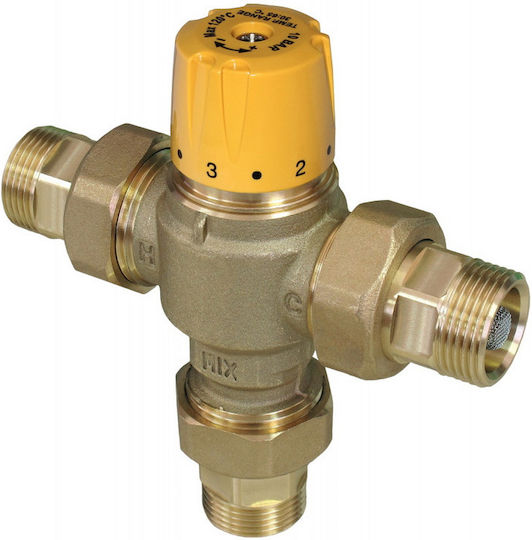

• Thermostatic mixing valve to prevent burns with a 1” male connection for solar applications.
• Body made of DZR brass.
• User-adjustable temperature from 30°C to 65°C via a button.
• Maximum static pressure 10 bar (PN 10); dynamic 5 bar.
• Maximum pressure ratio 2:1.
• Maximum inlet temperature: constant 100°C; (short time: 120°C for 20 seconds).
• Adjustment range: 30÷65°C. Accuracy ± 2°C.
• External connections: 3/4" or 1" male flat sealing.
