Hikvision Acusense DVR DVR iDS-7204HQHI-M1/XT(STD)
Surveillance Video Recorders

Hikvision Acusense DVR DVR iDS-7204HQHI-M1/XT(STD)

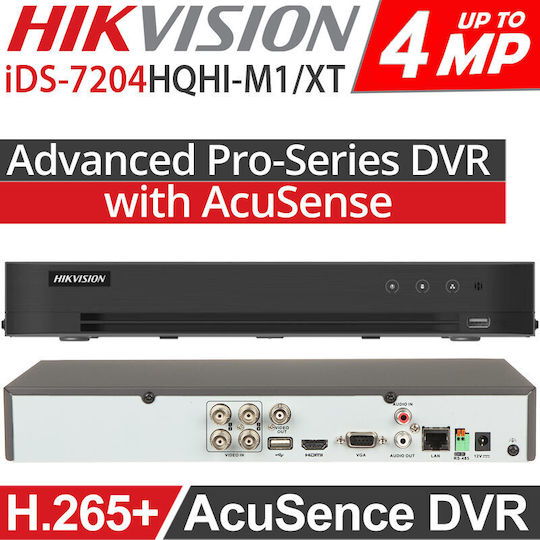

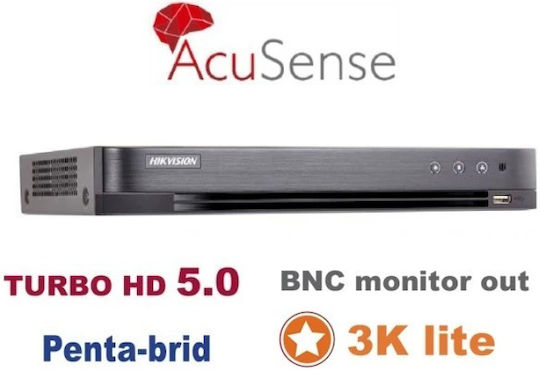

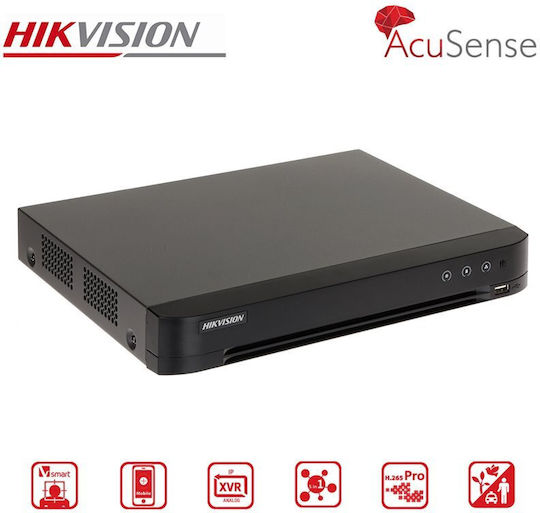

HIKVISION iDS-7204HQHI-M1/XT - Hybrid recorder HQHI series with the following features:

  • 4 HDTVI inputs at 3K/5MP resolution, CVI 5MP / 4MP / 1080p / 720p, AHD 5MP / 4MP / 1080p / 720p, and analog...

HIKVISION iDS-7204HQHI-M1/XT - Hybrid recorder HQHI series with the following features:

  • 4 HDTVI inputs at 3K/5MP resolution, CVI 5MP / 4MP / 1080p / 720p, AHD 5MP / 4MP / 1080p / 720p, and analog cameras (CVBS).
  • Support for up to 5 IP cameras with resolution up to 6MP.
  • Video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264.
  • Total Bit Rate 72 Mbps.
  • HDMI...
See full description See full description

  • Type

    DVR

    Recorder that works with analog cameras, converting their signal to digital for storage.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD+

    A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    72

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
Product report

Description

Description

HIKVISION iDS-7204HQHI-M1/XT - Hybrid recorder HQHI series with the following features:

  • 4 HDTVI inputs at 3K/5MP resolution, CVI 5MP / 4MP / 1080p / 720p, AHD 5MP / 4MP / 1080p / 720p, and analog cameras (CVBS).
  • Support for up to 5 IP cameras with resolution up to 6MP.
  • Video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264.
  • Total Bit Rate 72 Mbps.
  • HDMI and VGA outputs with resolution 1920x1080.
  • Recording per camera up to 25fps (real time) @ 1080p.
  • 1x 10TB disk slots.
  • 4 channels Motion Detection 2.0 and 2 channels Perimeter Protection.
  • 1 channel face recognition.
  • Support Audio over Coaxial on all analog channels.
  • 1 audio input (RCA) and 1 audio output (RCA).
  • 1 Ethernet port 1 x 100, 2 USB ports, 1 RS485 port.
  • Power consumption 18W.

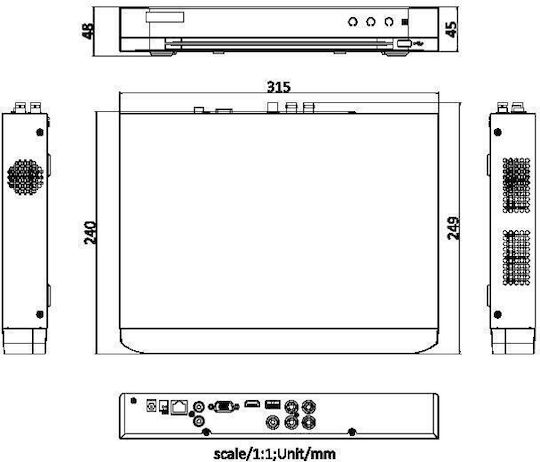

  • Dimensions (W×D×H) 315x242x45 mm.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
DVR

Type

DVR
Recorder that works with analog cameras, converting their signal to digital for storage.
Number of Channels Outputs
2

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Εισερχόμενο Εύρος Ζώνης
72 Mbps

Εισερχόμενο Εύρος Ζώνης: 72

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Θύρες
VGA, HDMI, USB

Θύρες

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
