The Edision HDMI Modulator 3in1 Mini offers unparalleled flexibility, as it allows signal output in three different standards: DVB-T, DVB-C, and ISDB-T. With an HDMI v1.4a input, it can receive a signal from any source and distribute it through the existing coaxial cable to all the televisions in the building. Support for Full High Definition resolution up to 1080p 60FPS guarantees that image quality will remain crystal clear, while MPEG4 AVC encoding ensures compatibility with all modern display devices.

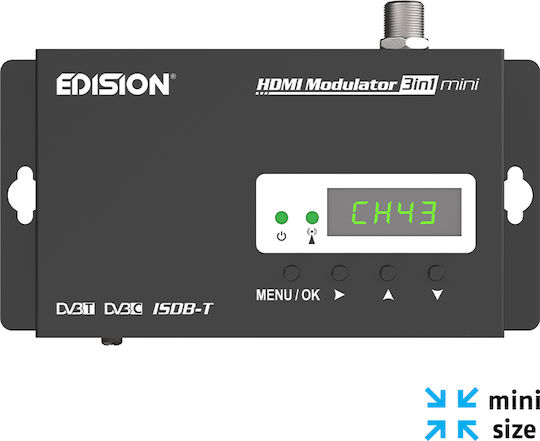

One of the main advantages of this particular modulator is its extremely small dimensions (132x84x31 millimeters). Its compact design allows for easy installation even in the tightest spaces, such as behind televisions or inside small electrical boxes. Despite its size, it incorporates a powerful 800MHz 32Bit ARM9 processor and DDRIII 1GBit/s memory, ensuring stable operation and fast signal processing without delays or image freezing.

Edision has simplified the installation process with the ID Pre-Config function. The configurator features 50 ready and selectable IDs, allowing the technician or user to complete the setup within seconds without complicated configurations. In addition, it supports the Backup Config File (CFG) function via USB, which enables exporting the settings and uploading them to another modulator, making mass configuration easier in large hotel or complex installations.

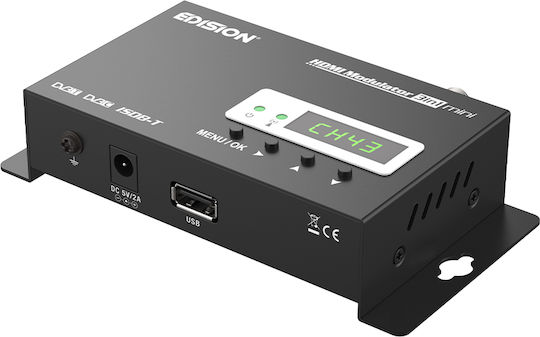

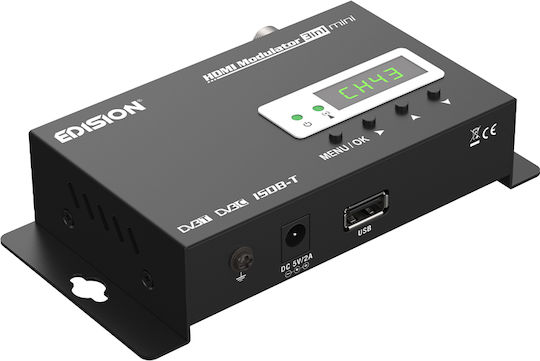

The quality of the RF signal is critical for avoiding interference. The Edision Mini provides an output level of 90 dBμV, with digital adjustment capability (+6 dBμV to -14 dBμV) for perfect adaptation to your network's needs. With a MER index of more than 35 dB, it ensures that the digital signal will reach the receivers without losses, even after long cable runs. The built-in 4-digit LED display and control buttons allow direct monitoring and adjustment of parameters without the need for an external computer.

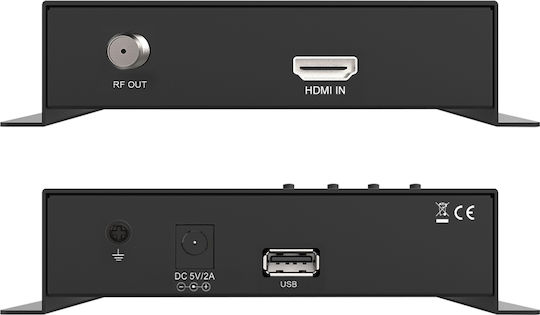

The modulator supports a wide range of video and audio encoding formats, including MPEG4 AVC HP @level4.1 and AAC LC / HE-AAC. This makes it compatible with all types of digital content, from simple CCTV cameras to advanced Media Players. The USB port offers the possibility for easy software upgrades, ensuring that your device stays up to date with the latest technological developments. Additionally, the HDMI v1.4a port ensures smooth data transfer from the source to the modulator.

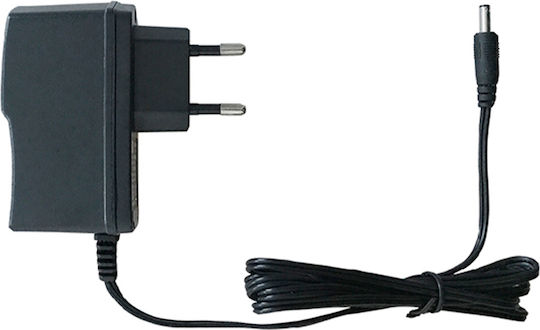

The package includes everything necessary for installation: the 5V/2.0A power adapter, mounting screws and wall plugs, as well as a detailed user manual in multiple languages.
