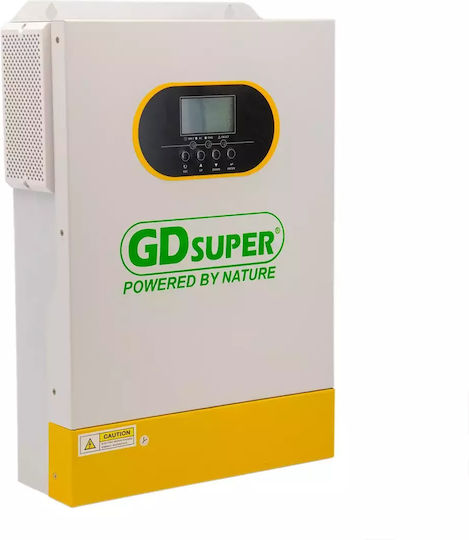

The GDSUPER series is an inverter charger that supports differentiated management functions in charging solar/grid/generator energy and power supply/inverter to AC loads.

Features:

• Supports battery mode or non-battery mode
• Overvoltage and reverse connection protection
• Three charging modes: Panel only, Panel priority, grid/generator & panel
• Two AC output modes: Utility priority and Inverter priority
• High MPPT tracking efficiency of at least 99.5%
• PFC technology that achieves a high power factor for AC to DC charging
• Advanced SPWM technology and pure sine wave output
• Adjustable battery charging and discharging current

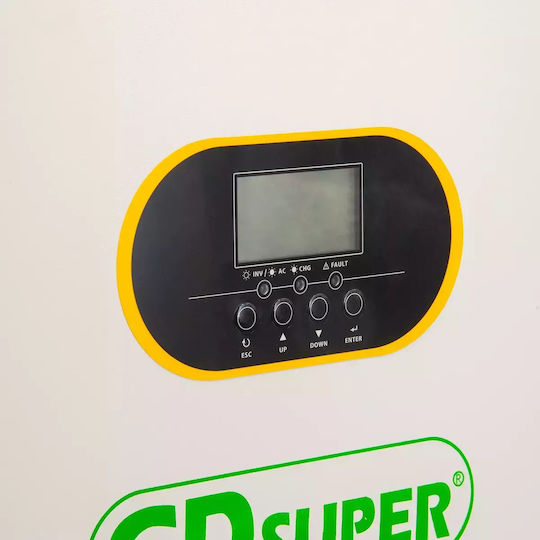

• Adjustable grid charging current LCD 4.2 inches for monitoring and modifying system parameters
• Optional WiFi or GPRS remote control via isolated RS485 communication port
• Weight 10 kg

Technical specifications:

• Maximum PV Input Power: 6500V
• Rated output power: 6200W
• Maximum solar charging current: 120A
• Standard DC Voltage/Maximum DC Voltage: 360V/500V DC
• Starting Voltage/initial supply voltage: 90V/120V DC
• Maximum DC Voltage: 90-450V DC
• MPPT quantity/Maximum input current: 1/27A
• Maximum Conversion Efficiency: 98
• Dual load output power full load: 6200W
• Maximum main load: 6200W
• Maximum Secondary Load (Battery Mode): 2067W
• Primary Load Cutoff Voltage: 44V DC
• Primary Load Return Voltage: 54V DC AC Output
• AC Start Voltage / Auto Restart Voltage: 120-140V ac/180VAC
• Acceptable Input Voltage Range: 90-280V AC or 170-280VAC
• Maximum AC Input current: 40A
• Rated Operating Frequency: 50/60Hz
• Surge power: 12400W
• Battery mode output (AC) rated output capacity: 220/230/240V AC
• Output waveform: pure sine wave
• Charger-rated DC voltage: 48V AC
• Maximum charging current: 120A
• Maximum AC Charging current: 100A
• Communication Interface: RS232/Wireless Network/GPRS
• Operating temperature: -10-50C

The hybrid inverter 48V 6200W is a device mainly used in renewable energy systems, such as photovoltaics, for managing and converting the generated energy.

• Hybrid operation: Combines the function of a traditional inverter with the ability to manage multiple energy sources.
• Operating voltage 48V: Supports large capacity battery systems.
• Power 6200W: Suitable for larger homes or energy-demanding systems.
• Energy storage: Ensures better energy efficiency and system autonomy.
