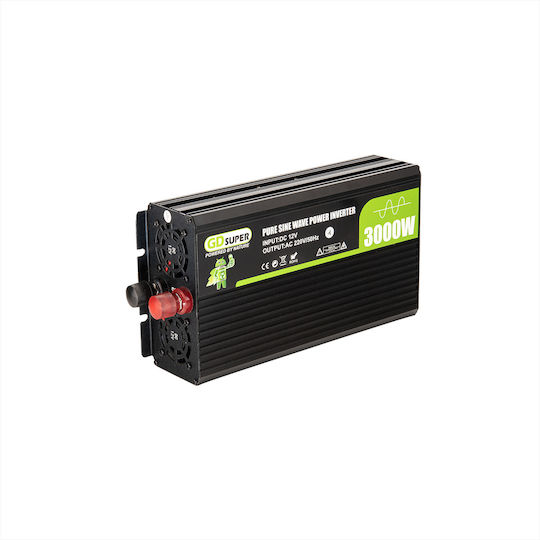

The Pure Sine Wave Inverter GD-SUPER 3000W 12V to 220V is a reliable solution for converting 12V DC to 220V AC, offering 3000W of power. Suitable for use in photovoltaic systems, home and professional applications, it provides a pure sine wave, ensuring stable performance for sensitive devices such as computers and televisions.
Advanced Protection Features:
- Full safety protection.
- Shutdown due to overheating.
- Protection against overload, overvoltage, and undervoltage.
- Audible low voltage alarm.
- New DC terminals for secure connection.

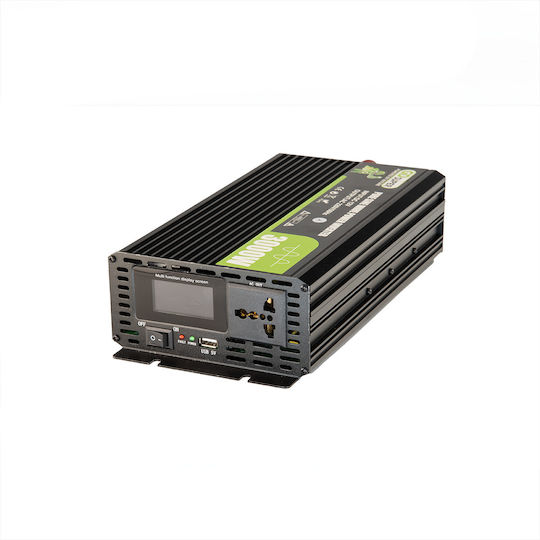

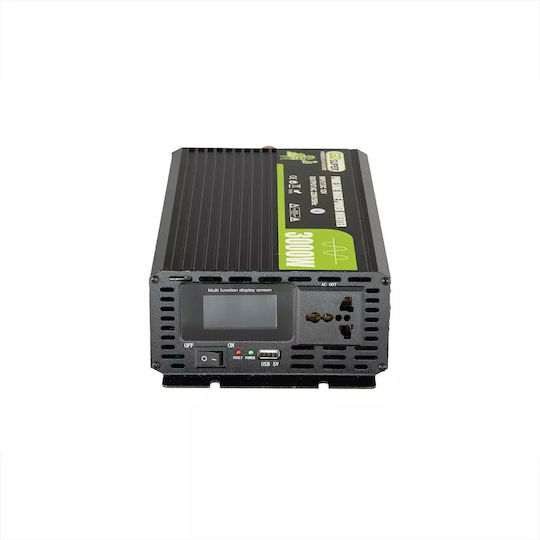

DIGITAL LCD DISPLAY: Displays battery power supply, input voltage, AC output voltage, output load, and warnings for overvoltage, low voltage, overload/short circuit.
The inverter features a control with an indicator light for better monitoring of its operating status, offering ease of supervision.

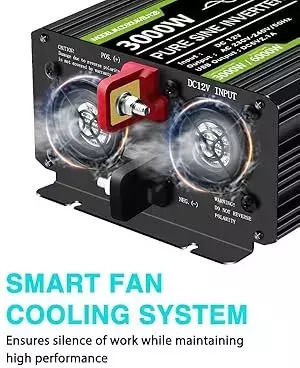

Efficient Cooling: Equipped with two cooling fans, they activate automatically above 45°C, keeping the inverter quiet when using low-power devices.
It has an ergonomic design and built-in protection against overheating and overload, ensuring reliable operation.
Technical Specifications:
- Power: 3000W
- Input Voltage: DC 12V (10-15V)
- Output Voltage: 230V ±10%
- Output Frequency: 50Hz
- Output Waveform: Pure Sine Wave
- USB Port: DC 5V / 2.1A
- Operating Temperature: -10℃ to 40℃
- Cooling Method: Intelligent air cooling
- Overvoltage Shutdown: 15V ±0.5VDC
- Undervoltage Shutdown: 10V ±0.5VDC
- Cables: 50CM/25mm² (2 pairs)
- Weight: 2.8kg
Product Dimensions: 27x15cm
Difference between modified and pure sine wave: The pure sine wave is smooth and suitable for sensitive devices, while the modified sine wave is more "rough" and less stable.
