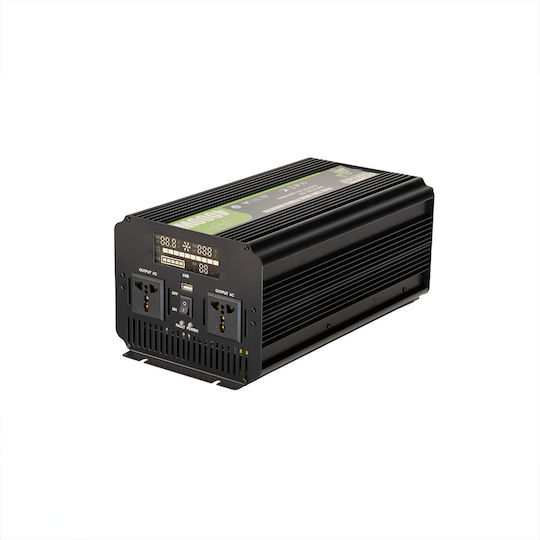

The Gdsuper 7724GD pure sine wave inverter converts 12 V DC to 230 V AC. Its pure sine wave is suitable for sensitive devices such as computers and TVs. The inverter can be used in photovoltaic systems and residential or commercial applications.

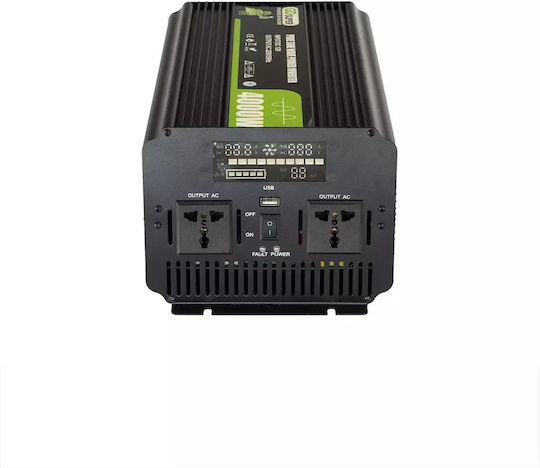

The digital LCD display shows the battery current, AC input and output voltage, and warnings for overvoltage, low voltage, and overload. The two fans switch on automatically to cool the inverter, while the DC terminals allow connection to a high-current power source.

• Waveform: Pure sine wave
• Rated power: 4000 W
• Rated input voltage: 12 V
• Input voltage range: 10–15 V DC
• Output voltage: 230 V ±10%
• Output frequency: 50 Hz
• Power supply: Single-phase
• Display: Digital LCD
• USB port: DC 5 V / 2.3 A
• Protection: Overheating, overload, overvoltage, and undervoltage
• Audible alert: For low voltage
• Cooling method: Smart air cooling with 2 fans
• Operating temperature: -10 °C to 40 °C
• Overvoltage shutdown: 15 V ±0.5 V DC
• Undervoltage shutdown: 10 V ±0.5 V DC
• Cables: 2 pairs, 50 cm / 25 mm²
• Dimensions: 40 × 17 cm
• Weight: 3.4 kg
