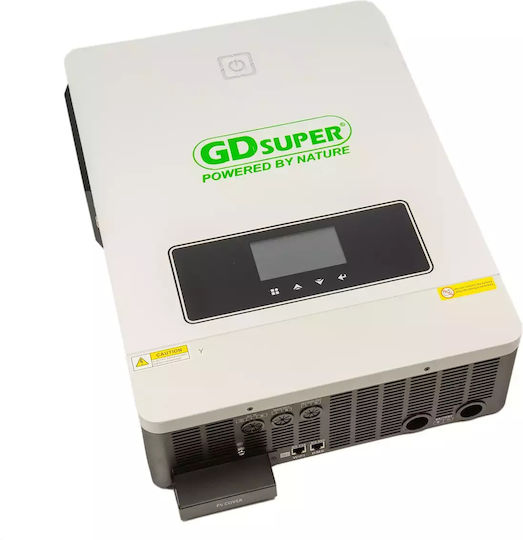

The Gdsuper inverter is a single-phase pure sine wave inverter charger for managing power from photovoltaic panels, the grid and a generator, as well as supplying AC loads. It supports operation with or without a battery and can supply power directly from the panels, with automatic switching between the grid and panels. SPWM technology provides a pure sine wave output, while MPPT tracking efficiency is at least 99.5%.

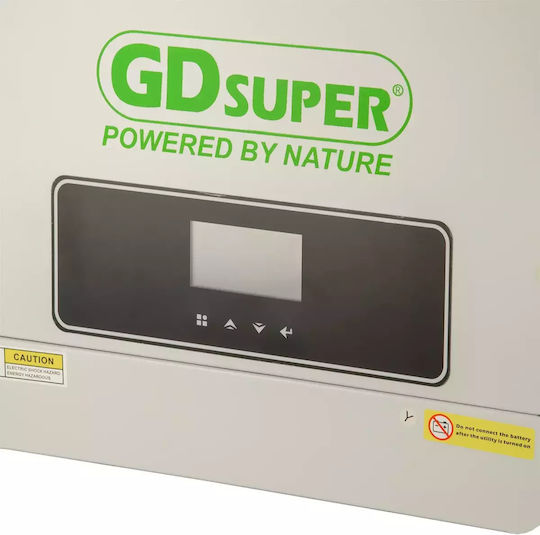

It supports three charging modes: solar panels only, solar panel priority, or grid/generator and solar panels. For AC output, it offers grid priority or inverter priority mode. Battery charging and discharging current, as well as grid charging current, are adjustable, and the LCD screen has a 4.2-inch diagonal. PFC technology is used for AC-to-DC charging, while remote control via WiFi or GPRS is optional.

• Type: Pure sine wave
• Rated power: 10200 W
• Power supply: Single-phase
• Maximum photovoltaic input power: 10200 W
• Maximum photovoltaic charging current: 160 A
• DC voltage: 360 V / 500 V
• Startup / initial supply voltage: 90 V / 120 V DC
• DC voltage range: 90–450 V
• Number of MPPTs / maximum input current: 1 / 27 A
• Maximum conversion efficiency: 98%
• Dual-load output power: 10200 W
• Maximum main-load power: 8200 W
• Maximum secondary-load power in battery mode: 2733 W
• Main-load output voltage: 44 V DC
• Main-load recovery voltage: 54 V
• AC startup / automatic restart voltage: 120–140 V AC / 180 V AC
• Acceptable AC input voltage range: 90–280 V AC
• Maximum AC input current: 40 A
• Operating frequency: 50/60 Hz
• Peak power: 20400 W
• Rated AC output voltage in battery mode: 220/230/240 V AC
• Maximum charging current: 160 A
• Charger DC voltage: 48 V

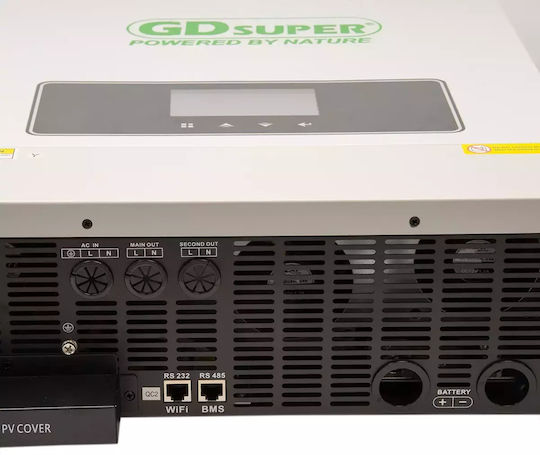

• Communication interfaces: RS232, wireless network, GPRS, LCD
• Operating temperature: -10 to 50 °C
• Weight: 18 kg
