Motion Sensors

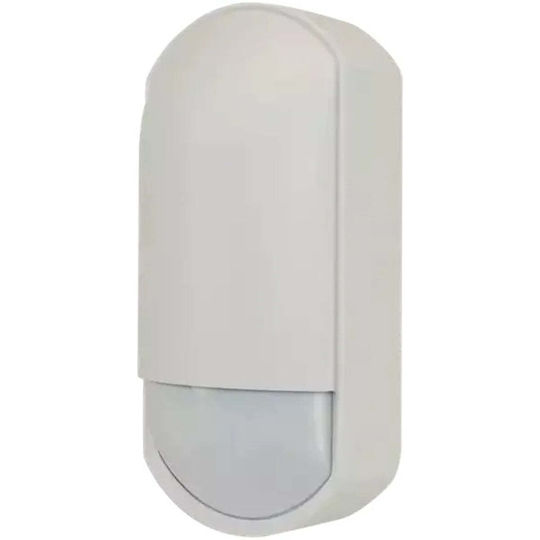

Optex Infrared Motion Sensor with 12m Range

The Optex FLX-S-ST-20 motion sensor detects movement using infrared technology and features a rotating lens with wide and narrow detection areas. The wide area covers up to 12 m at an angle of 85°,...

The Optex FLX-S-ST-20 motion sensor detects movement using infrared technology and features a rotating lens with wide and narrow detection areas. The wide area covers up to 12 m at an angle of 85°, while the narrow area reaches up to 18 m at an angle of 5°. It is designed for indoor installation at a height of 2–3 m.

  • Detection type: Infrared
  • Wide-area...
See full description See full description

Top specs

  • See all
28 71 €
Delivery Tue, 01 Dec - Mon, 07 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (117)

Learn more about invoicing

Description

Description

The Optex FLX-S-ST-20 motion sensor detects movement using infrared technology and features a rotating lens with wide and narrow detection areas. The wide area covers up to 12 m at an angle of 85°, while the narrow area reaches up to 18 m at an angle of 5°. It is designed for indoor installation at a height of 2–3 m.

  • Detection type: Infrared
  • Wide-area range: Up to 12 m
  • Wide-area angle: 85°
  • Narrow-area range: Up to 18 m
  • Narrow-area angle: 5°
  • Mounting: Wall-mounted
  • Operating environment: Indoor
  • Installation height: 2–3 m
  • Sensitivity: 1.6°C at 0.6 m/s, with an installation height of 2.4 m
  • Alarm duration: 2.0 ± 0.5 s
  • Preparation time: Approximately 60 s
  • LED indicator: Flashes during preparation
  • Power supply: 9.5–16 V DC
  • Power consumption: Up to 12 mA at 12 V DC
  • Alarm relay output: N.C., up to 24 V DC and 0.1 A
  • Tamper relay output: N.C., up to 24 V DC and 0.1 A
  • Operating temperature: -20°C to +50°C
  • Operating humidity: Up to 95% RH
  • Dimensions: 130 × 62 × 56 mm
  • Weight: 120 g / 135 g

Manufacturer

See full description

Specifications

Specifications

Specifications

Detection Type
Infrared
Scope
12 m
Battery
No

Additional Features

Antimasking
No
Tamper
No
Curtain
No
Placement
Wall
Recessed
No
PET
No
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Optex FLX-S-ST-20 motion sensor detects movement using infrared technology and features a rotating lens with wide and narrow detection areas. The wide area covers up to 12 m at an angle of 85°, while the narrow area reaches up to 18 m at an angle of 5°. It is designed for indoor installation at a height of 2–3 m.

  • Detection type: Infrared
  • Wide-area range: Up to 12 m
  • Wide-area angle: 85°
  • Narrow-area range: Up to 18 m
  • Narrow-area angle: 5°
  • Mounting: Wall-mounted
  • Operating environment: Indoor
  • Installation height: 2–3 m
  • Sensitivity: 1.6°C at 0.6 m/s, with an installation height of 2.4 m
  • Alarm duration: 2.0 ± 0.5 s
  • Preparation time: Approximately 60 s
  • LED indicator: Flashes during preparation
  • Power supply: 9.5–16 V DC
  • Power consumption: Up to 12 mA at 12 V DC
  • Alarm relay output: N.C., up to 24 V DC and 0.1 A
  • Tamper relay output: N.C., up to 24 V DC and 0.1 A
  • Operating temperature: -20°C to +50°C
  • Operating humidity: Up to 95% RH
  • Dimensions: 130 × 62 × 56 mm
  • Weight: 120 g / 135 g

Manufacturer

Specifications

Detection Type
Infrared
Scope
12 m
Battery
No

Additional Features

Antimasking
No
Tamper
No
Curtain
No
Placement
Wall
Recessed
No
PET
No
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
