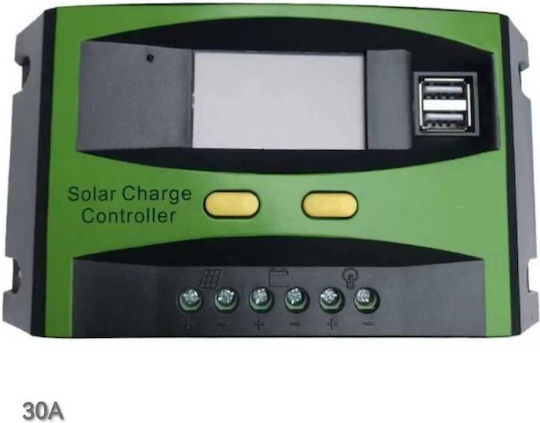

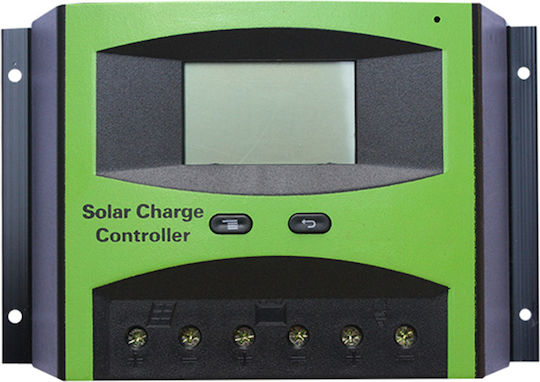

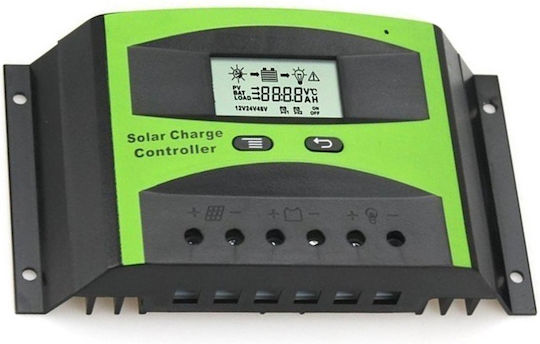

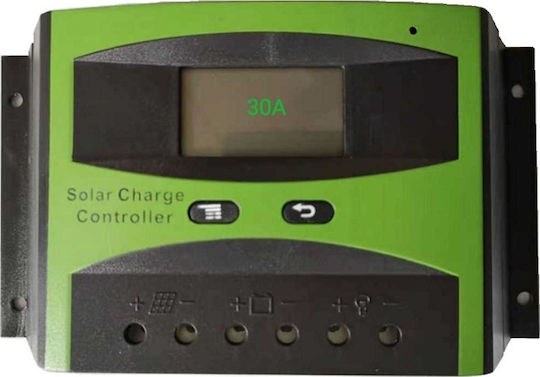

The 12 V 30 A digital PWM charge controller manages charging for photovoltaic systems and automatically detects the system voltage. The PWM charging function displays charging current, discharge current and battery voltage on the easy-to-read LCD screen, updating every 5 seconds. Charging and discharging parameters can be adjusted, and load operating modes can also be set.
It includes protection against reverse battery connection, reverse discharge, low battery voltage, overload and short circuit. After an overload, automatic restart occurs after a delay.
- Type: PWM
- Nominal operating voltage: 12 V / 24 V
- Nominal operating current: 30 A
- Maximum photovoltaic panel voltage: Below 50 V
- Float charging voltage: 13.7 V / 27.4 V, adjustable
- Low-voltage protection: 10.7 V / 21.4 V, adjustable
- Low-voltage recovery: 12.6 V / 25.2 V, adjustable
- No-load consumption: Below 30 mA
- Circuit voltage drop: Below 200 mA
- Temperature compensation: -4 mV/Cell/℃
- Maximum cable cross-section: 25 mm²
- Operating temperature: -20 ℃ to 50 ℃
- Storage temperature: -30 ℃ to 70 ℃
- Operating humidity: Up to 90%, non-condensing
- Dimensions: 190 × 108 × 41.5 mm
- Weight: 520 g
- Type
- PWM
- Maximum Voltage
- 12 V
- Maximum Short Circuit Current
- 30 A
