Thermostat 230V ZFX-ST3012
Central Heating Parts & Accessories

Thermostat 230V ZFX-ST3012 Code: ZFX-ST3012

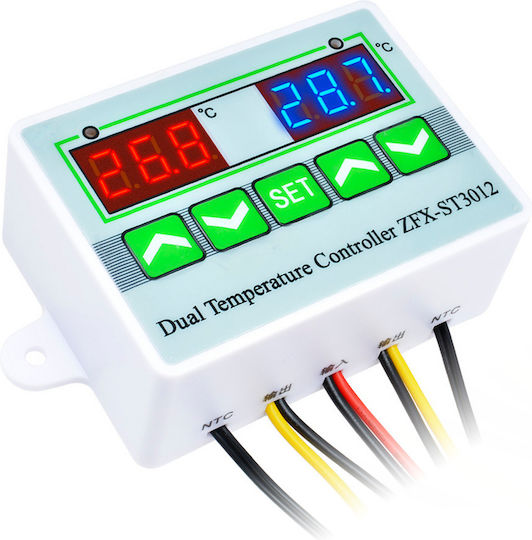

The ZFX-ST3012 thermostat allows temperature monitoring and independent adjustment at two points using two separate sensors. Programmable alarms are triggered when the temperature exceeds the lower or...

The ZFX-ST3012 thermostat allows temperature monitoring and independent adjustment at two points using two separate sensors. Programmable alarms are triggered when the temperature exceeds the lower or upper limit, alerting you with a sound, an on-screen indicator, and a flashing LED. The built-in memory preserves the settings in the event of a power...

See Description & Specifications See Description & Specifications
19 90 €
Delivery by Mon, 09 Nov
17,00 €   shipping cost
Sent from Greece
From 8com 4.9 (5)
4.9 (5 reviews)
Greece
1 piece
See Central Heating on the page of 8com

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The ZFX-ST3012 thermostat allows temperature monitoring and independent adjustment at two points using two separate sensors. Programmable alarms are triggered when the temperature exceeds the lower or upper limit, alerting you with a sound, an on-screen indicator, and a flashing LED. The built-in memory preserves the settings in the event of a power interruption.

Heating or cooling mode is selected from the menu, where you can also set the temperature differential for relay activation, adjust the readings, and configure the activation delay. The waterproof NTC10k/343S sensor has a stainless-steel metal probe.

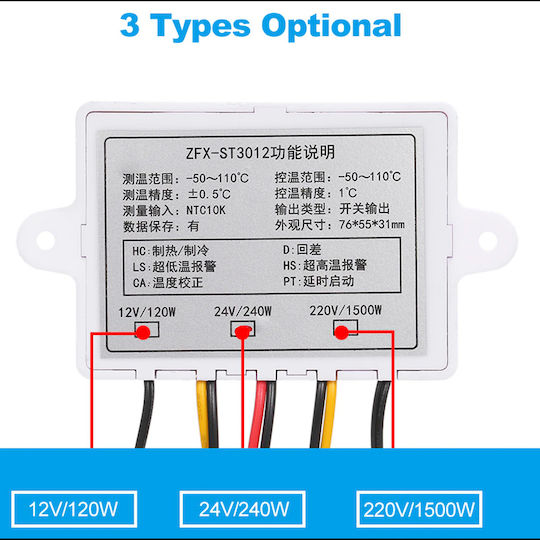

  • Power supply: AC 230 V
  • Relay contact load: 5 A at AC 230 V
  • Temperature measurement range: -50 °C to +110 °C
  • Measurement resolution: 0.1 °C
  • Measurement update rate: 0.5 s

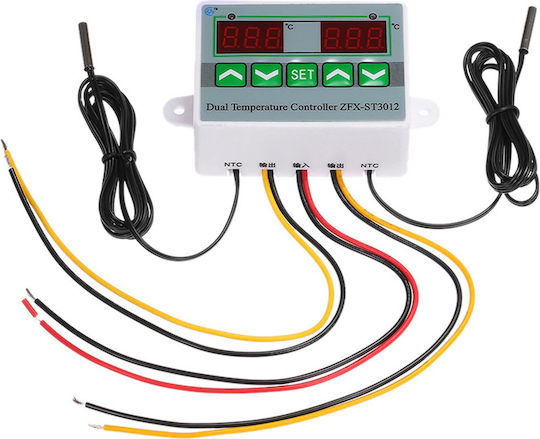

  • Sensor: NTC10k/343S
  • Sensor probe: Waterproof, stainless steel
  • Sensor cable length: 95 cm
  • Length of other cables: Approx. 20 cm
  • Probe diameter: 4 mm
  • Probe length: 20 mm

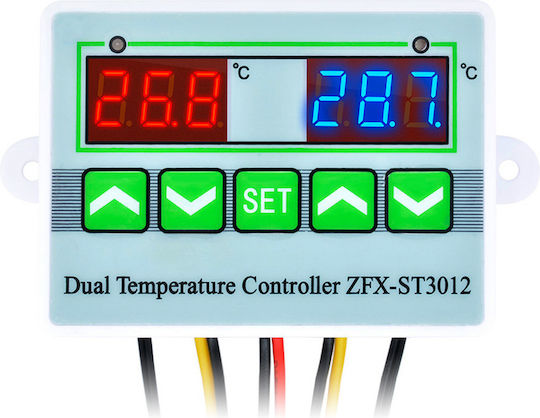

  • Displays: 2 three-digit LED displays
  • Display color: Red
  • Indicator LED colors: Green for the relay and red for the alarm
  • Enclosure dimensions without mounting brackets: 76 × 55 × 31 mm
  • Mounting hole spacing: 88 mm
  • Operating temperature: 0 °C to 50 °C
  • Weight: 100 g
  • Current consumption: 30 mA
  • Functions: Heating or cooling
  • Temperature differential for relay activation: 1–30 °C
  • Low-temperature alarm limits: -50 °C to +109 °C
  • High-temperature alarm limits: -49 °C to +110 °C
  • Temperature reading adjustment: -10 °C to +10 °C
  • Relay activation delay: 0–10 min
  • Settings storage: Built-in memory
