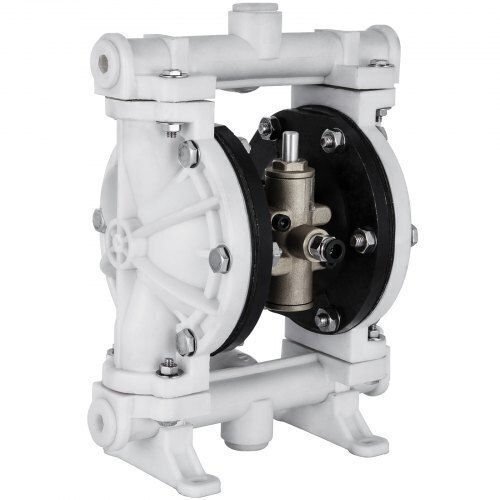

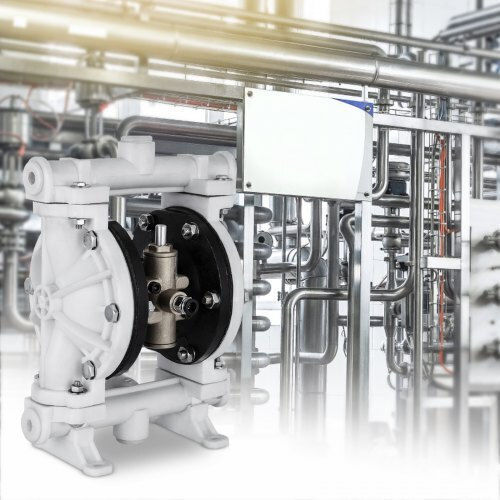

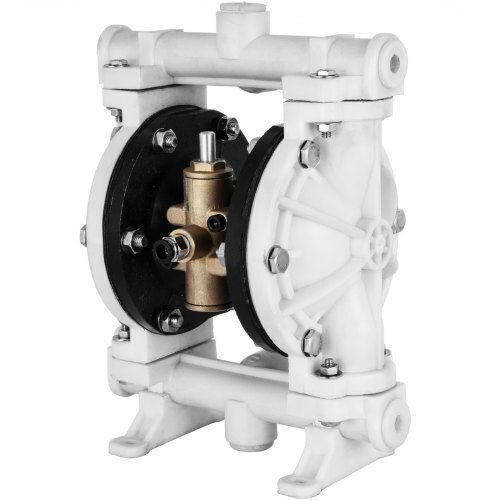

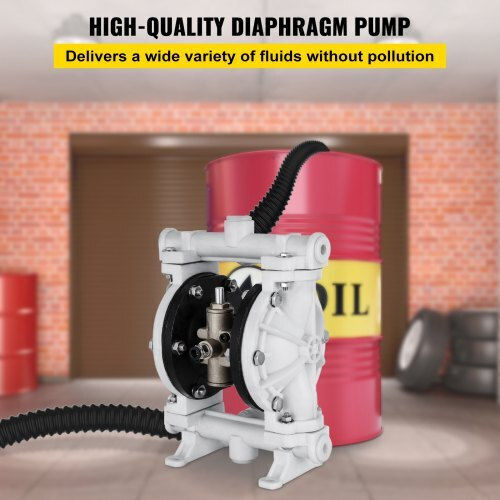

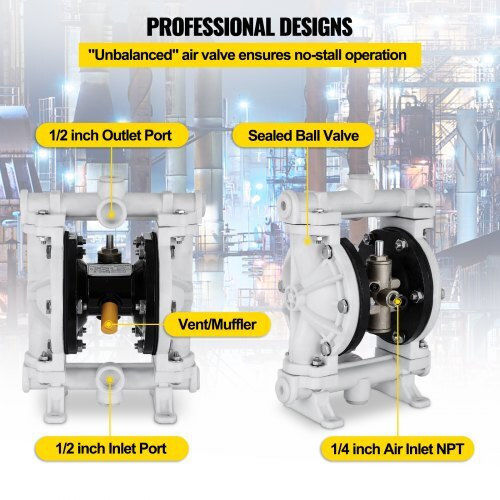

The Vevor air-operated double diaphragm pump transfers fuel and other low-viscosity liquids, such as diesel, oil, and gasoline. It features a polypropylene body, double PTFE diaphragms, and a sealed ball valve.
- Pump type: Air-operated, double diaphragm
- Body material: Polypropylene

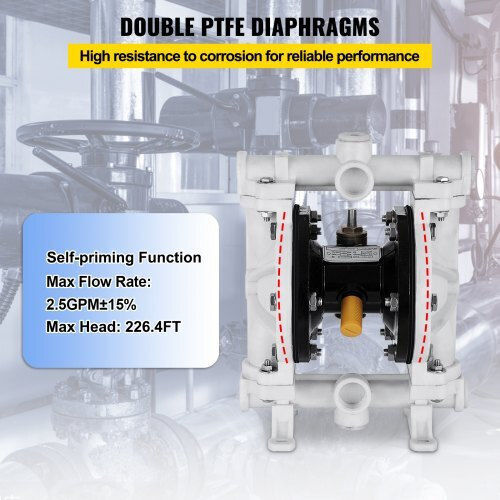

- Diaphragm material: PTFE
- Ball material: Santoprene
- Inlet/outlet: 1/2 inch (12.7 mm)
- Air inlet: 1/4-inch FNPT (6.35 mm)
- Maximum flow rate: 2.5 GPM
- Maximum pressure: 80 PSI

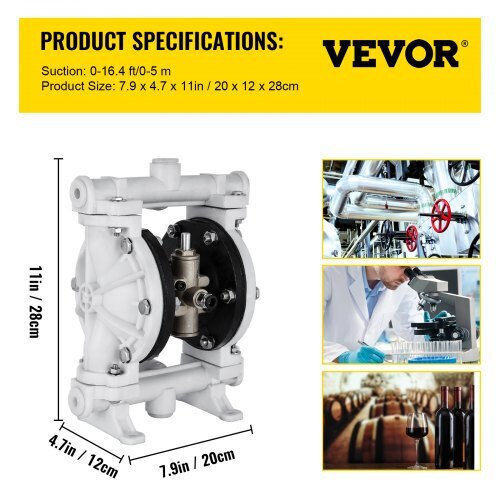

- Suction lift: 0–5 m
- Dry self-priming lift: 3 m
- Wet self-priming lift: 4.6 m
- Maximum discharge head: 69 m
- Maximum solid particle size: 2.38 mm
- Operating temperature: -20 to 150 ℉

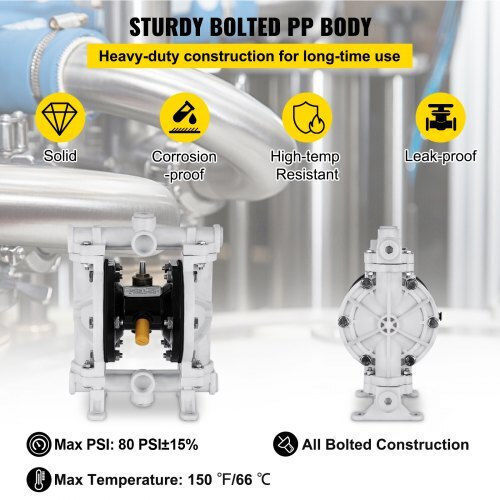

- Sealing: Bolted enclosure and Glyd ring
- Air valve: Modular, stainless steel, low-pulse
