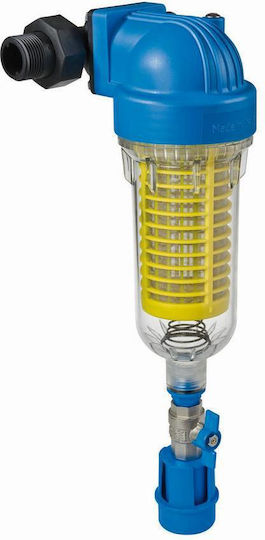

Atlas Filtri Hydra DS-RAH 90μm Water Filtration System Single Central Supply Micron 3/4'' with Replacement Filter 256690
Water Filtration Systems

Atlas Filtri Hydra DS-RAH 90μm Water Filtration System Single Central Supply Micron 3/4'' with Replacement Filter 256690

Self-cleaning Water Filter Hydra DS 3/4"-1" with rotating head and stainless steel mesh 90μm.

  • Maximum operating pressure: 8 bar (116 psi)
  • Minimum operating pressure: 1.8 bar (26 psi)
  • Maximum...

Self-cleaning Water Filter Hydra DS 3/4"-1" with rotating head and stainless steel mesh 90μm.

  • Maximum operating pressure: 8 bar (116 psi)
  • Minimum operating pressure: 1.8 bar (26 psi)
  • Maximum operating temperature: 45°C (113°F)
  • Minimum operating temperature: 4°C (39.2°F)
  • Suitable for horizontal or vertical installation

Made from non-toxic materials,...

See full description See full description
Review the product
Product report

Description

Description

Self-cleaning Water Filter Hydra DS 3/4"-1" with rotating head and stainless steel mesh 90μm.

  • Maximum operating pressure: 8 bar (116 psi)
  • Minimum operating pressure: 1.8 bar (26 psi)
  • Maximum operating temperature: 45°C (113°F)
  • Minimum operating temperature: 4°C (39.2°F)
  • Suitable for horizontal or vertical installation

Made from non-toxic materials, suitable for drinking water:

  • Head: Reinforced polypropylene
  • Bowl: PET
  • Air release valve: Stainless steel
  • Sealing gasket & valve: EPDM
  • Rotating head connector: Reinforced nylon
  • Self-cleaning valve: Nickel-plated brass CW 614 N
  • Drain & hose fitting: Reinforced polypropylene

A pressure reducer is recommended before installing each filter. During installation, use only Teflon tape where necessary.

When changing the filter cartridge, clean the bowl gasket, wipe it dry, apply lubricant, and reinstall it. When the gasket is worn, it needs replacement.

  • Brand: ATLAS FILTRI
  • Filtration Density: 90μm
  • Treatment Material: Stainless Steel AISI 304
  • Device Type: Self-cleaning Filter
  • Filtration Stages: One
  • Bowl Color: Transparent
  • Inlet/Outlet Diameter: 3/4" - 1"
  • Water Flow (lt/h): 4000 - 5000 lt/h

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Colour
Transparent
Number of Filters
Single
Type
Central Supply

Type

Central Supply
The installation is done by a plumber. They filter water for the whole house.
Material
Plastic
with Replacement Filter
Yes

with Replacement Filter


Includes a replacement filter of corresponding compatibility with this device.
with Faucet
No
Pipe Cross Section
3/4''

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
Yes

Self-Cleaning


This only applies to Central Supply filters. Water supply will not be interrupted during cleaning.
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Self-cleaning Water Filter Hydra DS 3/4"-1" with rotating head and stainless steel mesh 90μm.

  • Maximum operating pressure: 8 bar (116 psi)
  • Minimum operating pressure: 1.8 bar (26 psi)
  • Maximum operating temperature: 45°C (113°F)
  • Minimum operating temperature: 4°C (39.2°F)
  • Suitable for horizontal or vertical installation

Made from non-toxic materials, suitable for drinking water:

  • Head: Reinforced polypropylene
  • Bowl: PET
  • Air release valve: Stainless steel
  • Sealing gasket & valve: EPDM
  • Rotating head connector: Reinforced nylon
  • Self-cleaning valve: Nickel-plated brass CW 614 N
  • Drain & hose fitting: Reinforced polypropylene

A pressure reducer is recommended before installing each filter. During installation, use only Teflon tape where necessary.

When changing the filter cartridge, clean the bowl gasket, wipe it dry, apply lubricant, and reinstall it. When the gasket is worn, it needs replacement.

  • Brand: ATLAS FILTRI
  • Filtration Density: 90μm
  • Treatment Material: Stainless Steel AISI 304
  • Device Type: Self-cleaning Filter
  • Filtration Stages: One
  • Bowl Color: Transparent
  • Inlet/Outlet Diameter: 3/4" - 1"
  • Water Flow (lt/h): 4000 - 5000 lt/h

Manufacturer

Manufacturer Details

Warnings & Safety Information
Colour
Transparent
Number of Filters
Single
Type
Central Supply

Type

Central Supply
The installation is done by a plumber. They filter water for the whole house.
Material
Plastic
with Replacement Filter
Yes

with Replacement Filter


Includes a replacement filter of corresponding compatibility with this device.
with Faucet
No
Pipe Cross Section
3/4''

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
Yes

Self-Cleaning


This only applies to Central Supply filters. Water supply will not be interrupted during cleaning.
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
