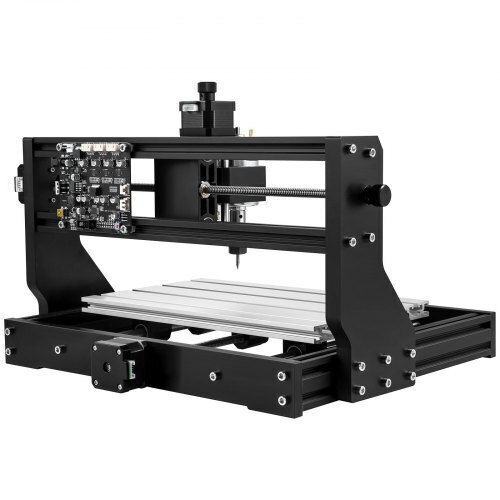

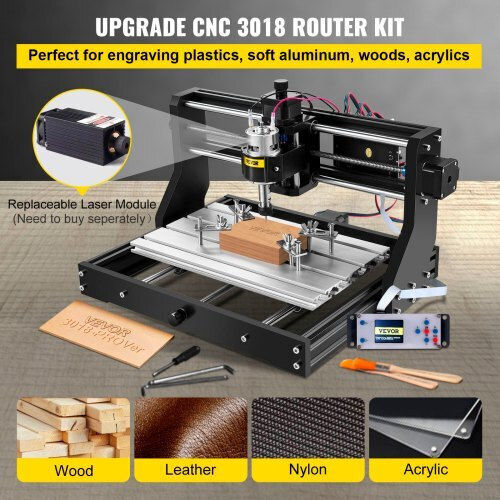

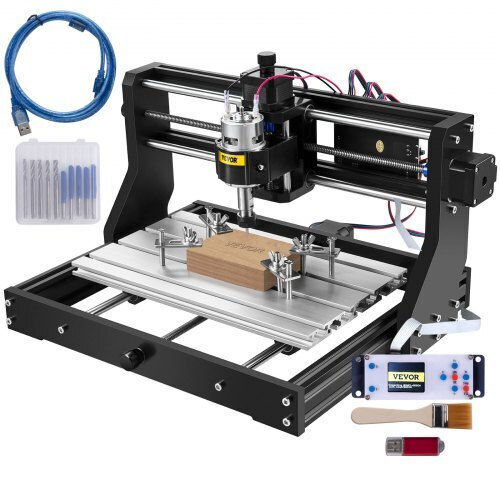

CNC Router Machine 3018: The CNC 3018 PRO is an upgraded version of the 3018 CNC. A detailed user manual, assembly instructions, and installation video are provided to facilitate its use. The engraving machine can be used for various materials such as plastics, aluminum, acrylics, PVC, and PCBs.

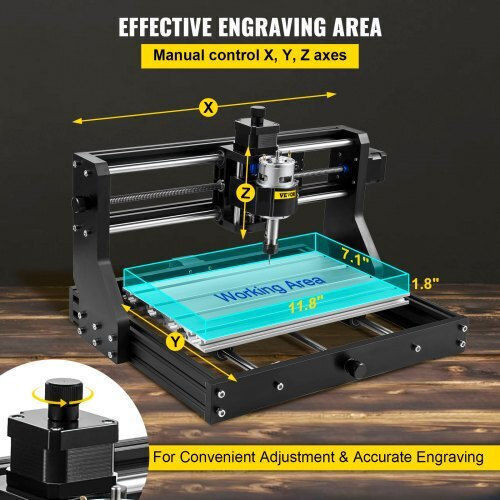

Large working area: The effective engraving area is 11.8 (X) x 7.1 (Y) x 1.8 (Z) inches. The three refined axes are designed for precision in engraving flat surfaces. The drive units consist of stainless steel screws, while double copper nuts are used to minimize backlash errors.

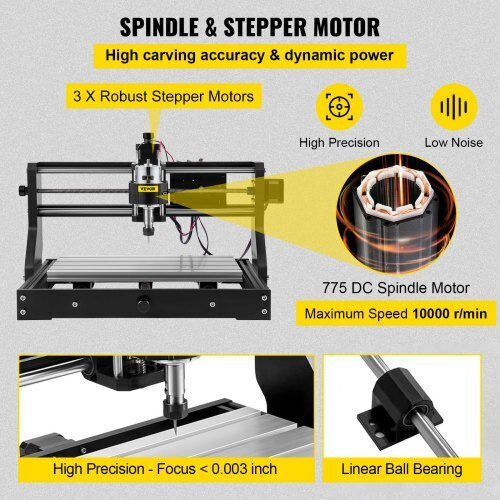

Excellent motor: The machine features three stepper motors and a DC spindle motor with a rotation speed of up to 10,000 r/min. It also supports Windows 7, 8, 10, Linux, macOS, and other platforms for importing files in .nc/.txt/.tape/.gcode format.

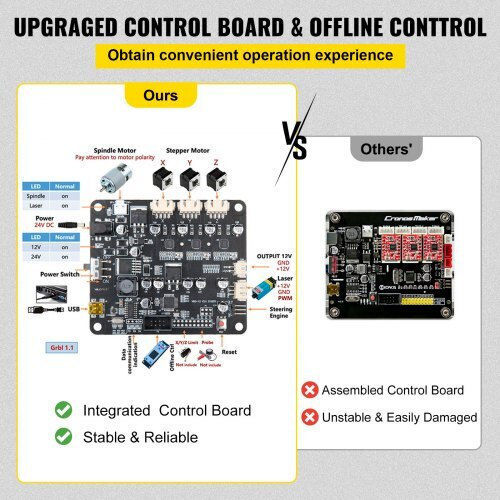

Upgraded control board: The built-in GRBL controller offers full functionality. The advantages of the offline controller include:

• No computer connection required.
• Arbitrary selection of offline files for engraving.
• Manual adjustment of the X, Y, and Z axes position as a starting point for engraving.
• High precision: less than 0.003 inches.

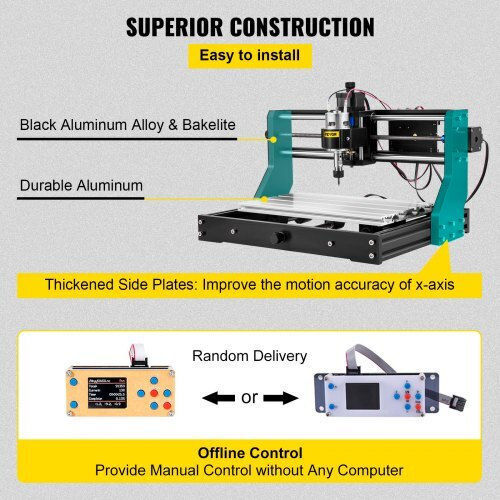

Robust material: The frame is made of aluminum alloy and bakelite materials, ensuring high strength and precision. The thick side plates improve the accuracy of the x-axis, and the product is durable for repeated use.

Model: VG-S3018 Pro

Actual working area (X x Y x Z): 11.8 x 7.1 x 1.8 inches / 300 x 180 x 45 mm

Materials: Aluminum Profile & Bakelite

Input Power: DC 24V 5A

Drive Units: Stainless Steel Screws

Spindle Speed: 10000 rpm

Stepper Motor: 12V; Torque

Control Software: GRBL Control

Positioning Accuracy: 0.003 inches / 0.08 mm

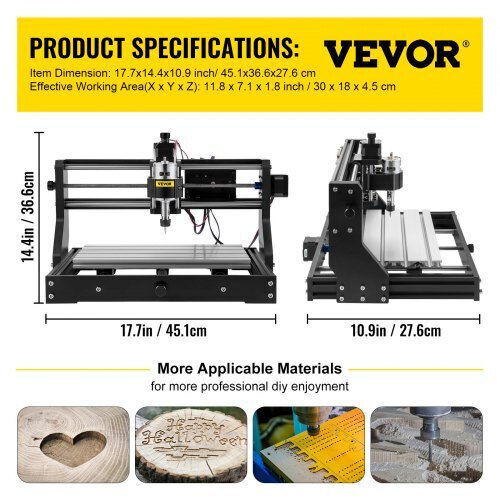

Item Dimensions: 17.7 x 14.4 x 10.9 inches / 45.1 x 36.6 x 27.6 cm
