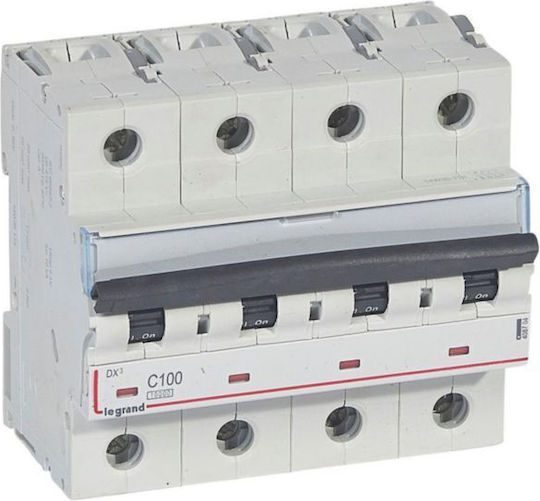

Legrand Dx³ 4p 100a Automatic Three-phase Circuit Breaker 10ka 400v Type C Neutral Disconnection N 408704
Automatic Circuit Breaker

Legrand Dx³ 4p 100a Automatic Three-phase Circuit Breaker 10ka 400v Type C Neutral Disconnection N 408704

LEGRAND DX³ 4P 100A Automatic three-phase circuit breaker

Features:

  • Installation depth: 47 millimeters
  • Number of poles: 4
  • Number of protected poles: 4
  • Nominal current (In): 100A
  • Nominal voltage (Ue):...

LEGRAND DX³ 4P 100A Automatic three-phase circuit breaker

Features:

  • Installation depth: 47 millimeters
  • Number of poles: 4
  • Number of protected poles: 4
  • Nominal current (In): 100A
  • Nominal voltage (Ue): 400V
  • Nominal insulation voltage (Ui): 500V
  • Nominal pulse withstand voltage (Uimp): 6 kV
  • Nominal breaking capacity at 230 V (Icn): 10 kA
  • Nominal breaking...
See full description See full description
Review the product
Product report

Description

Description

LEGRAND DX³ 4P 100A Automatic three-phase circuit breaker

Features:

  • Installation depth: 47 millimeters
  • Number of poles: 4
  • Number of protected poles: 4
  • Nominal current (In): 100A
  • Nominal voltage (Ue): 400V
  • Nominal insulation voltage (Ui): 500V
  • Nominal pulse withstand voltage (Uimp): 6 kV
  • Nominal breaking capacity at 230 V (Icn): 10 kA
  • Nominal breaking capacity at 400 V (Icn): 10 kA
  • Nominal breaking capacity according to IEC 60947-2 at 230 V (Icu): 32 kA
  • Nominal breaking capacity according to IEC 60947-2 at 400 V (Icu): 16 kA
  • Frequency: 50-60Hz
  • Flush mounting: Yes
  • Neutral pole trips simultaneously: Yes
  • Pollution degree: 3
  • Width in number of modules: 6
  • Protection category (IP): IP20
  • Ambient temperature during operation: -25-70°C
  • Flexible cable connection cross-section: 6-50 mm²
  • Rigid cable connection cross-section: 6-70 mm²
  • Width: 106.8 mm
  • Height: 103 millimeters
  • Depth: 79.2 mm
  • Impact resistance (IK): IK02
  • Storage temperature: -40-70°C
  • Power supply direction: From above or below
  • Color: Grey
  • RAL number: 7035
  • Halogen-free: Yes
  • Connection type: Screw terminal
  • Installation method: DIN rail

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
4
Rated Current
100 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

LEGRAND DX³ 4P 100A Automatic three-phase circuit breaker

Features:

  • Installation depth: 47 millimeters
  • Number of poles: 4
  • Number of protected poles: 4
  • Nominal current (In): 100A
  • Nominal voltage (Ue): 400V
  • Nominal insulation voltage (Ui): 500V
  • Nominal pulse withstand voltage (Uimp): 6 kV
  • Nominal breaking capacity at 230 V (Icn): 10 kA
  • Nominal breaking capacity at 400 V (Icn): 10 kA
  • Nominal breaking capacity according to IEC 60947-2 at 230 V (Icu): 32 kA
  • Nominal breaking capacity according to IEC 60947-2 at 400 V (Icu): 16 kA
  • Frequency: 50-60Hz
  • Flush mounting: Yes
  • Neutral pole trips simultaneously: Yes
  • Pollution degree: 3
  • Width in number of modules: 6
  • Protection category (IP): IP20
  • Ambient temperature during operation: -25-70°C
  • Flexible cable connection cross-section: 6-50 mm²
  • Rigid cable connection cross-section: 6-70 mm²
  • Width: 106.8 mm
  • Height: 103 millimeters
  • Depth: 79.2 mm
  • Impact resistance (IK): IK02
  • Storage temperature: -40-70°C
  • Power supply direction: From above or below
  • Color: Grey
  • RAL number: 7035
  • Halogen-free: Yes
  • Connection type: Screw terminal
  • Installation method: DIN rail

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
4
Rated Current
100 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

236,50 €
14,00 €   shipping cost
