The KORAD KD3305 power supply bench uses digital encoders and control buttons for simple and convenient operation, ensuring safety and reliability. It features serial and parallel output with triple adjustment.

• CH1 and CH2: Output from 0 to 30V
• CH3: Options of 2.5V, 3.3V, and 5V

It includes an output switch and shutdown memory function. Settings are easily made by pressing the buttons, which offer two modes: continuous adjustment and adjustment lock. The keyboard can be locked to prevent improper use.

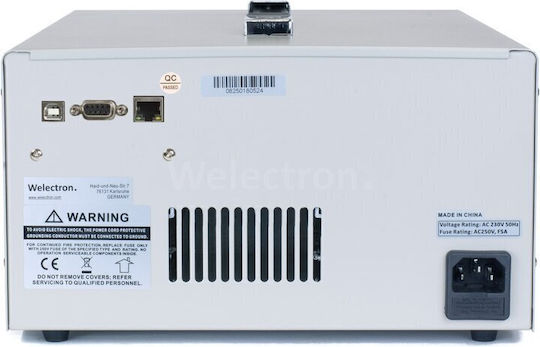

Regarding interfaces, the product is equipped with LAN, USB, and RS232, accompanied by a full set of SCPI commands, facilitating quick setup for the testing system.

Technical Specifications:

• Voltage range: 0 - 30V
• Current range: 0 - 5 A
• Load regulation: ≤ 0.01 % + 5 mV for voltage, ≤ 0.1 % + 10 mA for current
• Adjustment accuracy: ≤ 0.5 % + 20 mV for voltage, ≤ 0.5 % + 10 mA for current
• Interface: RS232, USB

Versions include case colors in gray and black with various display options. The model features secure terminal connections.
