Main Features

• LED Display
• Full compatibility with DVB-T2/DVB-T/DVB-C
• Automatic/manual channel search
• Software upgrade, media playback, and PVR via USB port
• 7-day program guide (EPG)
• Timeshift
• Multilingual menu
• Recording scheduling (PVR)
• Signal strength and quality indication
• LCN (Logical Channel Number)
• TV channel preview
• Parental control
• Timer
• Teletext
• Favorite channels list

System

• CPU: GX6706S5
• Internal memory: 32 Mb
• RAM: 512 Mb DDR2
• Input resistance: 75 Ohm
• Video resolution: 1920x1080 px
• Video format: Auto, 16:9, 4:3 LB, 4:3 PS
• Video decoder: MPEG-2, MPEG-4, H.264, H.265, AAC, HE-AAC, AC-3, DD+
• Supported formats: H.264, HEVC, MP3, MP4, MKV, JPEG, AVI
• Audio decoder: MPEG-1 Layer I/II, MPEG-2 layer I/II, AAC, AAC+/HE-AAC/AC3, Dolby plus
• Disk formatting: FAT32, NTFS

TV Receiver

• Frequency range: (VHF) 177.5~236.5 MHz; (UHF) 474~866 MHz
• Demodulation: QPSK, 16QAM, 64QAM, 256QAM
• Bandwidth: 7 MHz, 8 MHz

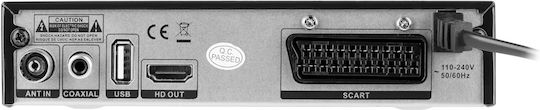

Inputs/Outputs

• SCART
• HDMI 1.4b
• 2x USB 2.0
• 1x IEC connector (ANT IN)
• COAXIAL

Power Supply

• Input voltage: 110-240 V; 50/60 Hz

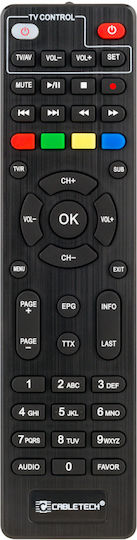

• Remote control: 2x AAA battery
• Power consumption: Max. 7.5 W
• Standby power consumption: Max. 0.5 W

Physical Parameters

• Dimensions: 167 x 94 x 35 mm
• Power cable length: 1 m
• Weight: 250 g

Package Contents

• Remote control, user manual
