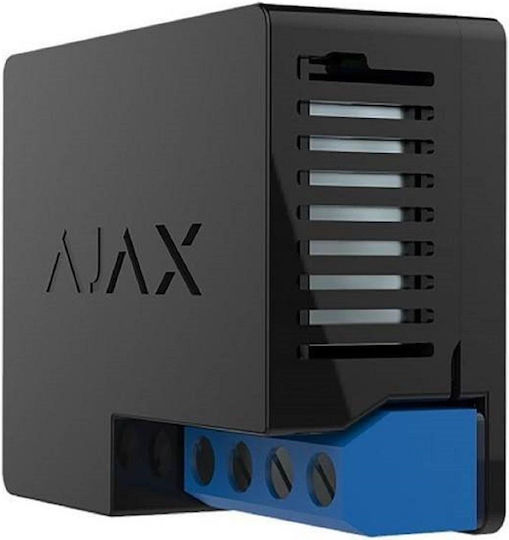

Ajax Systems Relay Smart Relay 868MHz 7÷24VDC 1 Dry Contact Load 5A 36VDC 13A 230VAC
Relays

Ajax Systems Relay Smart Relay 868MHz 7÷24VDC 1 Dry Contact Load 5A 36VDC 13A 230VAC

Ajax Relay Smart Switch 868MHz 724VDC

Ability to activate and deactivate devices remotely. Use it to control the garage door or the opening/closing of blinds.

  • Usage: Indoor
  • Controller:...

Ajax Relay Smart Switch 868MHz 724VDC

Ability to activate and deactivate devices remotely. Use it to control the garage door or the opening/closing of blinds.

  • Usage: Indoor
  • Controller: Electromagnetic relay
  • Relay lifespan: 200,000 activations
  • Power supply voltage: 7-24 V (DC only)
  • Maximum load current: 5 A at 36 V DC, 13 A at 230 V AC
  • Overcurrent...
See full description See full description
Product report

Description

Description

Ajax Relay Smart Switch 868MHz 7÷24VDC

Ability to activate and deactivate devices remotely. Use it to control the garage door or the opening/closing of blinds.

  • Usage: Indoor
  • Controller: Electromagnetic relay
  • Relay lifespan: 200,000 activations
  • Power supply voltage: 7-24 V (DC only)
  • Maximum load current: 5 A at 36 V DC, 13 A at 230 V AC
  • Overcurrent protection: No
  • Maximum temperature protection: 65°C at installation site and 85°C at relay
  • Parameter control: Yes (voltage)
  • Power consumption: Less than 1Wh
  • Communication protocol: Jeweller (868.0-868.6 MHz)
  • Wireless transmission power: 25 mW
  • Maximum distance detector – central unit (HUB): Up to 1,000 m (in open area)
  • Enclosure protection rating: IP20
  • Operating temperature: From 0°C to +64°C
  • Operating humidity: Less than 75%
  • Dimensions: 38x25x18 mm
  • Weight: 32 g

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Voltage
36.5 V
Current
5 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • marios_rellas
    5
    marios_rellas

    A bit expensive but at least it works properly, we have connected it as a siren, meaning its relay activates the power supply and operates a siren, and we have also set it up to open and close a garage door from the app

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Panagiota_Panoutsakopoulou2841

    Verified purchase

Description & Specifications

Ajax Relay Smart Switch 868MHz 7÷24VDC

Ability to activate and deactivate devices remotely. Use it to control the garage door or the opening/closing of blinds.

  • Usage: Indoor
  • Controller: Electromagnetic relay
  • Relay lifespan: 200,000 activations
  • Power supply voltage: 7-24 V (DC only)
  • Maximum load current: 5 A at 36 V DC, 13 A at 230 V AC
  • Overcurrent protection: No
  • Maximum temperature protection: 65°C at installation site and 85°C at relay
  • Parameter control: Yes (voltage)
  • Power consumption: Less than 1Wh
  • Communication protocol: Jeweller (868.0-868.6 MHz)
  • Wireless transmission power: 25 mW
  • Maximum distance detector – central unit (HUB): Up to 1,000 m (in open area)
  • Enclosure protection rating: IP20
  • Operating temperature: From 0°C to +64°C
  • Operating humidity: Less than 75%
  • Dimensions: 38x25x18 mm
  • Weight: 32 g

Manufacturer

Manufacturer Details

Warnings & Safety Information
Voltage
36.5 V
Current
5 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Reviews (2)

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • marios_rellas
    5
    marios_rellas

    A bit expensive but at least it works properly, we have connected it as a siren, meaning its relay activates the power supply and operates a siren, and we have also set it up to open and close a garage door from the app

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Panagiota_Panoutsakopoulou2841

    Verified purchase
63,00 €
14,00 €   shipping cost
