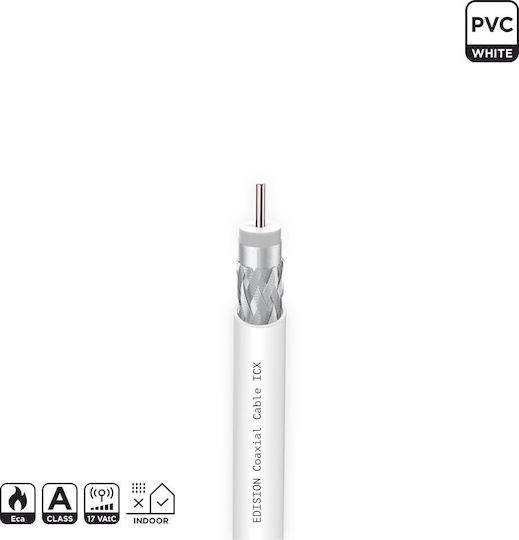

EDISION Coaxial ICX-5 CCS AL Eca PVC TV antenna cable, 5 meters long, suitable for distributing Digital Terrestrial and Satellite TV signal indoors. Ideal for extending a TV antenna cable or replacing a damaged cable, as well as for new installations. Also suitable for CCTV camera signal.

Technical specifications:

• Type: RG-6 Coaxial Cable, double shielded, 17VAtC indoor ICX-5
• Shielding Class: Class A
• CPR Class: Eca
• Central Conductor: Diameter 1.00 ± 0.02 mm, Material: Copper Clad Steel (CCS)
• Internal Dielectric Jacket: Diameter 4.7 mm, Material: Foam Polyethylene (FPE)
• Outer Jacket: Aluminum (AL) with 100% coverage
• Braid: Aluminum Mesh (AL) 16x8x0.12 mm with 77% coverage
• External Sheath: Diameter 6.6mm ± 0.10 mm, Material: White PVC
• Composite Impedance: 75 Ohm
• Minimum Bending Radius: 35mm
• Shielding: >85 dB (typ.130dB)
• Return Loss 5-862 MHz: >20 dB, 862-2150 MHz: >18 dB
• dB Losses per 1 meter:
  • 5 MHz / 0.03 dB
  • 30 MHz / 0.04 dB
  • 50 MHz / 0.05 dB
  • 200 MHz / 0.08 dB
  • 400 MHz / 0.12 dB
  • 500 MHz / 0.13 dB
  • 800 MHz / 0.17 dB
  • 860 MHz / 0.18 dB
  • 1000 MHz / 0.19 dB
  • 1350 MHz / 0.22 dB
  • 1750 MHz / 0.26 dB
  • 2050 MHz / 0.28 dB
  • 2150 MHz / 0.29 dB
• Operating ambient temperature: -30°C ... +70°C
• Application: Indoor
• Length: 5m (marked per meter)
• Weight: 0.21 kg
• Color: White

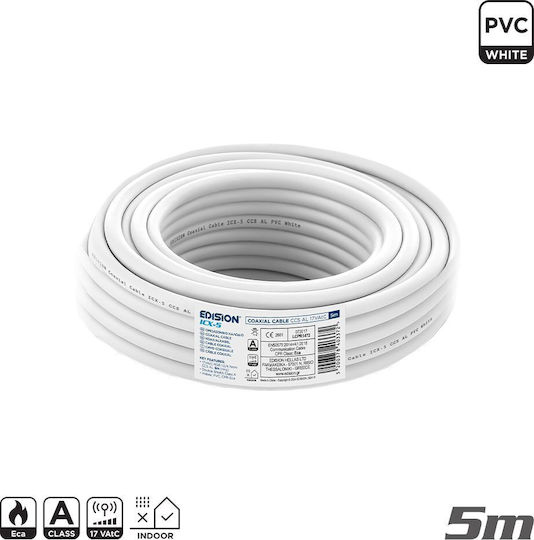

• Packaging: 5-meter Nylon Coil
• Packaging quantity: 60 pieces x 5m
