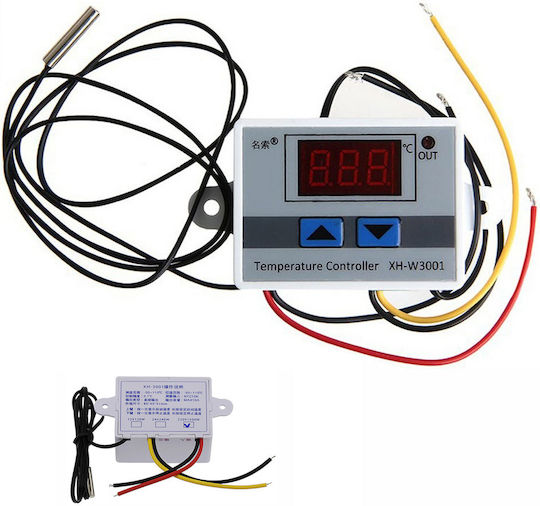

W3001 230V Temperature Control Thermostat

The W3001 temperature controller allows for the control of various electrical devices, such as: central heating pumps, water pumps, circulation pumps, and more.

A simple and reliable temperature control system that can operate in "cooling" and "heating" modes.

Technical Specifications:

• Input voltage (power supply): AC 110-230V
• Temperature measurements: -50°C - +110°C

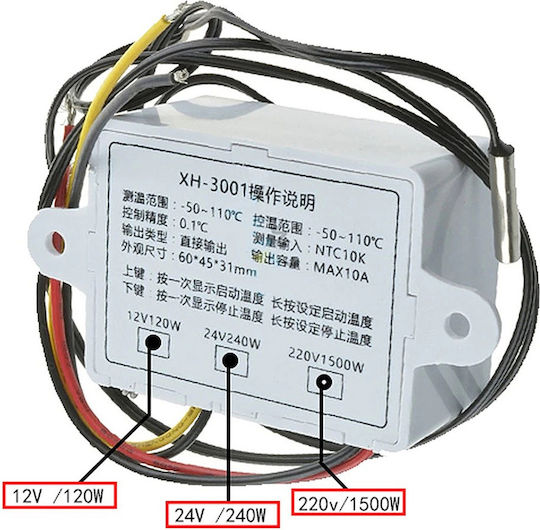

• Maximum relay load: 1500W
• Temperature measurement resolution: 0.1°C (up to 99.9°C)
• Temperature refresh rate: 0.5s
• Sensor: NTC10K
• Temperature sensor: waterproof
• Sensor cable length: 100cm
• Other cable lengths: 8-10cm

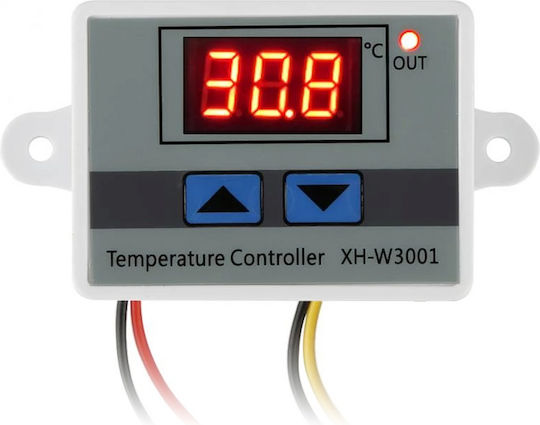

• Display: LED 3 digits
• Screen color: red
• Housing dimensions without mounting: 60 x 45 x 31 mm
• Mounting dimension: 73 mm

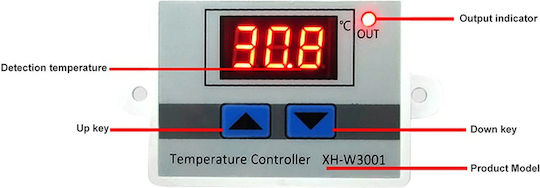

Programming:

• Setting temperature for device activation: Press and hold the ^ button for 3 seconds to enter temperature editing mode - the display will start blinking. Adjust the temperature with the ^ and ˇ buttons.
• Setting temperature for device deactivation: Press and hold the ˇ button for 3 seconds to enter temperature editing mode - the display will start blinking. Adjust the temperature with the ^ and ˇ buttons.
• To check the set activation or target temperature, press the button once.

Functions:

• Activation temperature ^START lower than deactivation temperature ˇSTOP - HEATING MODE
• Activation temperature ^START higher than deactivation temperature ˇSTOP - COOLING MODE

Red wire: power supply (black - neutral).

Yellow wire: receiver to be controlled by the thermostat (black - neutral).
