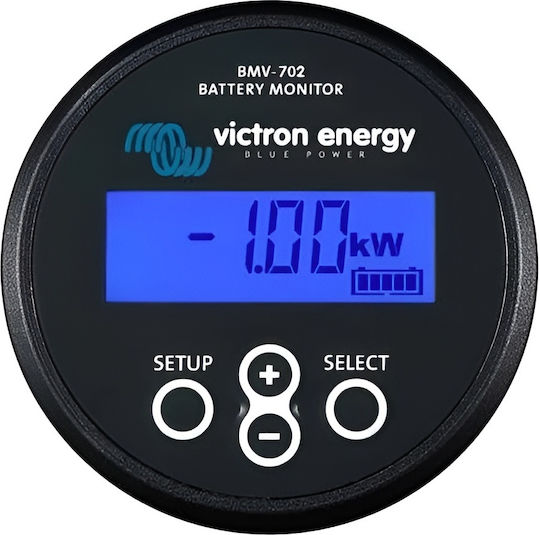

The Victron BMV-702 is a high-accuracy battery monitoring system. It calculates the amperage flowing into the battery from photovoltaic, charger, or wind generator sources, and the amperage flowing out of the battery.

Features:

• Very low consumption (0.7Ah / month).
• Remaining time with battery operation.
• VE.Direct input.
• 2nd input for measuring the voltage of a 2nd battery or temperature.
• Built-in relay that activates according to the battery voltage.

Technical specifications:

• Operating voltage: 6.5-95VDC
• Battery capacity (Ah): 20-9999Ah
• Operating temperature: -40 +50 C
• VE.Direct com.port: YES
• Relay: 60V/1A

Includes:

• Shunt 500A/50mV.
• UTP cat6 cable 10m.
• Power cables.
