Thermostat 230V Stc-1000
Central Heating Parts & Accessories

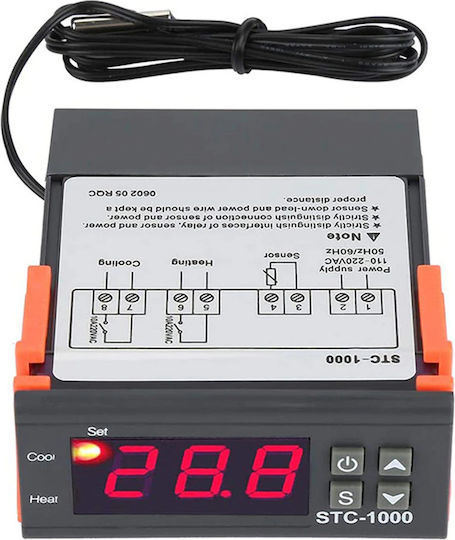

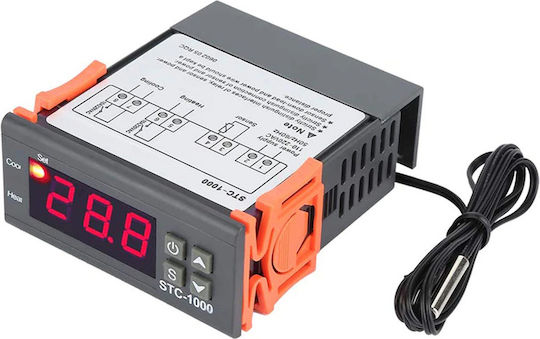

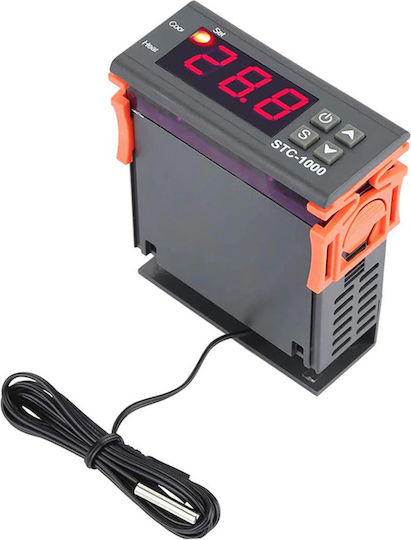

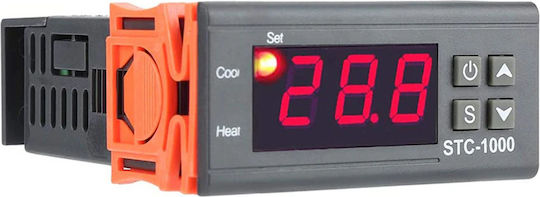

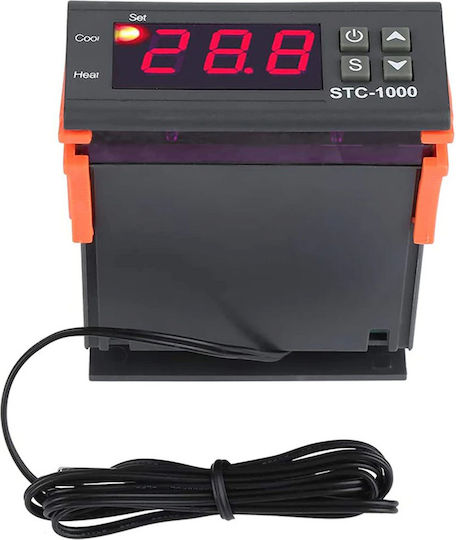

Thermostat 230V Stc-1000

The STC-1000 thermostat regulates temperature in heating or cooling mode and can be used with heating pumps, circulator pumps, and fans. The relay operates according to the set temperature and...

The STC-1000 thermostat regulates temperature in heating or cooling mode and can be used with heating pumps, circulator pumps, and fans. The relay operates according to the set temperature and hysteresis, and supports temperature calibration and compressor delay. It features an LCD and an alarm for temperature exceedance or sensor error.

  • Power supply: 220...
See Description & Specifications See Description & Specifications
21 90 €
Delivery Wed, 11 Nov - Tue, 17 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (113)
4.6 (113 reviews)
Greece
5+ pieces
See Central Heating on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The STC-1000 thermostat regulates temperature in heating or cooling mode and can be used with heating pumps, circulator pumps, and fans. The relay operates according to the set temperature and hysteresis, and supports temperature calibration and compressor delay. It features an LCD and an alarm for temperature exceedance or sensor error.

  • Power supply: 220 VAC ±10%, 50/60 Hz
  • Temperature measurement range: -50°C to 99°C
  • Measurement accuracy: ±1°C from -50°C to 70°C
  • Measurement resolution: 0.1°C
  • Temperature setting range: -50°C to 90°C
  • Sensor: NTC
  • Relay contact load: 10 A / 250 VAC for cooling and heating
  • Maximum connected load: 2.5 kW for cooling and 2.5 kW for heating
  • Sensor error delay: 1 minute
  • Operating temperature: 0°C to 60°C
  • Permissible humidity: 20% to 85%
  • Storage temperature: -30°C to 75°C
  • Dimensions: 75 × 34 × 85 mm
  • Front panel dimensions: 75 × 34 mm
  • Mounting dimensions: 70 × 27 mm
  • Sensor cable length: approximately 1 m
  • Package contents: Thermostat, temperature sensor

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Thermostat
Construction Material [Pharmaceutical]
-
Smart / WiFi
No

Technical Parameters

Thread / Cross-section
-
Power
-
Maximum Pressure
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

21,90 €
14,00 €   shipping cost
