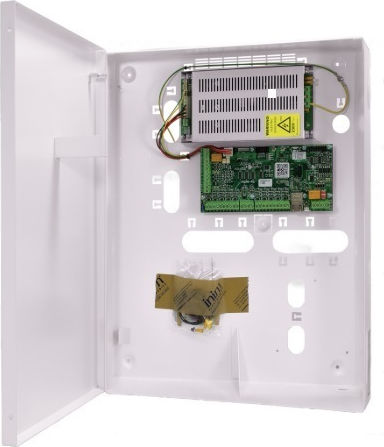

The Inim Prime 120L alarm control panel supports 10 zones and is expandable to 120, with 20 partitions. It connects to INIM Cloud and can communicate with a monitoring centre via the SIA IP protocol. It features a built-in dialler, a LAN port and a USB port.
It supports connection to KNX via iKNX, while the SmartLogos 30 is required to operate the telephone dialler. Its memory stores up to 4,000 events.
- Zones: 10, expandable to 120
- Partitions: 20
- Relay outputs: 2
- Programmable outputs: 2
- Keypads: Up to 15
- Expanders: Up to 40 per system
- nBy readers: Up to 30
- User codes: 100
- User proximity cards: 150
- Event memory: 4,000 events
- Enclosure: Metal, 37.5 × 46.6 × 9.2 mm
- Battery: 7 Ah
- Power supply: Switching, 5 A
- Certification: EN50131 Grade 3
- Wireless
- No
- Zone Capcity
- 10
- GSM
- No
