Air Compressor Heads

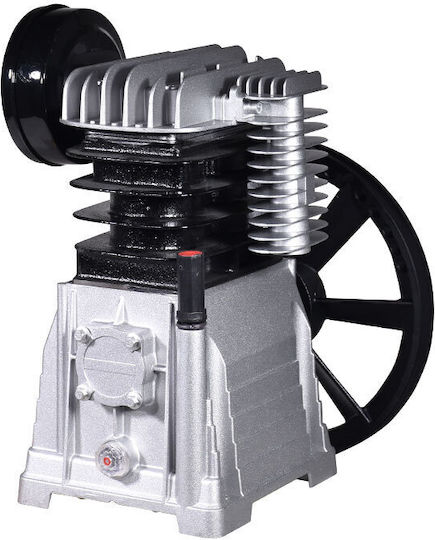

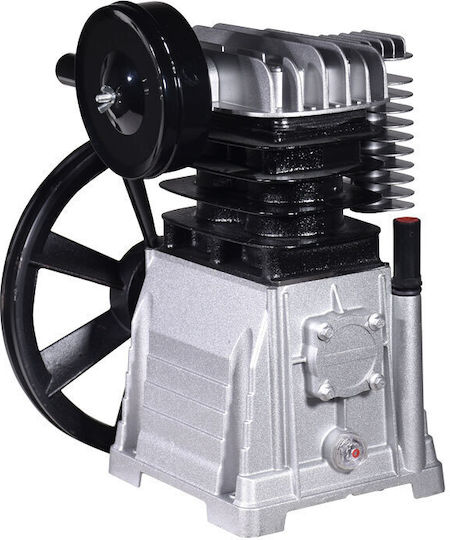

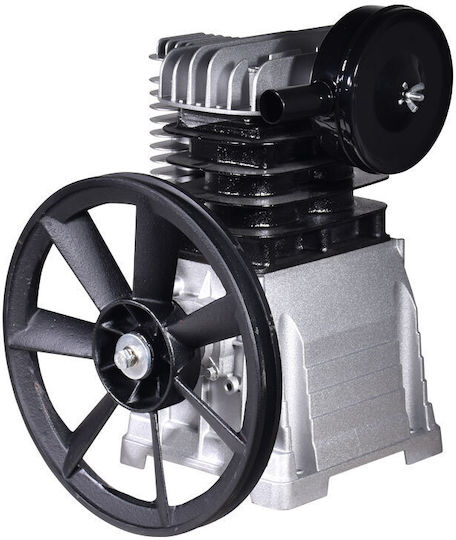

Toros Air Compressor Head 20091

The air compressor head is suitable for replacement in older air compressors of any brand. When installing, it is important to pay attention to the following:

  • Pulley diameter: Check the diameter of...

The air compressor head is suitable for replacement in older air compressors of any brand. When installing, it is important to pay attention to the following:

  • Pulley diameter: Check the diameter of the pulley of the previous motor and the flywheel. The motor's pulley and the head's flywheel affect the head's RPM. Leave a tolerance in the RPM of at least 15%...
See full description See full description

Description

Description

The air compressor head is suitable for replacement in older air compressors of any brand. When installing, it is important to pay attention to the following:

  • Pulley diameter: Check the diameter of the pulley of the previous motor and the flywheel. The motor's pulley and the head's flywheel affect the head's RPM. Leave a tolerance in the RPM of at least 15% below the MAXIMUM.
  • Oil in the sump: Add oil (SAE 15W50) to the sump before starting.
  • Flywheel rotation direction: Check that the flywheel's rotation direction is according to the arc for proper cooling of the head.
  • Tightening of the belt and fittings: Properly tighten the drive belt and the fittings of the hose that carries air to the air tank. Check the fittings for any leaks during operation.
  • Check pressure switch and check valve: Inspect the pressure switch (automatic) and the check valve internally, as well as the safety valve.

Manufacturer

See full description

Description

The air compressor head is suitable for replacement in older air compressors of any brand. When installing, it is important to pay attention to the following:

  • Pulley diameter: Check the diameter of the pulley of the previous motor and the flywheel. The motor's pulley and the head's flywheel affect the head's RPM. Leave a tolerance in the RPM of at least 15% below the MAXIMUM.
  • Oil in the sump: Add oil (SAE 15W50) to the sump before starting.
  • Flywheel rotation direction: Check that the flywheel's rotation direction is according to the arc for proper cooling of the head.
  • Tightening of the belt and fittings: Properly tighten the drive belt and the fittings of the hose that carries air to the air tank. Check the fittings for any leaks during operation.
  • Check pressure switch and check valve: Inspect the pressure switch (automatic) and the check valve internally, as well as the safety valve.

Manufacturer

Toros - Air Compressor Heads Toros
295,00 €
74,00 €   shipping cost
