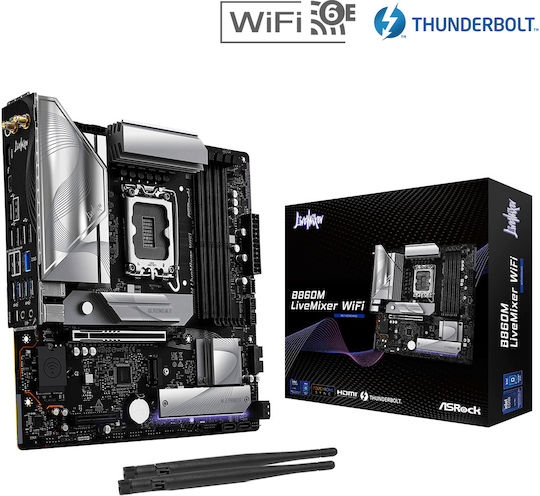

ASRock B860M LiveMixer WiFi Motherboard Micro ATX with Intel 1851 Socket
Motherboards

ASRock B860M LiveMixer WiFi Motherboard Micro ATX with Intel 1851 Socket

Key features:

  • 4 DDR5 Ram slots up to 8666+(OC)
  • For Intel Arrow Lake processors
  • Support for PCI Express 5.0 x16
  • HDMI connections
  • Slots for 4x Sata III and 3x M.2
  • 6 USB 2.0 ports, 6 USB 3.2 ports
See full description

Top specs

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

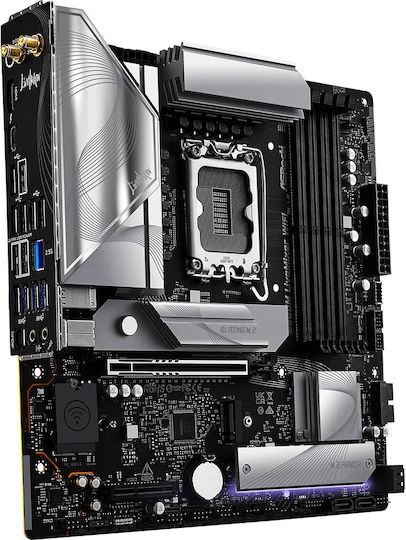

Motherboard for computers with an Intel processor, installed in socket 1851, and DDR5 memory.

Features:

  • Supports up to 3 M.2 type SSD storage units.
  • Supports 4 storage units with SATA III 6GB/s connection.
  • 1 PCI Express 5.0 slot for connecting graphics cards and other expansions.

Live Mix. Life Max

LiveMixer is designed by today's generation of content creators who need motherboards with extensive connectivity for streaming and other auxiliary devices. Additionally, its reliable performance allows us to deliver great content and economically manage our time.

Multiple Streaming Devices

Avermedia: We tested many video capture devices with different interfaces to provide the most stable system for content creators.

  • GC553
  • GC573
  • Bu113
  • GC311
  • GC570D
  • GC570

Elgato: We tested many video capture devices with different interfaces to provide the most stable system for content creators.

  • HD60 S+

Capacitor 20K

Exclusive Cap 20K with 1000uF capacity

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, offering many benefits:

  • Higher capacitance: Greater charge storage for better support at high loads.
  • Lower ripple: Reduced power output fluctuations, improving quality.
  • More stable output current: Steady power supply, minimizing voltage impacts.
  • Better performance and system stability: Increased reliability and consistent performance.

10+1+1 Power Phase Design

It features durable components and an absolutely smooth power supply to the CPU. Additionally, it offers unparalleled overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers.

Dr. MOS

Dr.MOS is the integrated power stage solution optimized for modern voltage buck-set applications! Compared to traditional discrete MOSFETs, it intelligently provides higher current for each phase, thus offering improved thermal performance and superior performance.

High-Density Power Connector

CPU overclocking requires higher current. ASRock's Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power plugs, providing a more stable system and reducing the risk of fire during intense overclocking.

Support for DDR5 XMP & EXPO

ASRock, which originates from the design concept "built for stable and reliable", makes no compromises on any detail. This motherboard is made with high-quality materials, and enthusiastic users can enjoy boosting DDR5 memory overclocking performance by enabling the pre-tested profiles. Ensure that the memory modules are capable of Intel® XMP/AMD EXPO™ and overclocking can be made so accessible, satisfying, and sweat-free.

PCIe Gen5 Blazing M.2

Blazing M.2 hosts the latest PCI Express 5.0 standard for double the bandwidth compared to the previous generation, with an amazing transfer speed of 128Gb/s, it is ready to unleash the full potential of future ultra-fast SSDs.

M.2 Heatsink Toolless Design

Apart from the tool-free design of the M.2 SSD motherboard, ASRock has taken it up a notch by introducing this industry-first M.2 heatsink quick release mechanism on the motherboard. The user-friendly tool-free design makes the installation of the M.2 SSD extremely easy and straightforward.

M.2 Bottom Heatsink

The M.2 bottom heatsink is capable of effectively dissipating the heat of the M.2 SSD through the motherboard's board, maximizing performance while maintaining system stability.

Aluminum cooler

The first thing that catches the eye is the optimized design of the aluminum heatsink. Heatsinks are vital for efficient heat dissipation, especially during heavy workloads such as gaming or productivity tasks. Motherboards built with heatsinks can effectively manage thermal performance and, therefore, effortlessly ensure system stability and durability.

Up to 22 USB Ports (front + rear)

Featuring 22 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.

Wi-Fi 6E 802.11axe

WiFi 6E technology has expanded into the entire new 6GHz spectrum band, providing more WiFi capabilities and delivering even better and faster internet traffic. In addition to providing higher speeds, WiFi 6E also enhances lower latency and supports service levels equivalent to 5G networks.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology offers speed and flexibility in the most advanced USB Type-C, providing a fast and simple level of connectivity for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external displays, Thunderbolt™ devices, and USB with a single Thunderbolt 4 cable.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Core Ultra 5, Core Ultra 7, Core Ultra 9
Supported CPU Generation
Arrow Lake
Socket
1851

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B860

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
5600, 5800, 6000, 6200, 6400, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC, 7800OC, 8000OC, 8200OC, 8400OC, 8666OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

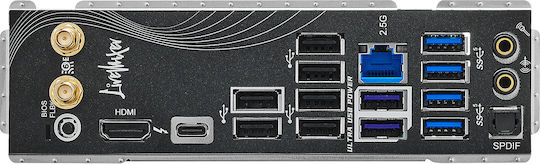

Rear USB-A outputs
6 USB 2.0 Ports, 6 USB 3.2 Ports
Rear USB-C outputs
1 Thunderbolt 4 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
Wi-Fi/Bluetooth
Yes
Wi-Fi Generation
Wi-Fi 6
Extra
-

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Core Ultra 5, Core Ultra 7, Core Ultra 9
Supported CPU Generation
Arrow Lake
Socket
1851

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B860

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
5600, 5800, 6000, 6200, 6400, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC, 7800OC, 8000OC, 8200OC, 8400OC, 8666OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
6 USB 2.0 Ports, 6 USB 3.2 Ports
Rear USB-C outputs
1 Thunderbolt 4 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
Wi-Fi/Bluetooth
Yes
Wi-Fi Generation
Wi-Fi 6
Extra
-

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

Motherboard for computers with an Intel processor, installed in socket 1851, and DDR5 memory.

Features:

  • Supports up to 3 M.2 type SSD storage units.
  • Supports 4 storage units with SATA III 6GB/s connection.
  • 1 PCI Express 5.0 slot for connecting graphics cards and other expansions.

Live Mix. Life Max

LiveMixer is designed by today's generation of content creators who need motherboards with extensive connectivity for streaming and other auxiliary devices. Additionally, its reliable performance allows us to deliver great content and economically manage our time.

Multiple Streaming Devices

Avermedia: We tested many video capture devices with different interfaces to provide the most stable system for content creators.

  • GC553
  • GC573
  • Bu113
  • GC311
  • GC570D
  • GC570

Elgato: We tested many video capture devices with different interfaces to provide the most stable system for content creators.

  • HD60 S+

Capacitor 20K

Exclusive Cap 20K with 1000uF capacity

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, offering many benefits:

  • Higher capacitance: Greater charge storage for better support at high loads.
  • Lower ripple: Reduced power output fluctuations, improving quality.
  • More stable output current: Steady power supply, minimizing voltage impacts.
  • Better performance and system stability: Increased reliability and consistent performance.

10+1+1 Power Phase Design

It features durable components and an absolutely smooth power supply to the CPU. Additionally, it offers unparalleled overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers.

Dr. MOS

Dr.MOS is the integrated power stage solution optimized for modern voltage buck-set applications! Compared to traditional discrete MOSFETs, it intelligently provides higher current for each phase, thus offering improved thermal performance and superior performance.

High-Density Power Connector

CPU overclocking requires higher current. ASRock's Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power plugs, providing a more stable system and reducing the risk of fire during intense overclocking.

Support for DDR5 XMP & EXPO

ASRock, which originates from the design concept "built for stable and reliable", makes no compromises on any detail. This motherboard is made with high-quality materials, and enthusiastic users can enjoy boosting DDR5 memory overclocking performance by enabling the pre-tested profiles. Ensure that the memory modules are capable of Intel® XMP/AMD EXPO™ and overclocking can be made so accessible, satisfying, and sweat-free.

PCIe Gen5 Blazing M.2

Blazing M.2 hosts the latest PCI Express 5.0 standard for double the bandwidth compared to the previous generation, with an amazing transfer speed of 128Gb/s, it is ready to unleash the full potential of future ultra-fast SSDs.

M.2 Heatsink Toolless Design

Apart from the tool-free design of the M.2 SSD motherboard, ASRock has taken it up a notch by introducing this industry-first M.2 heatsink quick release mechanism on the motherboard. The user-friendly tool-free design makes the installation of the M.2 SSD extremely easy and straightforward.

M.2 Bottom Heatsink

The M.2 bottom heatsink is capable of effectively dissipating the heat of the M.2 SSD through the motherboard's board, maximizing performance while maintaining system stability.

Aluminum cooler

The first thing that catches the eye is the optimized design of the aluminum heatsink. Heatsinks are vital for efficient heat dissipation, especially during heavy workloads such as gaming or productivity tasks. Motherboards built with heatsinks can effectively manage thermal performance and, therefore, effortlessly ensure system stability and durability.

Up to 22 USB Ports (front + rear)

Featuring 22 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.

Wi-Fi 6E 802.11axe

WiFi 6E technology has expanded into the entire new 6GHz spectrum band, providing more WiFi capabilities and delivering even better and faster internet traffic. In addition to providing higher speeds, WiFi 6E also enhances lower latency and supports service levels equivalent to 5G networks.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology offers speed and flexibility in the most advanced USB Type-C, providing a fast and simple level of connectivity for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external displays, Thunderbolt™ devices, and USB with a single Thunderbolt 4 cable.

Manufacturer

Manufacturer Details

Warnings & Safety Information
