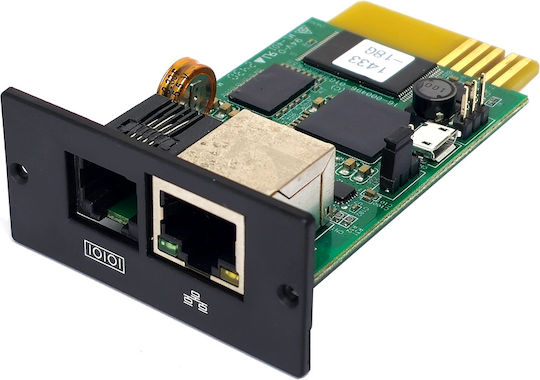

POWERTECH SNMP web manager card PT-1364 for UPS

The SNMP card PT-1364 from POWERTECH enables the connection of UPS units to the internet for remote management and monitoring through specialized software.

Compatible UPS: PT-1357, PT-1358, PT-1359, PT-1360

Technical specifications:

• Protocol Support: TCP/IP, UDP, SNMP-V1, SNMP-V2, SNMP-V3, HTTP, HTTPS, SMTP, IPv4/IPv6, SSL, SSH, TLS, SNTP
• UPS Slot Type: Golden Finger
• Network Support: RJ45 10/100/1000BaseT
• Supported MIB: RFC1213, RFC1628, RFC43943
• LED: 10 LAN: Yellow off, 100 LAN: Yellow on, 1000 LAN: Yellow flash
• Supported OS: Windows family, Linux and MAC
• Supported Extension Devices: Environmental monitoring device, Temperature and humidity sensor, Two dry contacts
• Data Log: 6,800,000 threads
• Event Log: 6,800,000 threads
• Power Consumption: 1.4 watt (max.)
• Operating Temperature: 0 ~ 50 °C
• Operating Humidity: 0 ~ 95%
• Dimension (DxWxH): 79 x 52 x 25mm

Package contents:

• SNMP card
• CD with management software
• User manual
