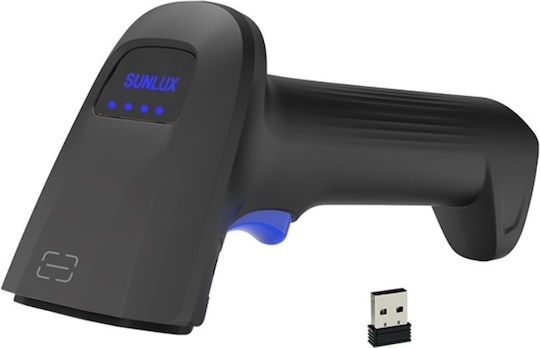

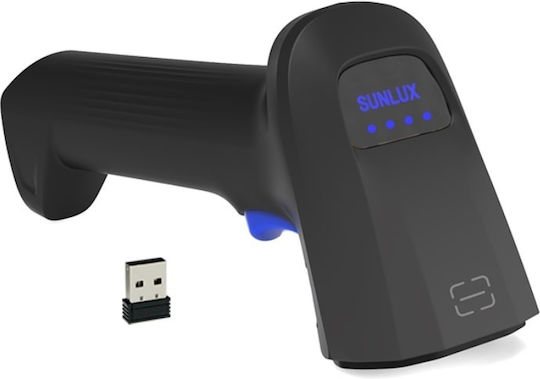

The Sunlux RW-10 is a wireless handheld scanner that reads 1D and 2D barcodes, including QR Code and GS1 Data Matrix ECC200. Plug and Play functionality requires no driver installation, while the LED indicator and audible alert provide scan feedback. The transmission range in open space reaches up to 100 m via 2.4G and up to 40 m via Bluetooth.
The sensor scans at 60 FPS with a resolution of 640 × 480 dpi. The scanner features a 32-bit ARM processor, a pistol-grip handle with trigger, and a battery that charges in 4.5 hours and supports up to 27 hours of operation.
- Type: Handheld scanner
- Reading technology: Area Imager (2D)
- Connectivity: Wireless, 2.4G and Bluetooth
- Supported 1D barcodes: Codabar, Code 11, Code39, Code32, Interleaved 2 of 5, Matrix 2 of 5, Code93, Code 128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, ISBN, ISSN, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, MSI, Standard 28, Plessey
- Supported 2D barcodes: PDF417, Micro PDF417, QR Code, Data Matrix, Aztec Code, Hanxin Code, Maxicode
- Scanning speed: 60 FPS
- Resolution: 640 × 480 dpi
- Processor: 32-bit ARM
- Scanning accuracy: > 3 mil
- Depth of field: 60–300 mil
- Contrast: > 15%
- Transmission range in open space: Up to 100 m via 2.4G and up to 40 m via Bluetooth
- Indicators: White illumination LED, red aiming LED and audible alert
- Trigger: Pistol-grip handle with trigger
- Interfaces: USB-HID, USB-VCP
- Power supply: 4.75–14 VDC
- Battery: 2200 mAh
- Charging time: 4.5 hours
- Operating time: Up to 27 hours
- Operation: Plug and Play, no driver installation required
- Product Number
- BAR-SCAN-RW10
- Connectivity
- Wireless
- Scanner Type
- Handheld Scanner
- Readability
- Area Imager (2D)
