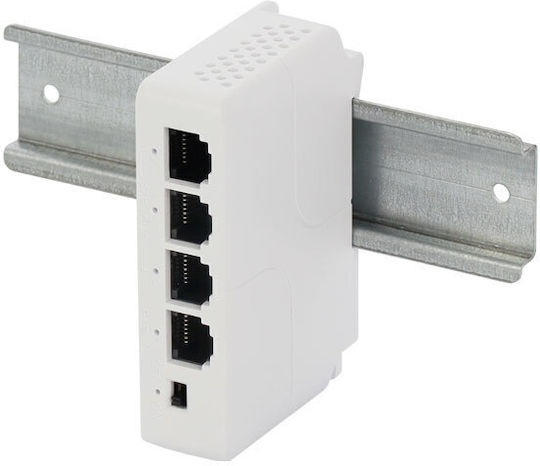

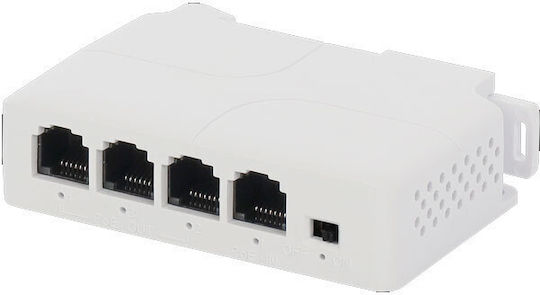

The Pulsar EXT-POE3DIN PoE repeater extends Ethernet data and PoE power transmission by up to 100 m and allows the connection of up to three IP devices, such as cameras. It is powered by a PoE switch or another compatible device and mounts on a DIN rail. It supports IEEE 802.3af/at standards and automatic link speed negotiation.

• Type: PoE repeater
• Standards: IEEE 802.3af/at
• Input voltage: 48–57 V DC
• Output voltage: 48 V
• Ports: 4 (1 PoE input and 3 PoE outputs)
• Ethernet speed: 10/100 Mbps
• Maximum transmission distance: 100 m
• Protection: Overload and short-circuit protection, with automatic recovery after a fault
• Recommended cable: UTP CAT.5e or higher
• Mounting: DIN rail
• Dimensions: 50 x 23 x 81 mm
