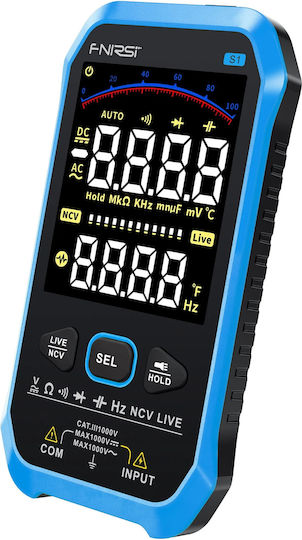

The Fnirsi S1 digital multimeter measures AC and DC voltage, resistance, capacitance, frequency, and temperature. True RMS supports accurate measurements, while the LCD displays up to 10,000 counts and offers resolution from 0.001 V to 1 V.

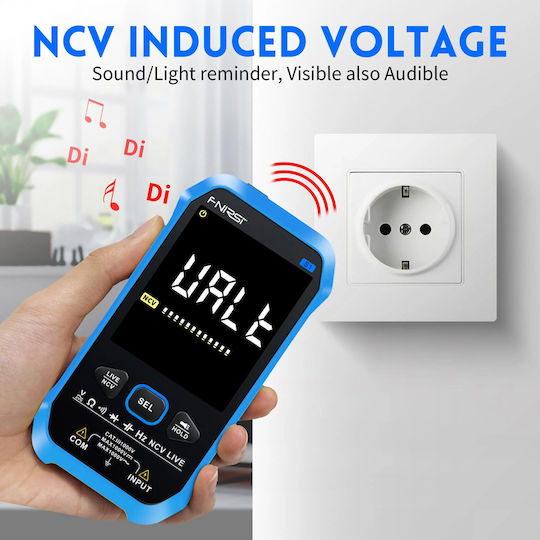

It includes non-contact voltage detection (NCV), continuity testing with a buzzer, diode testing, and live wire detection. It measures automatically and features a flashlight and data hold. The rechargeable lithium-ion battery charges via USB-C.
- Measurements: AC and DC voltage, resistance, capacitance, frequency, and temperature
- DC voltage range: 0–1000 V
- DC voltage accuracy: ±(0.8%+3) for 0–1000 V, ±(1.2%+3) for 1000 V
- AC voltage range: 0–1000 V
- AC voltage accuracy: ±(0.8%+3) for 0–1000 V, ±(1.2%+3) for 1000 V
- Resistance range: 0–1 MΩ, 1–100 MΩ
- Resistance accuracy: ±(0.8%+3) for 0–1 MΩ, ±(1.2%+3) for 1–100 MΩ
- Capacitance range: 0–10 mF
- Capacitance accuracy: ±(4.5%+5)
- Frequency range: 0–1000 kHz
- Frequency accuracy: ±(1%+3)
- Temperature range: -20–1000 °C
- Temperature accuracy: ±(5%+4) from -20 to 0 °C, ±(1%+3) from 1 to 400 °C, ±(2%+5) from 401 to 1000 °C

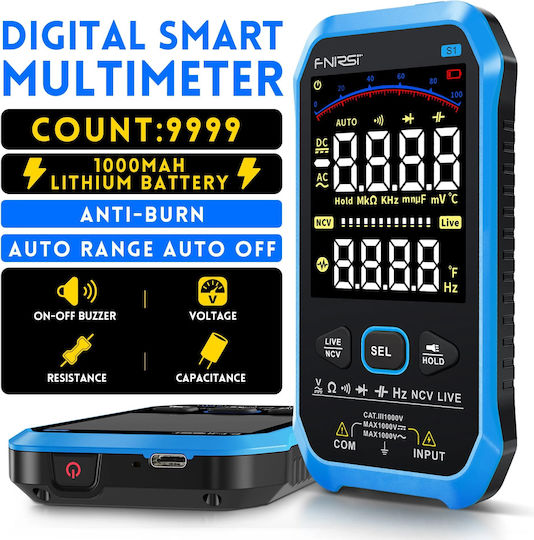

- Display: LCD, 10,000 counts
- True RMS: Yes
- Automatic measurement: Yes
- NCV detection: Yes
- Live wire detection: Yes
- Diode test: Yes
- Continuity test: Yes
- Buzzer: Yes
- Data hold: Yes
- Flashlight: Yes
- Safety category: CAT III 1000 V

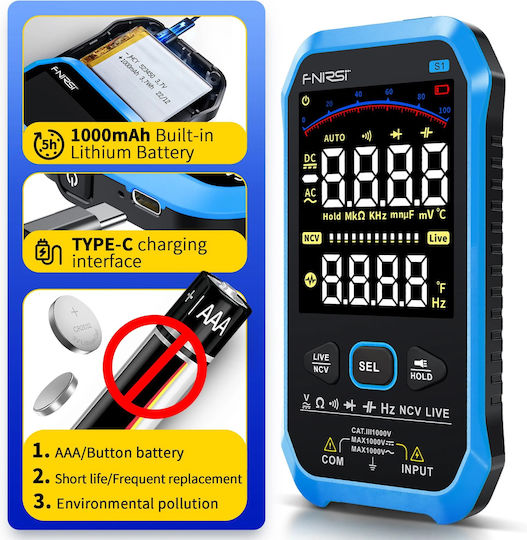

- Battery: 1000 mAh rechargeable lithium battery
- Charging port: USB-C
- Dimensions: 143 × 75 × 19 mm
- Weight: 130 g

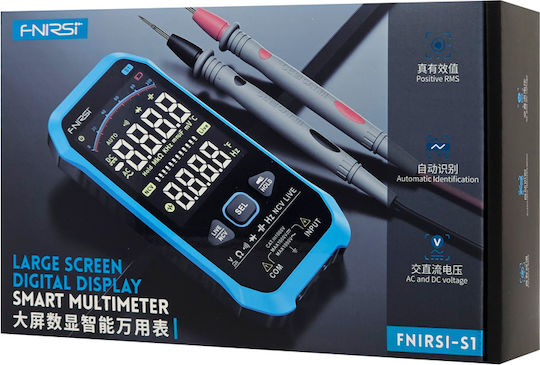

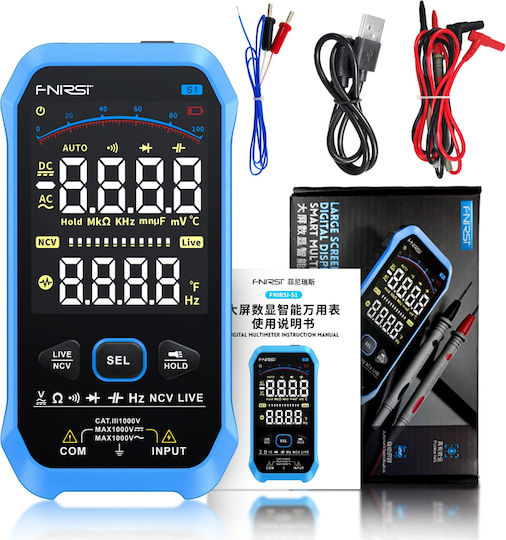

- Package contents: Multimeter, multimeter probes, USB to USB-C cable, and user manual
- with LCD Screen
- Yes
- True RMS
- Yes
- with Buzzer
- Yes
