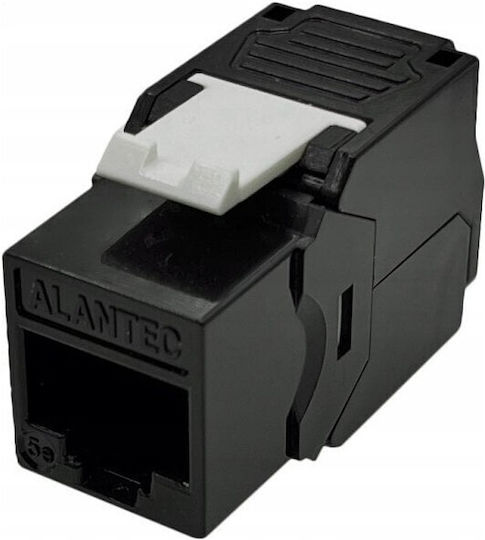

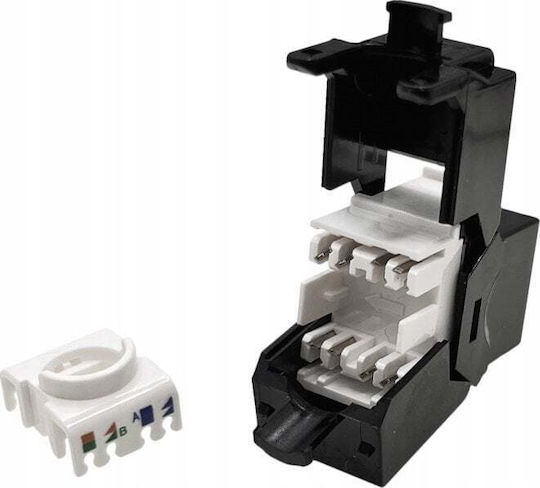

A-LAN Keystone RJ45 Cat.5e 1τμχ

The A-LAN Cat.5e RJ45 keystone is a tool-free UTP module for creating connection points and patch fields in telecommunications installations. Its slim design is compatible with most adapters and...

The A-LAN Cat.5e RJ45 keystone is a tool-free UTP module for creating connection points and patch fields in telecommunications installations. Its slim design is compatible with most adapters and allows installation in confined spaces, empty patch panels and wall-mounted boxes.

  • Port type: RJ45
  • Cabling type: UTP
  • Network category: Cat.5e
  • Class: D
  • Standard...
See full description See full description
3 51 €
Delivery Wed, 25 Nov - Tue, 01 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (118)

Learn more about invoicing

Description

Description

The A-LAN Cat.5e RJ45 keystone is a tool-free UTP module for creating connection points and patch fields in telecommunications installations. Its slim design is compatible with most adapters and allows installation in confined spaces, empty patch panels and wall-mounted boxes.

  • Port type: RJ45
  • Cabling type: UTP
  • Network category: Cat.5e
  • Class: D
  • Standard frequency: 100 MHz
  • Maximum frequency: 250 MHz
  • Speed: Up to 1 Gb/s
  • Design: Slim (SLIM), tool-free
  • Housing: Thermoplastic ABS, UL 94 V-0
  • Contacts: Phosphor bronze with 1.25 μm gold plating over a 2.5 μm nickel layer
  • Contact force: 100 g per contact
  • Disconnection force: 50 N for 60 s
  • Wiring sequence: 568A/B
  • Supported conductors: 22–24 AWG
  • PCB: 1.6 mm thick FR4 laminate
  • Maximum current: 1.5 A
  • Insulation resistance: 500 MΩ @ 100 Vdc
  • Voltage withstand: 1000 Vac RMS @ 60 Hz for 60 s
  • Contact resistance: 20 mΩ
  • IDC blade resistance: 2.5 mΩ
  • PoE support: PoE+ (Type 2), IEEE 802.3at 30 W
  • Durability: More than 750 cycles according to the standard and more than 1000 cycles in testing
  • Operating temperature: -10 °C to +60 °C
  • Storage temperature: -40 °C to +70 °C
  • Maximum humidity: Approximately 90%
  • Quantity: 1
