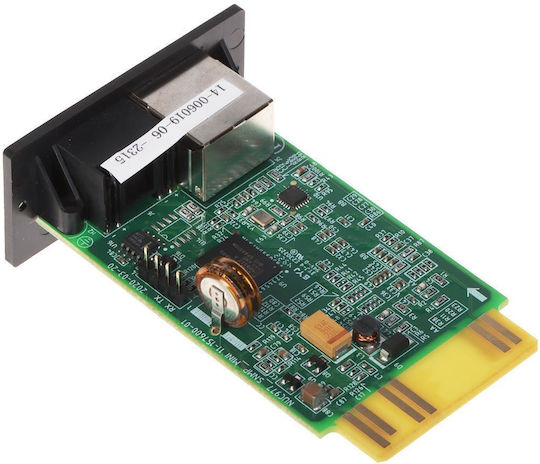

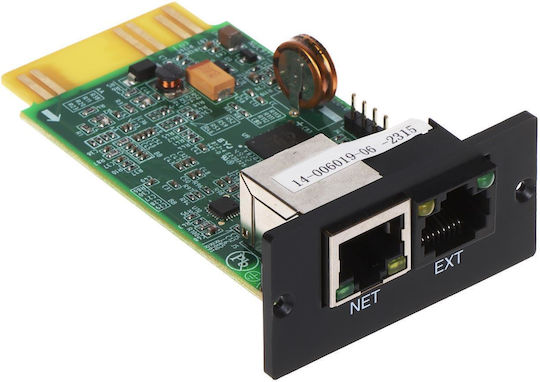

NG SNMP CARD FOR ON-LINE UPS

The IDA-ST200P SNMP card with advanced iStars software is an ideal solution for UPS communication, monitoring, and management.

• LAN Interface: 2 x 10/100 Mbps
• Management: Cooperation with the iSTAR application
• Built-in Web Server
• MIB Support: RFC1628
• Power Supply: 9 ... 28 V
• Application: All On-line UPS units with an expansion slot
• Main Features:
• Real-time UPS data graphs (voltage, frequency, load level, battery level)
• Storage of old records in a central PC database
• Remote software update
• Remote management with password access protection
• Operating Temperature / Relative Humidity: 0 °C ... 50 °C / 10 ... 90 % (non-condensing)
• Dimensions: 81 x 42 x 25 mm
