Gt-tl2 Lnb Twin
LNB

Gt-tl2 Lnb Twin Code: 27-00-0012

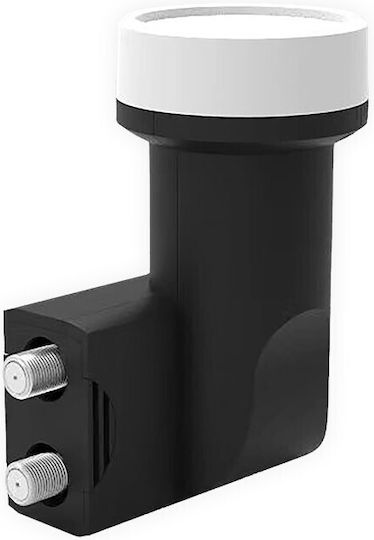

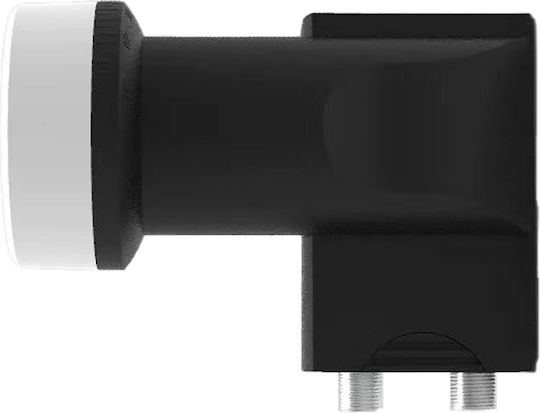

LNB GT-TL2 LNB TWIN, two outputs. For distributing one satellite to 2 satellite receivers. Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band...

LNB GT-TL2 LNB TWIN, two outputs. For distributing one satellite to 2 satellite receivers. Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 57dB (minimum)
  • Low Noise Figure: 0.1 dB
  • Output connector: F type, 75Ω female
  • L.O. frequency low band:...
See full description See full description
Review the product
Product report

Description

Description

LNB GT-TL2 LNB TWIN, two outputs. For distributing one satellite to 2 satellite receivers. Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 57dB (minimum)
  • Low Noise Figure: 0.1 dB
  • Output connector: F type, 75Ω female
  • L.O. frequency low band: 9.75 GHz, high band: 10.6 GHz
  • L.O. frequency stability: ± 0.5 MHz
  • DC consumption: 140mA
  • Operating voltage: Vertical: 11...14 Vdc, Horizontal: 16...20 Vdc
  • Band switching: Low band: 0 Hz, High band: 22 KHz ± 4KHz
  • Storage ambient temperature: -20°C ... +70°C
