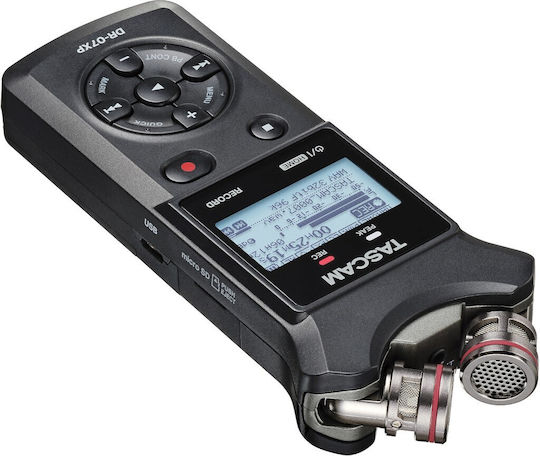

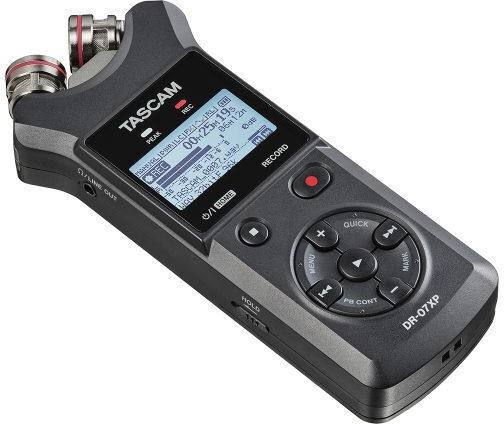

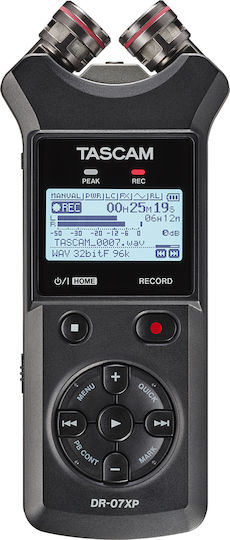

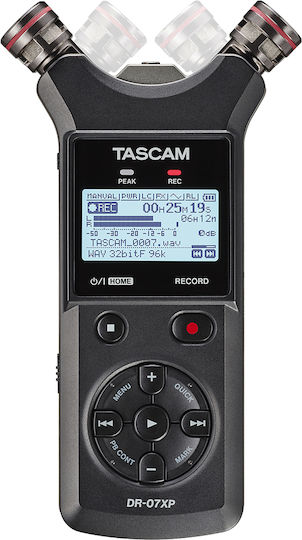

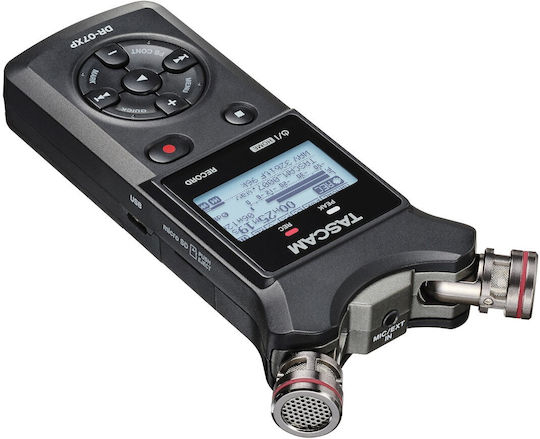

The Tascam DR-07XP portable recorder captures audio on two channels using stereo condenser microphones that can be positioned in A/B or X/Y configurations. It supports 32-bit float, 24-bit and 16-bit recording at sample rates of 96 kHz, 48 kHz and 44.1 kHz, as well as MP3 recording. 32-bit float recording does not require input level adjustment.
The backlit LCD and one-handed operation make it easy to navigate and start recording. It can function as a 2-in/2-out USB-C audio interface for connection to a computer, while the tripod socket and Auto Tone output make it suitable for video recording.
- Type: Portable audio recorder
- Channels: 2
- Microphones: Built-in stereo condenser microphones, with A/B or X/Y configurations
- Maximum microphone sound pressure level: 125 dB SPL
- Recording formats: 32-bit float, 24-bit, 16-bit and MP3
- Sample rates: 96 kHz, 48 kHz and 44.1 kHz
- Audio interface: USB-C, 2-in/2-out
- Inputs: Stereo mini jack for external microphones with plug-in power and stereo line input
- Outputs: Stereo mini line/headphone output and Auto Tone output for DSLR
- Supported cards: microSDXC up to 512 GB
- Recording functions: Automatic recording, timer and pre-recording
- Recording features: Overdubbing, limiter and peak reduction
- Low-cut filter: 3 levels: 40 Hz, 80 Hz and 120 Hz
- Built-in functions: Reverb, chromatic tuner, marker function and playlist
- Variable-speed playback: 0.5–2.0×, in 0.1 increments
- Display: Backlit LCD, 128 × 64
- Speaker: Built-in mono
- Tripod socket: Yes
- Batteries: 2 AA, up to 17.5 hours of continuous use
- Menus: ENG, FRA, DEU, ITA, ESP, RUS, PRT, JPN, CHI and KOR
- Dimensions with microphones folded: 68 × 159.6 × 27.0 mm
- Dimensions with microphones extended: 90.3 × 159.6 × 27.0 mm
- Weight: 184 g with batteries
- Product Number
- DR-07XP
Product Details
- Type
- Portable
- Accessory Pack
- -
Technical Specifications
- Channels
- Stereo
- Built-in Microphone
- Yes
- Microphone Inputs
- -
Connections
- Mini Jack (3.5mm)
- -
- Jack (6.3mm)
- -
- USB
- Yes
- XLR
- -
- RCA
- -
Power Source
- Phantom Power
- No
- Battery
- No
- Power
- No
- USB Power
- No
