Reletek Automatic Staircase Timer 0.5-20min 230VAC Rs-tsl Reletek Pieces:2
Time-Lag Switches

Reletek Automatic Staircase Timer 0.5-20min 230VAC Rs-tsl Reletek Pieces:2 Code: 03.064.0011

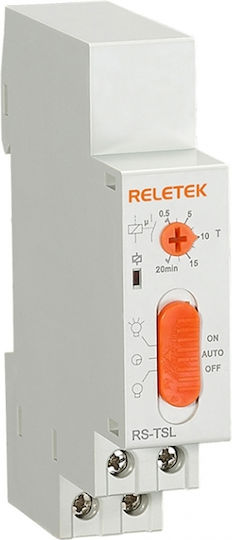

RELETEK RS-TSL Automatic Staircase Timer 0.5-20min 230VAC

The staircase lighting timer is used to control lighting in corridors or staircases. When the system is activated, it turns on for the time...

RELETEK RS-TSL Automatic Staircase Timer 0.5-20min 230VAC

The staircase lighting timer is used to control lighting in corridors or staircases. When the system is activated, it turns on for the time set by the user and then automatically turns off.

See full description See full description

User Manual

Review the product
Product report

Description

Description

RELETEK RS-TSL Automatic Staircase Timer 0.5-20min 230VAC

The staircase lighting timer is used to control lighting in corridors or staircases. When the system is activated, it turns on for the time set by the user and then automatically turns off.

Technical Specifications:

  • Supply terminals: A1,A2
  • Supply voltage: AC/DC 24-240V
  • Rated frequency: 50/60Hz
  • Time range: 0.1s-10 days
  • Setting accuracy: <5%
  • Repetition accuracy: <0.2%
  • Output contacts: 2C/0
  • Current rating: 8A/AC1
  • Contacts capacity: 250V
  • Protection degree: IP20
  • Pollution degree: 3
  • Electrical life: 105
  • Mechanical life: 106
  • Altitude: ≤2000m
  • Ambient temperature: -5℃~+40℃
  • Storage temperature: -10℃~+50℃
  • Wire size: 0.5mm~1 mm
  • Torque: 0.5Nm
  • Mounting: TH-35 DIN-Rail

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Product Number
03.064.0011
Maximum Preset Time
20 min

Maximum Preset Time

The maximum time interval for adjustment (in minutes) during which the connected lights remain on in the hallways or stairs of a residence.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

RELETEK RS-TSL Automatic Staircase Timer 0.5-20min 230VAC

The staircase lighting timer is used to control lighting in corridors or staircases. When the system is activated, it turns on for the time set by the user and then automatically turns off.

Technical Specifications:

  • Supply terminals: A1,A2
  • Supply voltage: AC/DC 24-240V
  • Rated frequency: 50/60Hz
  • Time range: 0.1s-10 days
  • Setting accuracy: <5%
  • Repetition accuracy: <0.2%
  • Output contacts: 2C/0
  • Current rating: 8A/AC1
  • Contacts capacity: 250V
  • Protection degree: IP20
  • Pollution degree: 3
  • Electrical life: 105
  • Mechanical life: 106
  • Altitude: ≤2000m
  • Ambient temperature: -5℃~+40℃
  • Storage temperature: -10℃~+50℃
  • Wire size: 0.5mm~1 mm
  • Torque: 0.5Nm
  • Mounting: TH-35 DIN-Rail

Manufacturer

Manufacturer Details

Warnings & Safety Information

Product Guides

User Manual

Product Number
03.064.0011
Maximum Preset Time
20 min

Maximum Preset Time

The maximum time interval for adjustment (in minutes) during which the connected lights remain on in the hallways or stairs of a residence.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
