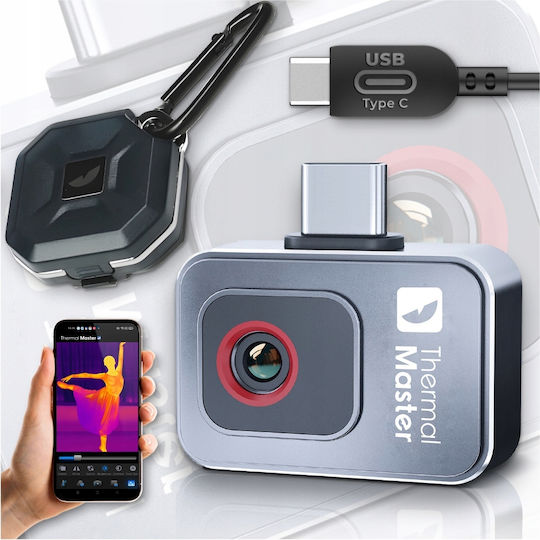

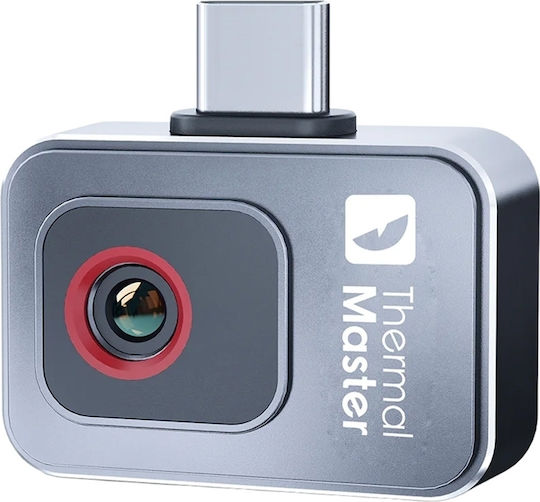

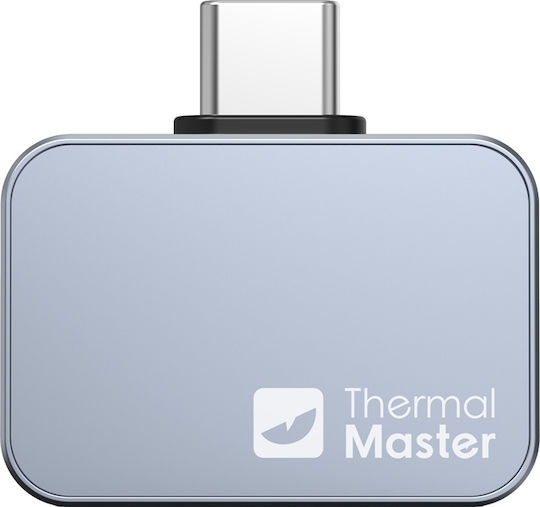

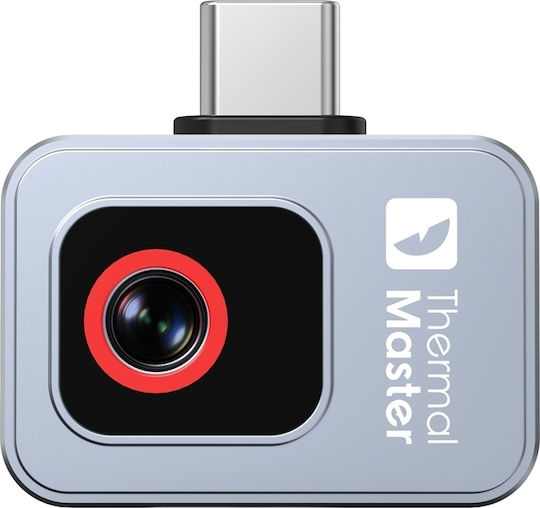

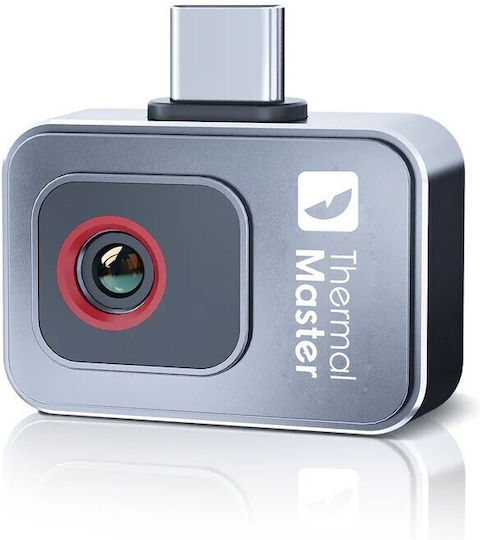

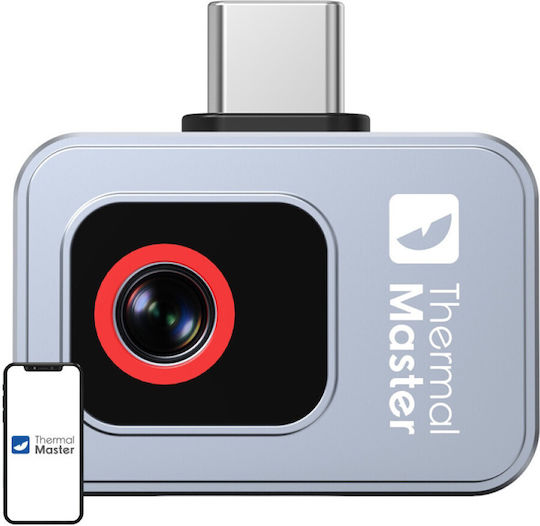

Master P2 Handheld Thermal Camera for Mobile Android
Handheld Thermal Cameras

Master P2 Handheld Thermal Camera for Mobile Android

Key features:

  • IR resolution 256x192 (X³IR 512x384)
  • Measurement range -20°C to 600°C
  • Weight 10g & USB-C connection
  • Advanced Temp Master app

Turn your smartphone into a professional diagnostic tool with Razor X technology and the IR resolution of the Thermal Master P2.

See full description
Review the product
Product report

Description

Description

At a glance

  • IR resolution 256x192 (X³IR 512x384): Provides detailed imaging with Razor X algorithm for observing small components.
  • Measurement range -20°C to 600°C: High accuracy of ±1.5°C with IQ+ algorithms for diagnostics in electronics and HVAC.
  • Weight 10g & USB-C connection: Extremely compact design with minimal 0.3W power consumption directly from the device.
  • Advanced Temp Master app: Features 12 color palettes, point/line/area measurements, and PIP function.

High-Definition Imaging Razor X

Reveal every thermal detail on your mobile screen thanks to Razor X Ultra Clear technology. The 256×192 pixel sensor is interpolated through the X³IR system to 512×384 pixels, allowing you to detect even tiny 0.25mm resistors on PCB boards. With 15x digital zoom, you can scan large surfaces or focus on critical components with absolute clarity.

Professional Temperature Measurement

Instantly detect overheating and energy losses with the wide measurement range from -20°C to 600°C. The smart IQ+ algorithms and ±1.5°C accuracy ensure reliable results in electrical installations, HVAC, or engines. At the same time, the Colorbar function automatically highlights dangerous temperatures, speeding up your daily field diagnostics.

Absolute Portability and Full Control

Always keep with you a powerful diagnostic tool that weighs just 10g and is powered via USB-C with minimal power consumption of 0.3W. Through the Temp Master app, you can manage 12 color palettes, capture photos or videos, and use the Picture-in-Picture function. In addition, the 50cm cable allows you to comfortably reach even the most hard-to-access spots.

Specifications

  • Infrared (IR) resolution: 256 × 192 pixels (X³IR interpolation to 512 × 384 pixels)
  • Pixel size: 12 μm
  • Temperature measurement range: -20°C to 600°C
  • Measurement accuracy: ±1.5°C (IQ+ Precision Temperature Measurement technology)
  • Thermal sensitivity (NETD): ≤ 40 mK at 25°C, F#1.0
  • Refresh rate: 25 Hz
  • Field of view (FOV): 56.0° (horizontal) × 42.2° (vertical)
  • Digital zoom: 15×
  • Image algorithm: Razor X Ultra Clear
  • Power consumption: 0.3 W
  • Estimated operating time: 300 to 480 minutes
  • Measurement corrections: Emissivity, distance, and ambient temperature adjustment
  • App: Temp Master (supports Android 6.0+, tablet, PC)
  • App features: 12 color palettes, PIP (Picture-in-Picture), Auto Shutter, point/line/area measurements
  • Dimensions: 31 × 23 × 10 mm
  • Weight: 10 g
  • Operating temperature: -15°C to 55°C

Package Contents

  • 1x Thermal Master P2 Mini thermal camera (USB-C)
  • 1x Protective case with carabiner
  • 1x USB-C extension cable (50 cm)
  • 1x Quick start guide

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Screen
-
for Mobile
Yes

for Mobile

Enables thermal imaging through the mobile device.
Bluetooth
No

Bluetooth

Wireless connection with a device that also has Bluetooth.
Wi-Fi
No

Wi-Fi

Wirelessly connect the thermal camera through Wi-Fi connectivity.
Face Recognition
No
Thermal Sensitivity (mK)
40

Compatibility

Android
Yes
iOS
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • IR resolution 256x192 (X³IR 512x384): Provides detailed imaging with Razor X algorithm for observing small components.
  • Measurement range -20°C to 600°C: High accuracy of ±1.5°C with IQ+ algorithms for diagnostics in electronics and HVAC.
  • Weight 10g & USB-C connection: Extremely compact design with minimal 0.3W power consumption directly from the device.
  • Advanced Temp Master app: Features 12 color palettes, point/line/area measurements, and PIP function.

High-Definition Imaging Razor X

Reveal every thermal detail on your mobile screen thanks to Razor X Ultra Clear technology. The 256×192 pixel sensor is interpolated through the X³IR system to 512×384 pixels, allowing you to detect even tiny 0.25mm resistors on PCB boards. With 15x digital zoom, you can scan large surfaces or focus on critical components with absolute clarity.

Professional Temperature Measurement

Instantly detect overheating and energy losses with the wide measurement range from -20°C to 600°C. The smart IQ+ algorithms and ±1.5°C accuracy ensure reliable results in electrical installations, HVAC, or engines. At the same time, the Colorbar function automatically highlights dangerous temperatures, speeding up your daily field diagnostics.

Absolute Portability and Full Control

Always keep with you a powerful diagnostic tool that weighs just 10g and is powered via USB-C with minimal power consumption of 0.3W. Through the Temp Master app, you can manage 12 color palettes, capture photos or videos, and use the Picture-in-Picture function. In addition, the 50cm cable allows you to comfortably reach even the most hard-to-access spots.

Specifications

  • Infrared (IR) resolution: 256 × 192 pixels (X³IR interpolation to 512 × 384 pixels)
  • Pixel size: 12 μm
  • Temperature measurement range: -20°C to 600°C
  • Measurement accuracy: ±1.5°C (IQ+ Precision Temperature Measurement technology)
  • Thermal sensitivity (NETD): ≤ 40 mK at 25°C, F#1.0
  • Refresh rate: 25 Hz
  • Field of view (FOV): 56.0° (horizontal) × 42.2° (vertical)
  • Digital zoom: 15×
  • Image algorithm: Razor X Ultra Clear
  • Power consumption: 0.3 W
  • Estimated operating time: 300 to 480 minutes
  • Measurement corrections: Emissivity, distance, and ambient temperature adjustment
  • App: Temp Master (supports Android 6.0+, tablet, PC)
  • App features: 12 color palettes, PIP (Picture-in-Picture), Auto Shutter, point/line/area measurements
  • Dimensions: 31 × 23 × 10 mm
  • Weight: 10 g
  • Operating temperature: -15°C to 55°C

Package Contents

  • 1x Thermal Master P2 Mini thermal camera (USB-C)
  • 1x Protective case with carabiner
  • 1x USB-C extension cable (50 cm)
  • 1x Quick start guide
