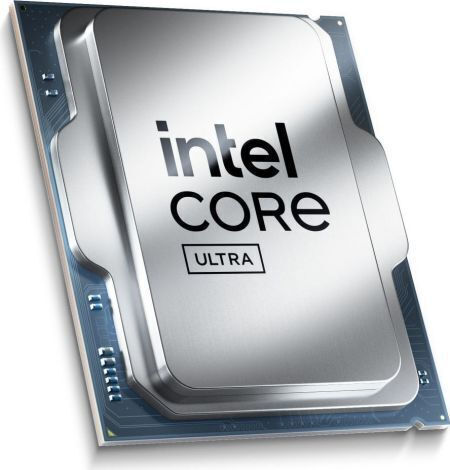

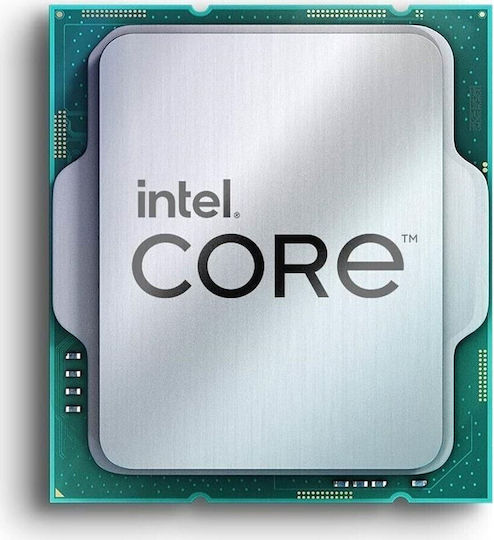

Intel Ultra 5 245 3.5GHz Processor 14 Core for Socket 1851 Tray
CPU Processors

Intel Ultra 5 245 3.5GHz Processor 14 Core for Socket 1851 Tray

Key features:

  • Total cores: 14
  • Max Turbo Frequency: 5.1 GHz
  • 24 MB Intel® Smart Cache
  • Up to DDR5 6400 MT/s
  • GPU: Intel® Graphics
See full description

  • CPU Speed

    The speed at which the processor operates in everyday use.

    During the execution of demanding applications (e.g. games), the frequency may automatically increase up to the Maximum Processor Frequency.

  • Cores

    The natural individual processing units that the processor has. The more cores a processor has, the more efficient it is in running multiple applications simultaneously. For simple use, 4 cores are sufficient, while for gaming and video processing, at least 6 are recommended.

  • Socket

    The processor socket type.

    The motherboard we choose should have the same socket in order for the processor to "fit in".

  • Maximum CPU Speed

    The maximum processor frequency is the frequency that the processor can reach when executing demanding applications that use one core. Generally, when running demanding applications (e.g. games), the frequency can automatically increase up to the Maximum Processor Frequency depending on the number of cores in use. (the fewer cores are active, the closer they can operate to the maximum frequency)

  • Cache Memory

    Cache is a very fast memory that acts as an intermediary between the processor and RAM. It stores data that is frequently useful to the processor for faster access.
  • See all
Review the product
Product report

Description

Description

CPU Specifications

  • Total cores: 14
  • # of performance cores: 6
  • # of efficient cores: 8
  • Total threads: 14
  • Max Turbo Frequency: 5.1 GHz
  • Performance-core Max Turbo Frequency: 5.1 GHz
  • Efficient-core Max Turbo Frequency: 4.5 GHz
  • Performance-core Base Frequency: 3.5 GHz
  • Efficient-core Base Frequency: 3 GHz
  • 24 MB Intel® Smart Cache
  • Total L2 Cache: 26 MB
  • Processor Base Power: 65 W
  • Maximum Turbo Power: 121 W
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
  • CPU: TSMC N3B

Memory Specifications

  • Maximum memory size (depending on memory type): 256 GB
  • Memory types: Up to DDR5 6400 MT/s
  • Maximum number of memory channels: 2
  • Supported ECC memory: Yes

GPU Specifications

  • GPU Name: Intel® Graphics
  • Graphics Base Frequency: 300 MHz
  • Maximum Dynamic Frequency: 1.9 GHz
  • GPU Peak TOPS (Int8): 8
  • Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12 GHz, eDP1.4b
  • X e -cores: 4
  • Maximum Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
  • Maximum Resolution (DP): 8K @ 60Hz
  • Maximum Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
  • DirectX* Support: 12
  • OpenGL* Support: 4.5
  • OpenCL* Support: 3
  • Intel® Quick Sync Video: Yes
  • Supported Number of Displays: 4
  • Device ID: 0x7D67
  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications

  • Name NPU: Intel® AI Boost
  • NPU Peak TOPS (Int8): 13
  • Sparity Support: Yes
  • Windows Studio effects support: Yes
  • AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion options

  • Direct Media Interface (DMI) Revision: 4
  • Maximum Number of DMI Lanes: 8
  • Intel® Thunderbolt™ 4:  Yes
  • Scalability: 1S Only
  • PCI Express Revision:  5.0 and 4.0
  • PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
  • Maximum Number of PCI Express Lanes: 24

Advanced Technologies

  • Intel® Volume Management Device (VMD):  Yes
  • Intel® Gaussian & Neural Accelerator: 3.5
  • Intel® Thread Director: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Year of Release
2024
Family
Ultra 5
Microarchitecture
Arrow Lake

Microarchitecture

The code name of the generation and internal organization of the processor. A common indicative element is the nanometers (nm) of the microarchitecture; the smaller, the better. The latest and most recent generation of Intel, named Arrow Lake, includes the “Core Ultra” models without the "i" prefix. The latest and most recent generation of AMD is Zen 5.
Socket
1851

Socket

The processor socket type.

The motherboard we choose should have the same socket in order for the processor to "fit in".
Packaging
Tray

Packaging

Tray

"They are not accompanied by a cooler and a fan. They are intended for those who wish to purchase a cooling system independently."
Compatible Chipset
Z890
Type
Middle Range

Performance

Cores
14

Cores

The natural individual processing units that the processor has. The more cores a processor has, the more efficient it is in running multiple applications simultaneously. For simple use, 4 cores are sufficient, while for gaming and video processing, at least 6 are recommended.
Threads
14

Threads

Threads are virtual versions of processor cores. They allow the processor to serve multiple tasks in parallel.
Processor Frequency (Base Frequency)
3.5 GHz

Processor Frequency (Base Frequency)

The speed at which the processor operates in everyday use.

During the execution of demanding applications (e.g. games), the frequency may automatically increase up to the Maximum Processor Frequency.
Max Processor Frequency
5.1 GHz

Max Processor Frequency

The maximum processor frequency is the frequency that the processor can reach when executing demanding applications that use one core. Generally, when running demanding applications (e.g. games), the frequency can automatically increase up to the Maximum Processor Frequency depending on the number of cores in use. (the fewer cores are active, the closer they can operate to the maximum frequency)
Cache memory
26 MB

Cache memory

Cache is a very fast memory that acts as an intermediary between the processor and RAM. It stores data that is frequently useful to the processor for faster access.
Unlocked
No

Unlocked

Ability to change the processor clock settings to achieve higher operating frequency (overclocking).
Thermal Design Power (TDP)
121 W

Thermal Design Power (TDP)

The TDP shows how much heat the processor generates during typical use.

The cooler used should be capable of handling this amount of heat.

Features & Functions

Embedded Graphics
Intel Graphics

Embedded Graphics

Processors with integrated graphics processing unit. A motherboard that supports this function is required.

With such a combination, the need to purchase a graphics card can be eliminated. It is recommended only for simple use.
Includes Heatsink
No

Includes Heatsink


The processor requires cooling in order to operate. If the processor does not come with a heatsink, you will need to purchase a suitable CPU heatsink or a separate water cooling system.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

CPU Specifications

  • Total cores: 14
  • # of performance cores: 6
  • # of efficient cores: 8
  • Total threads: 14
  • Max Turbo Frequency: 5.1 GHz
  • Performance-core Max Turbo Frequency: 5.1 GHz
  • Efficient-core Max Turbo Frequency: 4.5 GHz
  • Performance-core Base Frequency: 3.5 GHz
  • Efficient-core Base Frequency: 3 GHz
  • 24 MB Intel® Smart Cache
  • Total L2 Cache: 26 MB
  • Processor Base Power: 65 W
  • Maximum Turbo Power: 121 W
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
  • CPU: TSMC N3B

Memory Specifications

  • Maximum memory size (depending on memory type): 256 GB
  • Memory types: Up to DDR5 6400 MT/s
  • Maximum number of memory channels: 2
  • Supported ECC memory: Yes

GPU Specifications

  • GPU Name: Intel® Graphics
  • Graphics Base Frequency: 300 MHz
  • Maximum Dynamic Frequency: 1.9 GHz
  • GPU Peak TOPS (Int8): 8
  • Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12 GHz, eDP1.4b
  • X e -cores: 4
  • Maximum Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
  • Maximum Resolution (DP): 8K @ 60Hz
  • Maximum Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
  • DirectX* Support: 12
  • OpenGL* Support: 4.5
  • OpenCL* Support: 3
  • Intel® Quick Sync Video: Yes
  • Supported Number of Displays: 4
  • Device ID: 0x7D67
  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications

  • Name NPU: Intel® AI Boost
  • NPU Peak TOPS (Int8): 13
  • Sparity Support: Yes
  • Windows Studio effects support: Yes
  • AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion options

  • Direct Media Interface (DMI) Revision: 4
  • Maximum Number of DMI Lanes: 8
  • Intel® Thunderbolt™ 4:  Yes
  • Scalability: 1S Only
  • PCI Express Revision:  5.0 and 4.0
  • PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
  • Maximum Number of PCI Express Lanes: 24

Advanced Technologies

  • Intel® Volume Management Device (VMD):  Yes
  • Intel® Gaussian & Neural Accelerator: 3.5
  • Intel® Thread Director: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Year of Release
2024
Family
Ultra 5
Microarchitecture
Arrow Lake

Microarchitecture

The code name of the generation and internal organization of the processor. A common indicative element is the nanometers (nm) of the microarchitecture; the smaller, the better. The latest and most recent generation of Intel, named Arrow Lake, includes the “Core Ultra” models without the "i" prefix. The latest and most recent generation of AMD is Zen 5.
Socket
1851

Socket

The processor socket type.

The motherboard we choose should have the same socket in order for the processor to "fit in".
Packaging
Tray

Packaging

Tray

"They are not accompanied by a cooler and a fan. They are intended for those who wish to purchase a cooling system independently."
Compatible Chipset
Z890
Type
Middle Range

Performance

Cores
14

Cores

The natural individual processing units that the processor has. The more cores a processor has, the more efficient it is in running multiple applications simultaneously. For simple use, 4 cores are sufficient, while for gaming and video processing, at least 6 are recommended.
Threads
14

Threads

Threads are virtual versions of processor cores. They allow the processor to serve multiple tasks in parallel.
Processor Frequency (Base Frequency)
3.5 GHz

Processor Frequency (Base Frequency)

The speed at which the processor operates in everyday use.

During the execution of demanding applications (e.g. games), the frequency may automatically increase up to the Maximum Processor Frequency.
Max Processor Frequency
5.1 GHz

Max Processor Frequency

The maximum processor frequency is the frequency that the processor can reach when executing demanding applications that use one core. Generally, when running demanding applications (e.g. games), the frequency can automatically increase up to the Maximum Processor Frequency depending on the number of cores in use. (the fewer cores are active, the closer they can operate to the maximum frequency)
Cache memory
26 MB

Cache memory

Cache is a very fast memory that acts as an intermediary between the processor and RAM. It stores data that is frequently useful to the processor for faster access.
Unlocked
No

Unlocked

Ability to change the processor clock settings to achieve higher operating frequency (overclocking).
Thermal Design Power (TDP)
121 W

Thermal Design Power (TDP)

The TDP shows how much heat the processor generates during typical use.

The cooler used should be capable of handling this amount of heat.

Features & Functions

Embedded Graphics
Intel Graphics

Embedded Graphics

Processors with integrated graphics processing unit. A motherboard that supports this function is required.

With such a combination, the need to purchase a graphics card can be eliminated. It is recommended only for simple use.
Includes Heatsink
No

Includes Heatsink


The processor requires cooling in order to operate. If the processor does not come with a heatsink, you will need to purchase a suitable CPU heatsink or a separate water cooling system.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
