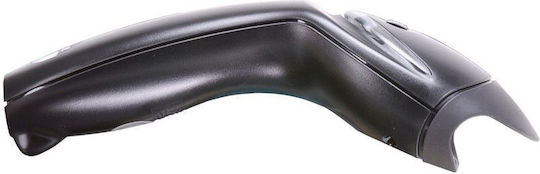

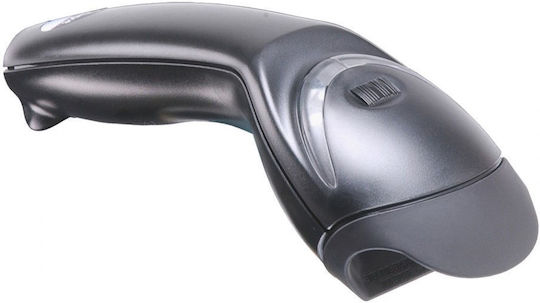

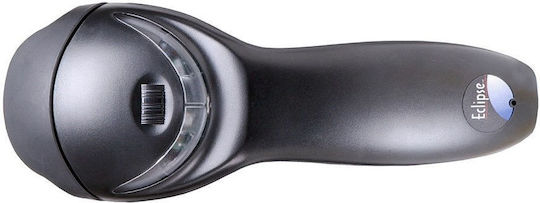

The Honeywell MS 5145 Eclipse is a handheld, single-line laser scanner with CodeGate technology, which lets you aim at the desired barcode and transmit the data at the push of a button. CodeSense technology automatically switches from pulse mode to targeting mode when it detects a barcode. It is used for menu scanning, point-of-sale applications, document processing, and inventory control.
It features Flash ROM for firmware upgrades from a computer using Metrologic’s MetroSet2 application. It is compatible with OPOS and JPOS systems and uses the same cables and power supplies as the Voyager, Orbit, and Cubit.
- Type: Handheld scanner
- Scanning technology: Single-line laser
- Connection type: USB
- Technologies: CodeGate, CodeSense, Flash ROM
- Firmware upgrade application: Metrologic’s MetroSet2
- Compatibility: OPOS and JPOS systems
- Scan rate: 72 scan lines per second
- Resolution: 4 mil (0.102 mm)
- Dimensions: 169 × 63 × 51 mm
- Weight: 100 g
- Operating voltage: 5 VDC ± 0.25 V
- Operating power consumption: 675 mW (125 mA at 5 V)
- Operating temperature: 0 °C to 40 °C
- Storage temperature: −40 °C to 60 °C
- Operating humidity: 5% to 95%
- Drop resistance: From a height of 1.5 m
- Connectivity
- -
- Scanner Type
- Handheld Scanner
- Readability
- Area Imager (2D)
- Connection Type
- USB
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
