Welding Machine Inverter TIG with Maximum Welding Current 160A and Duty Cycle 35%
Welding Machines

Welding Machine Inverter TIG with Maximum Welding Current 160A and Duty Cycle 35%

Key features:

  • Adjustment current: 10÷160A
  • Power supply: 1x230V
  • Protection: IP23S
  • Dimensions: 360x140x230mm
See full description

  • Welding Current

    160

    Suitable for use in medium-thickness metal constructions and pipelines.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
Review the product
Product report

Description

Description

Capabilities

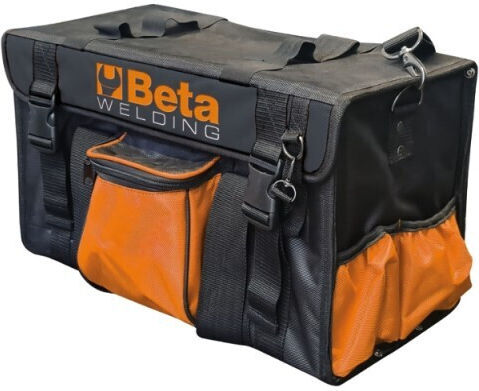

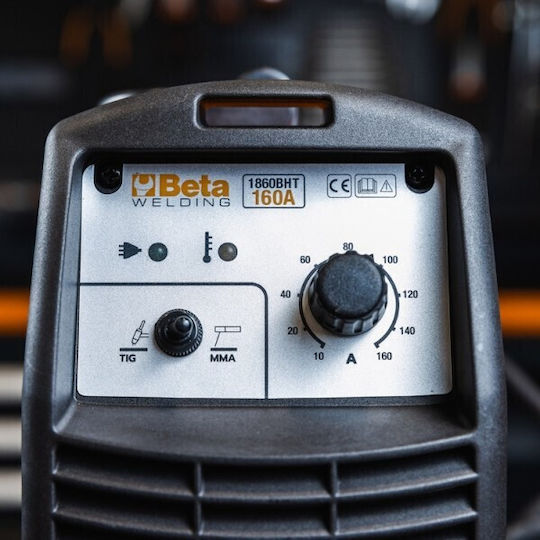

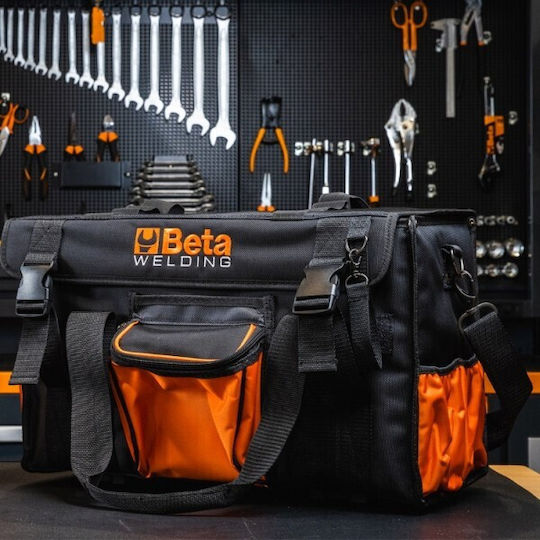

The welding machine 1860BHT/160A was born as a high-quality product from the merger of BETA SpA with HELVI SpA, a leading Italian company in the production of inverter welding machines. With direct current (DC) output, it can be used for MMA welding with rutile, basic, and stainless steel electrodes as well as for TIG welding on steel, using a special torch. Ideal for industrial maintenance. Compact and lightweight, the welder is complete with arc functions, STICK/TIG (lift arc), hot start, anti-stick, and thermostatic protection. Supplied with 25 mm2 cables and includes a bag. Can be used with generators.

Features:

  • Adjustment current: 10÷160A
  • Power supply: 1x230V
  • Duty cycle (40°C): 35% - 160 A 60% - 130 A 100% - 95 A
  • Protection: IP23S
  • Usable electrodes: Ø 1.6 - 4mm rutile, basic, stainless steel.

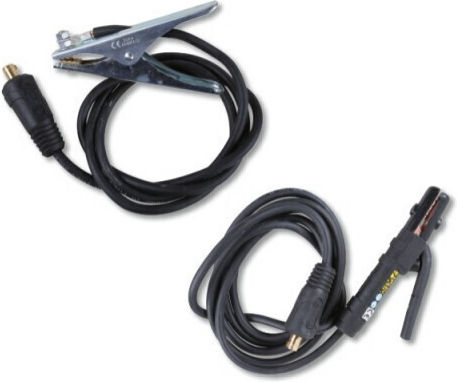

  • Supplied with 25mm² cables
  • Dimensions: 360x140x230mm
  • Weight: 6.2 kg

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
TIG

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Weight
6200 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Capabilities

The welding machine 1860BHT/160A was born as a high-quality product from the merger of BETA SpA with HELVI SpA, a leading Italian company in the production of inverter welding machines. With direct current (DC) output, it can be used for MMA welding with rutile, basic, and stainless steel electrodes as well as for TIG welding on steel, using a special torch. Ideal for industrial maintenance. Compact and lightweight, the welder is complete with arc functions, STICK/TIG (lift arc), hot start, anti-stick, and thermostatic protection. Supplied with 25 mm2 cables and includes a bag. Can be used with generators.

Features:

  • Adjustment current: 10÷160A
  • Power supply: 1x230V
  • Duty cycle (40°C): 35% - 160 A 60% - 130 A 100% - 95 A
  • Protection: IP23S
  • Usable electrodes: Ø 1.6 - 4mm rutile, basic, stainless steel.
  • Supplied with 25mm² cables
  • Dimensions: 360x140x230mm
  • Weight: 6.2 kg

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
TIG

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Weight
6200 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
