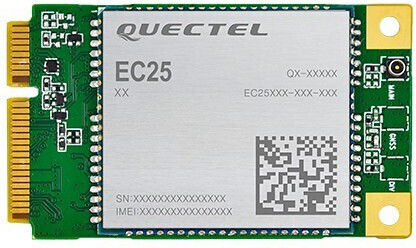

The Z ALLNET LTE Module, specifically the Quectel EC25-EFA Cat4 Mini PCIe, is designed for multitasking in Machine-to-Machine (M2M) and Internet of Things (IoT) applications. This compact module features advanced capabilities, offering a reliable choice for industrial applications.

• Supports data speeds up to 150 Mbps for download and 50 Mbps for upload.
• Compact design: 32.0mm x 29.0mm x 2.4mm.
• Enhanced connectivity with MIMO technology for improved reliability.
• Wide frequency support for flexible deployment.

With a design based on 3GPP Rel. 11 LTE, the module ensures efficient data transmission. Beyond telecommunications capabilities, the EC25-EFA integrates a multi-constellation GNSS receiver, supporting GPS, GLONASS, BeiDou, Galileo, and QZSS, offering accurate positioning data for various applications.

• Operating voltage range: 3.0V to 3.6V.
• Extensive temperature range from -40°C to +85°C.
• Power consumption: 2W in standby and up to 6.5W at maximum operation.

The EC25-EFA module is highly compatible with existing EDGE and GSM/GPRS networks, making it suitable for use in areas with limited 4G or 3G coverage. This compatibility enhances its appeal across various industries, allowing for seamless transition between different Quectel modules.

In summary, the Z ALLNET LTE Module is a powerful tool designed to address the challenges of modern connectivity in industrial environments.
