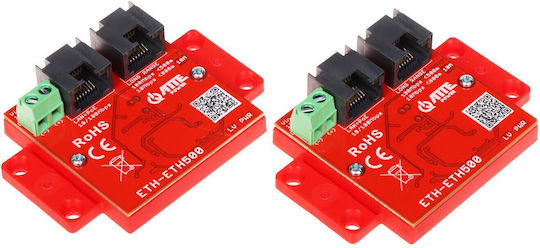

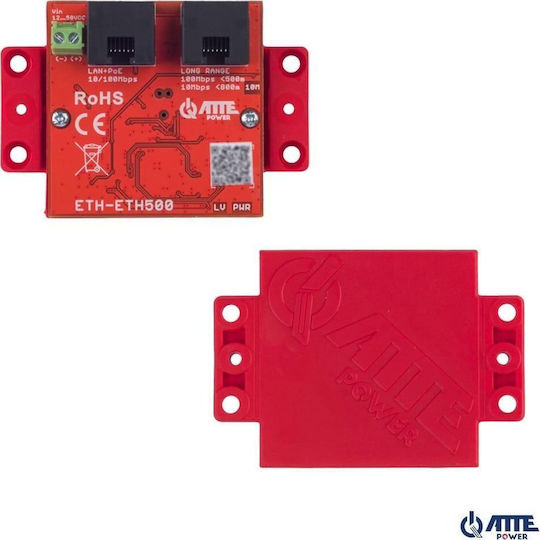

The set of converters ETH-ETH500-SET functions as a LAN network extender (repeater) and supports Passive PoE power supply through a PoE switch or compatible device.

• LAN Ports: 2 x RJ45 10/100 Base-T + Passive PoE
• UTP transmission range: up to 800 m (max.)
• Transmission speed: 10 / 100 Mbps
• Maximum output power:
  • up to 250 m – 100 Mbps – 50 W
  • up to 500 m – 100 Mbps – 25 W
  • up to 800 m – 10 Mbps – 15 W
• Maximum total power: 50 W
• Power supply: 44 ... 58 V DC - Passive PoE; 12 ... 58 V DC - terminal block connectors
• Power consumption: 1.35 W
• Dimensions of individual unit: 73 x 52 x 20 mm
• Compliance certificates: CE
