Wilo DrainLift MINI3-XS-EF Single-phase Pump Waste Water / Sewage 0.56hp 6095127
Submersible Water Pumps

Wilo DrainLift MINI3-XS-EF Single-phase Pump Waste Water / Sewage 0.56hp 6095127

Key features:

  • Sewage pumping unit
  • Electrical connection: 230V
  • Protection rating: IP68
  • Container material: ABS
  • Nominal speed: 2700 1/min
See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
  • See all
The product is not available for shipping to the selected country.
Review the product
Product report

Description

Description

DrainLift MINI3-XS-EF

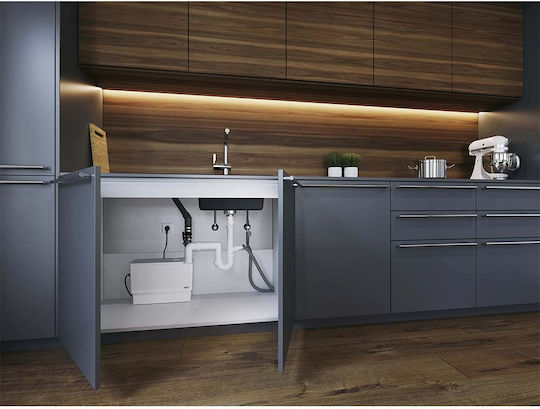

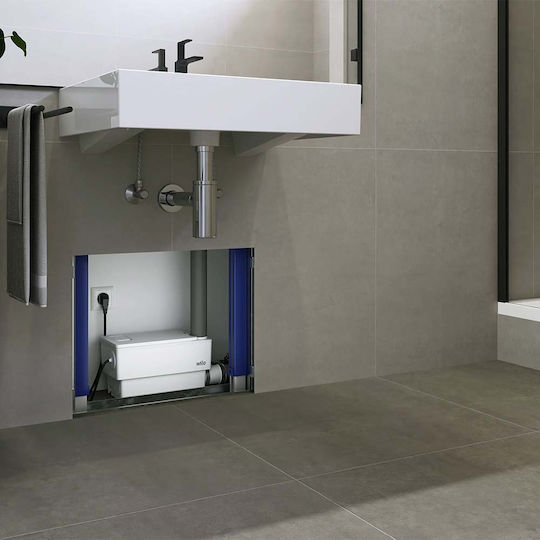

Compact and ready-to-connect sewage pumping unit for draining sinks, showers, and bathtubs. The sewage pumping unit meets the requirements of EN 12050-2.

Design

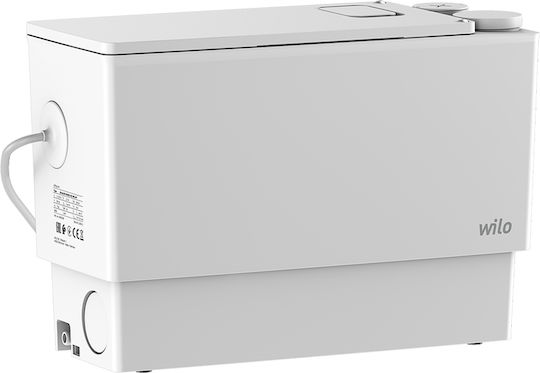

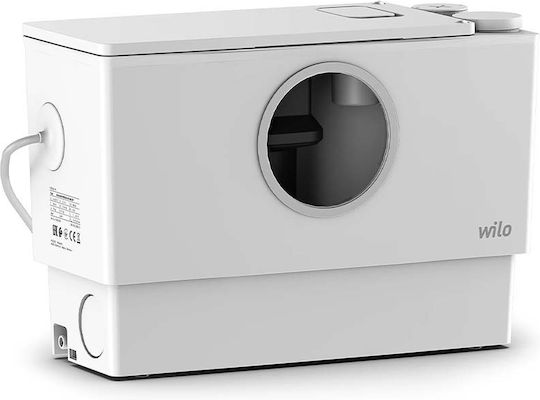

Compact, ready-to-connect, and fully submersible wastewater pumping unit with a submersible pump. Level detection is ensured with a vertical float switch. Ventilation is integrated into the lid and features an activated carbon filter.

Up to 4 connections available

  • 1x inlet port 40 mm (DN 40), without check valve, configured upwards, factory sealed.
  • 2x inlet ports 40/50 mm (DN 40/50), with check valve, configured horizontally to the left and right, factory open.
  • 1x discharge connection 32/40 mm (DN 32/40), with check valve, configured upwards, factory open.

Contents of Delivery

  • 1x sleeve for HT pipe DN 32/40 (32/40 mm)
  • 2x flexible hose clamps 32-50 mm
  • 2x inlet connections DN 50 (50 mm)
  • 2x sleeves for HT pipe DN 40/50 (40/50 mm)
  • 2x check valves
  • 2x pipe clamps 50-70 mm
  • 2x flexible hose clamps 32-50 mm
  • 2x plugs
  • 6x circular section rings
  • Floor mounting (protection against buoyancy): 2x mounting brackets with screws and dowels
  • Installation and operating instructions

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
0.56 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
420 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Motor Rotation Speed
2700 rpm

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
No
Protection Certification
IP68

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

DrainLift MINI3-XS-EF

Compact and ready-to-connect sewage pumping unit for draining sinks, showers, and bathtubs. The sewage pumping unit meets the requirements of EN 12050-2.

Design

Compact, ready-to-connect, and fully submersible wastewater pumping unit with a submersible pump. Level detection is ensured with a vertical float switch. Ventilation is integrated into the lid and features an activated carbon filter.

Up to 4 connections available

  • 1x inlet port 40 mm (DN 40), without check valve, configured upwards, factory sealed.
  • 2x inlet ports 40/50 mm (DN 40/50), with check valve, configured horizontally to the left and right, factory open.
  • 1x discharge connection 32/40 mm (DN 32/40), with check valve, configured upwards, factory open.

Contents of Delivery

  • 1x sleeve for HT pipe DN 32/40 (32/40 mm)
  • 2x flexible hose clamps 32-50 mm
  • 2x inlet connections DN 50 (50 mm)
  • 2x sleeves for HT pipe DN 40/50 (40/50 mm)
  • 2x check valves
  • 2x pipe clamps 50-70 mm
  • 2x flexible hose clamps 32-50 mm
  • 2x plugs
  • 6x circular section rings
  • Floor mounting (protection against buoyancy): 2x mounting brackets with screws and dowels
  • Installation and operating instructions

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
0.56 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
420 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Motor Rotation Speed
2700 rpm

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
No
Protection Certification
IP68

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
