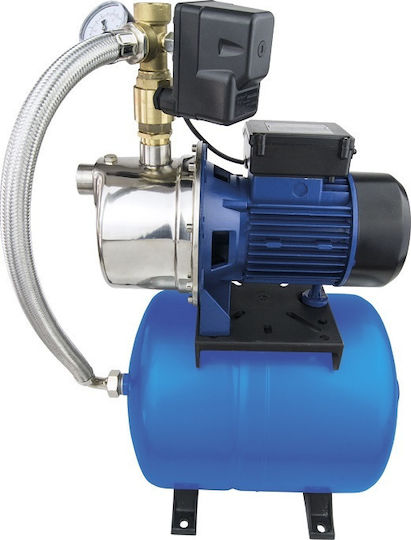

The Anavalos Booster 100X single-stage, single-phase water pressure system has a horizontal 24-liter tank and a power rating of 750 W. It provides a maximum head of 44 m and a maximum flow rate of 3.5 m³/h, with a maximum operating pressure of 4.5 bar.
- Type: Single-stage pressure system
- Power supply: Single-phase, 220 V
- Power: 750 W
- Tank: Horizontal
- Tank capacity: 24 liters
- Maximum operating pressure: 4.5 bar
- Maximum flow rate: 3.5 m³/h
- Maximum head: 44 m
- Maximum suction depth: 8 m
- Inlet and outlet connection: 1''
- Maximum water temperature: 50 °C
- Maximum sand content: 0.25%
- Maximum size of suspended solid particles: 3 mm
- Type
- Single Stage
- Power Source
- Single Phase
- Maximum Pressure
- 4.5 bar
- Maximum Suction Height
- 44 m
- Power
- 750 W
- Maximum Supply
- 3.5 m³/h
- Container Capacity
- 24 lt
- Inverter
- No
- Container
- Horizontal
