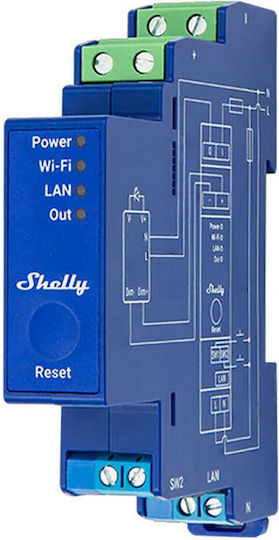

Shelly WiFi Dimmer Panel Push Button Dimmer Switch 16A
Electrical Panel Push Buttons Switches

Shelly WiFi Dimmer Panel Push Button Dimmer Switch 16A

The Shelly Pro Dimmer 0/1-10V PM adjusts the brightness of light fixtures via 0-10V and 1-10V control and is mounted on a DIN rail. It supports Wi-Fi and Bluetooth connectivity and measures the...

The Shelly Pro Dimmer 0/1-10V PM adjusts the brightness of light fixtures via 0-10V and 1-10V control and is mounted on a DIN rail. It supports Wi-Fi and Bluetooth connectivity and measures the real-time energy consumption of connected light fixtures. Settings and control are available via an app, while automation and voice control via Amazon Alexa, Google...

See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Shelly Pro Dimmer 0/1-10V PM adjusts the brightness of light fixtures via 0-10V and 1-10V control and is mounted on a DIN rail. It supports Wi-Fi and Bluetooth connectivity and measures the real-time energy consumption of connected light fixtures. Settings and control are available via an app, while automation and voice control via Amazon Alexa, Google Assistant and Samsung SmartThings are supported.

It can operate with physical buttons for single or dual dimming control and supports schedules, scenes, webhooks, scripts and MQTT. It features overload, overvoltage and overtemperature protection, as well as voltage, current, power and energy meters.

  • Type: DIN-rail dimmer
  • Rated current: 16 A
  • Wi-Fi: Yes
  • Connectivity protocols: Wi-Fi 802.11 b/g/n, Bluetooth 4.2
  • Supply voltage: 110–240 V~
  • Power consumption: Less than 3 W
  • Voltage control type: 0-10V / 1-10V
  • Neutral wire: Not required
  • Maximum switching voltage: 240 V~
  • Measurements: Active and apparent power, active and fundamental reactive energy, power factor
  • Temperature sensor: Internal
  • Schedules: Up to 20
  • Webhooks: Up to 20, supporting 5 URLs per webhook
  • Scripts: Yes
  • MQTT: Yes
  • Protection: Overload, overvoltage and overtemperature
  • Dimensions: 94 x 19 x 69 mm
  • Weight: 70 g
  • Enclosure material: Plastic
  • Enclosure colour: Blue
  • Operating temperature: -20 °C to 40 °C
  • Operating humidity: 30% to 70% RH

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Panel Switches Type
Dimmer
Rated Voltage
16 A

Features & Functions

WiFi
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

54,81 €
14,00 €   shipping cost
