Gigabyte GeForce RTX 5060 Ti 16GB GDDR7 Eagle OC ICE Graphics Card
Graphics Cards

Gigabyte GeForce RTX 5060 Ti 16GB GDDR7 Eagle OC ICE Graphics Card Code: GV-N506TEAGLEOC ICE-16GD

Key features:

  • NVIDIA Blackwell + DLSS 4
  • GeForce RTX™ 5060 Ti
  • 16 GB GDDR7 128 bit
  • WINDFORCE cooling system
  • Reinforced structure
See full description

  • Memory

    It refers to the type (e.g., GDDR6, GDDR6X) and size of the integrated memory (e.g., 4GB, 8GB, 12GB) of the graphics card. Greater capacity and newer memory types offer better performance in demanding games and applications.

  • OverClock (OC)

    Overclocking (OC) increases the frequencies of the core and the memory (VRAM) of the card for higher FPS and faster graphics processing. It is achieved by increasing the Power Limit and voltage, but requires strong cooling to prevent overheating.
  • Connectivity HDMI, DisplayPort

  • Cuda Cores

    CUDA Cores are processing units in NVIDIA graphics cards that allow the simultaneous execution of many computational tasks. They accelerate the process of graphics processing, as well as other demanding tasks such as machine learning and data processing.

  • Interface

    The version of the PCI Express connection used for installing the graphics card on the motherboard.

    The most widespread version is 4.0, while the latest generation cards use 5.0.

  • Memory bus

    The size of the communication channel between the chipset and the RAM of the graphics card. In combination with the processor's base clock speed, it determines the volume of data (which translates into graphics resolution and quality) that can be directed to the graphics card processor.
  • See all
Product report

Description

Description

The Gigabyte GeForce RTX 5060 Ti is a top-tier graphics card designed for high performance and impressive visual experience. This card features 16GB GDDR7 memory, ideal for demanding games and graphics applications.

The card works with the Nvidia processor offering unmatched performance. The connection is made via PCI Express x8 5.0, providing fast and reliable data transfer.

  • The maximum resolution it supports reaches up to 7680x4320, ensuring impressive clarity.
  • The processor speed is 2617 MHz, ensuring smooth performance during games.
  • It has a memory bus of 128-bit, offering fast communication between the memory and the graphics processor.

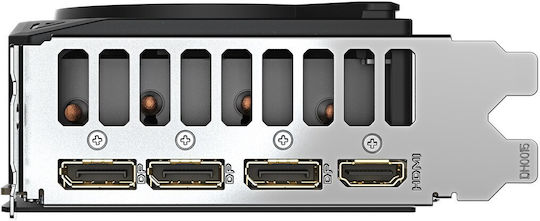

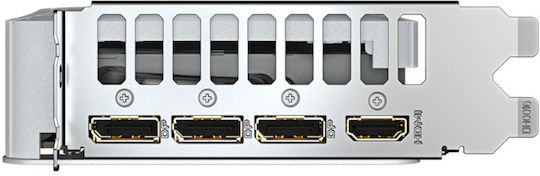

  • Includes 1 HDMI and 3 DisplayPort ports for flexible connection options with monitors.
  • The card is air-cooled, ensuring proper cooling even under heavy loads.
  • Requires a minimum power supply of 650W and has 8-pin power for stable operation.

The Gigabyte GeForce RTX 5060 Ti is an excellent choice for those who want to enjoy games and applications with maximum performance and exceptional image quality.

Characteristics

  • Powered by NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX™ 5060 Ti
  • Integrated with 16 GB GDDR7 128-bit memory interface
  • WINDFORCE cooling system
    • Hawk Fan
    • Server-grade thermal conductive gel
  • Enhanced structure
  • CORE CLOCK: 2617 MHz (Reference card: 2572 MHz)

NVIDIA Blackwell Architecture

The ultimate platform for gamers and creators

  • Fifth-Gen Tensor Cores: Maximum AI performance with FP4 and DLSS 4
  • New Streaming Multiprocessors: Optimized for neural shaders
  • Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
  • Graphics and performance enhanced with AI: NVIDIA DLSS 4 with Multi Frame Generation
  • Game-winning responsiveness: NVIDIA Reflex 2 with Warp Frame
  • True-to-Life Graphics: Full ray tracing with neural rendering
  • Digital Humans and AI Assistants: NVIDIA ACE
  • Accelerate your creativity: NVIDIA Studio creator tools and technology
  • Enhance any video with AI: NVIDIA Broadcast and 9th Gen NVIDIA Encoder
  • Performance and Reliability: NVIDIA application with Game Ready and Studio drivers
  • The ultimate game display technologies: NVIDIA G-SYNC

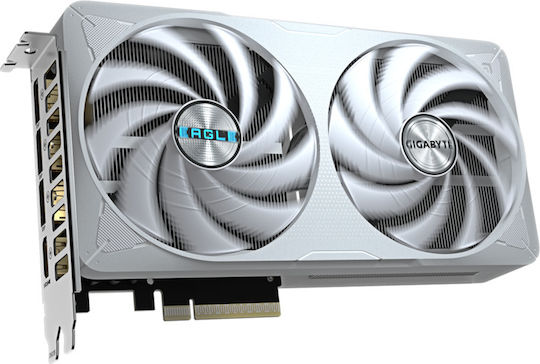

WINDFORCE Cooling System

The WINDFORCE cooling system offers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

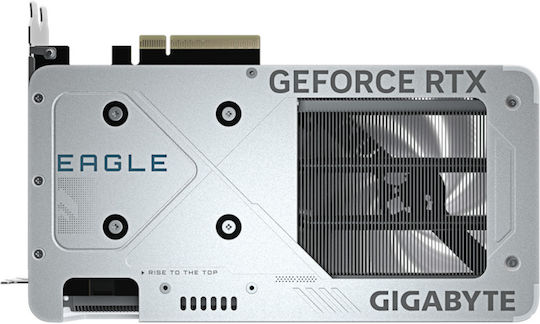

STUNNING EXTERIOR DESIGN

The design inspiration for the EAGLE series comes from the fusion of aerospace battleships and elements of science fiction. Its unique curved contours outline an enhanced appearance, complemented by sectional lines resembling disassembled deck components, reminiscent of the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich atmosphere of cosmic technology, showcasing futuristic aesthetics and craftsmanship in every detail.

Signature Identity

The front design incorporates bold elements of aerospace and science fiction, clearly highlighting the distinct EALGE style, while maintaining a cohesive aesthetic with the motherboard product series. This ensures a unified design language and enhances the product family identity.


ULTRA COOLING - The lower MOSFET RDS(on) is specially designed to produce lower switching resistance for faster charging and discharging of electric current at an extremely low temperature.

LOW POWER LOSS - The metal choke holds energy much longer than common iron core chokes at high frequency, effectively reducing core energy loss and EMI interference.

LONGER LIFE - Lower ESR solid capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

The fully automated production process ensures top quality circuit boards and eliminates the sharp protrusions of solder connectors that appear on the conventional PCB surface. This friendly design prevents your hands from being cut or accidentally damaging components during your build.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
GV-N506TEAGLEOC ICE-16GD

Main Specifications

Processor Manufacturer
Nvidia

Processor Manufacturer

Nvidia

nVIDIA chipset cards are characterized by high performance and 4K gaming, where they currently outperform AMD. In the mid-range category, we encounter reliable cards with similar performance from both manufacturers.
Chipset Model
GeForce RTX 5060 Ti

Chipset Model

The main graphics processing chip of the card. It is the most basic characteristic and indicative of its performance.
Interface
PCI Express x8 5.0

Interface

The version of the PCI Express connection used for installing the graphics card on the motherboard.

The most widespread version is 4.0, while the latest generation cards use 5.0.
Processor Speed (Base Clock)
2617 MHz

Processor Speed (Base Clock)

It is the base operating frequency of the graphics card, without activating the boost function. This speed determines how many processing operations the graphics card can perform per second under normal conditions.
Maximum Resolution
7680x4320 pixels
Parallel Processing Technology
Not Supported

Parallel Processing Technology

Ability to use multiple graphics cards simultaneously on a computer. Support for the corresponding technology is required from the motherboard.

This is intended for experienced users with a need for particularly high performance.
Type
High Performance

Type

High Performance

Cards that can smoothly run the most modern games at high resolutions up to 8K.
Cuda Cores
4608

Cuda Cores

CUDA Cores are processing units in NVIDIA graphics cards that allow the simultaneous execution of many computational tasks. They accelerate the process of graphics processing, as well as other demanding tasks such as machine learning and data processing.
Device Group
Gaming
Colour
White

Special Features

RGB Lighting
No

RGB Lighting

It features built-in multicolored LED lighting.
OverClock (OC)
Yes

OverClock (OC)

Overclocking (OC) increases the frequencies of the core and the memory (VRAM) of the card for higher FPS and faster graphics processing. It is achieved by increasing the Power Limit and voltage, but requires strong cooling to prevent overheating.
Air-cooled
Yes

Air-cooled

The graphics card is cooled by one or more fans. 2. The most common way of cooling.
Low Profile
No

Low Profile

Small-sized graphics cards.

They are commonly used in computers with small cases.
Passive Cooling
No

Passive Cooling

The graphics card cools passively, without the use of fans. They are used in cards that are not as powerful, for building a silent computer or HTPC.
Water-cooled
No

Water-cooled

Graphics cards with a waiting connection to a liquid cooling system. They cannot operate without it. Usually found in powerful graphics cards aimed at experienced and demanding users.
External Graphics Card (eGPU)
No

External Graphics Card (eGPU)

A graphics card that has its own box with its own power supply and cooling.

Usually intended for use with laptops, offering the highest performance of a desktop graphics card.
LHR
No

LHR

The LHR (Lite Hash Rate) technology was introduced by NVIDIA to limit the performance of graphics cards in cryptocurrency mining. The goal was to make the cards less attractive to miners, in order to increase availability and reduce prices for gamers. It is important to note that this limitation only affects mining and does not impact the card’s performance in games or graphic applications at all.

Memory

Memory Capacity
16 GB

Memory Capacity

The amount of RAM memory that the graphics card has. Important for demanding games and applications at high resolutions. It is recommended that the card has 4GB or more for gaming.
Memory type
GDDR7

Memory type

RAM memory standards for graphics cards. Most modern cards have GDDR5 or GDDR6.
Memory Speed
2617 MHz

Memory Speed

The speed of the graphics card's RAM memory.
Memory Speed
28 Gbps
Memory bus
128 bit

Memory bus

The size of the communication channel between the chipset and the RAM of the graphics card. In combination with the processor's base clock speed, it determines the volume of data (which translates into graphics resolution and quality) that can be directed to the graphics card processor.

Connectivity

HDMI
1

HDMI

A modern way of digitally transmitting image and sound, compatible with DisplayPort and DVI through an adapter.
DisplayPort
3

DisplayPort

Modern way of digital transfer of image, sound and data, compatible with HDMI and DVI through an adapter.
Dual Link DVI
No

Dual Link DVI

The Dual version supports higher resolutions compared to the simple one. DVI is an older digital method of image transfer, partially compatible with HDMI cables through an adapter.

System Requirements

Minimum Power Supply
650 W

Minimum Power Supply

The minimum power supply required for proper operation of the graphics card in a computer. Mainly applies to modern and powerful graphics cards with particularly high demands. Most power supplies now are over 500W, covering the needs of an average graphics card. In any case, we must confirm that our power supply meets the requirements of the graphics card.
Power Connectors
8-pin

Power Connectors

The type of additional power supply that the card needs directly from the power supply.

Dimensions

Length
215 mm
Height
122 mm
Thickness
40 mm

Top Specs

Memory
16GB, GDDR7

Memory

It refers to the type (e.g., GDDR6, GDDR6X) and size of the integrated memory (e.g., 4GB, 8GB, 12GB) of the graphics card. Greater capacity and newer memory types offer better performance in demanding games and applications.
Connectivity
HDMI, DisplayPort

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

Product Number
GV-N506TEAGLEOC ICE-16GD

Main Specifications

Processor Manufacturer
Nvidia

Processor Manufacturer

Nvidia

nVIDIA chipset cards are characterized by high performance and 4K gaming, where they currently outperform AMD. In the mid-range category, we encounter reliable cards with similar performance from both manufacturers.
Chipset Model
GeForce RTX 5060 Ti

Chipset Model

The main graphics processing chip of the card. It is the most basic characteristic and indicative of its performance.
Interface
PCI Express x8 5.0

Interface

The version of the PCI Express connection used for installing the graphics card on the motherboard.

The most widespread version is 4.0, while the latest generation cards use 5.0.
Processor Speed (Base Clock)
2617 MHz

Processor Speed (Base Clock)

It is the base operating frequency of the graphics card, without activating the boost function. This speed determines how many processing operations the graphics card can perform per second under normal conditions.
Maximum Resolution
7680x4320 pixels
Parallel Processing Technology
Not Supported

Parallel Processing Technology

Ability to use multiple graphics cards simultaneously on a computer. Support for the corresponding technology is required from the motherboard.

This is intended for experienced users with a need for particularly high performance.
Type
High Performance

Type

High Performance

Cards that can smoothly run the most modern games at high resolutions up to 8K.
Cuda Cores
4608

Cuda Cores

CUDA Cores are processing units in NVIDIA graphics cards that allow the simultaneous execution of many computational tasks. They accelerate the process of graphics processing, as well as other demanding tasks such as machine learning and data processing.
Device Group
Gaming
Colour
White

Special Features

RGB Lighting
No

RGB Lighting

It features built-in multicolored LED lighting.
OverClock (OC)
Yes

OverClock (OC)

Overclocking (OC) increases the frequencies of the core and the memory (VRAM) of the card for higher FPS and faster graphics processing. It is achieved by increasing the Power Limit and voltage, but requires strong cooling to prevent overheating.
Air-cooled
Yes

Air-cooled

The graphics card is cooled by one or more fans. 2. The most common way of cooling.
Low Profile
No

Low Profile

Small-sized graphics cards.

They are commonly used in computers with small cases.
Passive Cooling
No

Passive Cooling

The graphics card cools passively, without the use of fans. They are used in cards that are not as powerful, for building a silent computer or HTPC.
Water-cooled
No

Water-cooled

Graphics cards with a waiting connection to a liquid cooling system. They cannot operate without it. Usually found in powerful graphics cards aimed at experienced and demanding users.
External Graphics Card (eGPU)
No

External Graphics Card (eGPU)

A graphics card that has its own box with its own power supply and cooling.

Usually intended for use with laptops, offering the highest performance of a desktop graphics card.
LHR
No

LHR

The LHR (Lite Hash Rate) technology was introduced by NVIDIA to limit the performance of graphics cards in cryptocurrency mining. The goal was to make the cards less attractive to miners, in order to increase availability and reduce prices for gamers. It is important to note that this limitation only affects mining and does not impact the card’s performance in games or graphic applications at all.

Memory

Memory Capacity
16 GB

Memory Capacity

The amount of RAM memory that the graphics card has. Important for demanding games and applications at high resolutions. It is recommended that the card has 4GB or more for gaming.
Memory type
GDDR7

Memory type

RAM memory standards for graphics cards. Most modern cards have GDDR5 or GDDR6.
Memory Speed
2617 MHz

Memory Speed

The speed of the graphics card's RAM memory.
Memory Speed
28 Gbps
Memory bus
128 bit

Memory bus

The size of the communication channel between the chipset and the RAM of the graphics card. In combination with the processor's base clock speed, it determines the volume of data (which translates into graphics resolution and quality) that can be directed to the graphics card processor.

Connectivity

HDMI
1

HDMI

A modern way of digitally transmitting image and sound, compatible with DisplayPort and DVI through an adapter.
DisplayPort
3

DisplayPort

Modern way of digital transfer of image, sound and data, compatible with HDMI and DVI through an adapter.
Dual Link DVI
No

Dual Link DVI

The Dual version supports higher resolutions compared to the simple one. DVI is an older digital method of image transfer, partially compatible with HDMI cables through an adapter.

System Requirements

Minimum Power Supply
650 W

Minimum Power Supply

The minimum power supply required for proper operation of the graphics card in a computer. Mainly applies to modern and powerful graphics cards with particularly high demands. Most power supplies now are over 500W, covering the needs of an average graphics card. In any case, we must confirm that our power supply meets the requirements of the graphics card.
Power Connectors
8-pin

Power Connectors

The type of additional power supply that the card needs directly from the power supply.

Dimensions

Length
215 mm
Height
122 mm
Thickness
40 mm

Top Specs

Memory
16GB, GDDR7

Memory

It refers to the type (e.g., GDDR6, GDDR6X) and size of the integrated memory (e.g., 4GB, 8GB, 12GB) of the graphics card. Greater capacity and newer memory types offer better performance in demanding games and applications.
Connectivity
HDMI, DisplayPort

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Gigabyte GeForce RTX 5060 Ti is a top-tier graphics card designed for high performance and impressive visual experience. This card features 16GB GDDR7 memory, ideal for demanding games and graphics applications.

The card works with the Nvidia processor offering unmatched performance. The connection is made via PCI Express x8 5.0, providing fast and reliable data transfer.

  • The maximum resolution it supports reaches up to 7680x4320, ensuring impressive clarity.
  • The processor speed is 2617 MHz, ensuring smooth performance during games.
  • It has a memory bus of 128-bit, offering fast communication between the memory and the graphics processor.
  • Includes 1 HDMI and 3 DisplayPort ports for flexible connection options with monitors.
  • The card is air-cooled, ensuring proper cooling even under heavy loads.
  • Requires a minimum power supply of 650W and has 8-pin power for stable operation.

The Gigabyte GeForce RTX 5060 Ti is an excellent choice for those who want to enjoy games and applications with maximum performance and exceptional image quality.

Characteristics

  • Powered by NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX™ 5060 Ti
  • Integrated with 16 GB GDDR7 128-bit memory interface

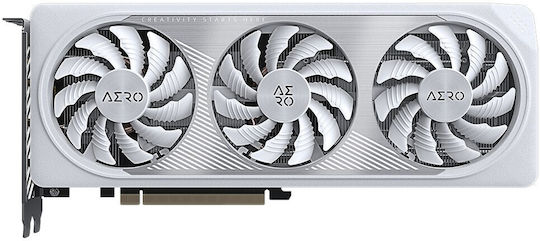

  • WINDFORCE cooling system
    • Hawk Fan
    • Server-grade thermal conductive gel
  • Enhanced structure
  • CORE CLOCK: 2617 MHz (Reference card: 2572 MHz)

NVIDIA Blackwell Architecture

The ultimate platform for gamers and creators

  • Fifth-Gen Tensor Cores: Maximum AI performance with FP4 and DLSS 4
  • New Streaming Multiprocessors: Optimized for neural shaders
  • Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
  • Graphics and performance enhanced with AI: NVIDIA DLSS 4 with Multi Frame Generation
  • Game-winning responsiveness: NVIDIA Reflex 2 with Warp Frame
  • True-to-Life Graphics: Full ray tracing with neural rendering
  • Digital Humans and AI Assistants: NVIDIA ACE
  • Accelerate your creativity: NVIDIA Studio creator tools and technology
  • Enhance any video with AI: NVIDIA Broadcast and 9th Gen NVIDIA Encoder
  • Performance and Reliability: NVIDIA application with Game Ready and Studio drivers
  • The ultimate game display technologies: NVIDIA G-SYNC


WINDFORCE Cooling System

The WINDFORCE cooling system offers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

STUNNING EXTERIOR DESIGN

The design inspiration for the EAGLE series comes from the fusion of aerospace battleships and elements of science fiction. Its unique curved contours outline an enhanced appearance, complemented by sectional lines resembling disassembled deck components, reminiscent of the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich atmosphere of cosmic technology, showcasing futuristic aesthetics and craftsmanship in every detail.

Signature Identity

The front design incorporates bold elements of aerospace and science fiction, clearly highlighting the distinct EALGE style, while maintaining a cohesive aesthetic with the motherboard product series. This ensures a unified design language and enhances the product family identity.


ULTRA COOLING - The lower MOSFET RDS(on) is specially designed to produce lower switching resistance for faster charging and discharging of electric current at an extremely low temperature.

LOW POWER LOSS - The metal choke holds energy much longer than common iron core chokes at high frequency, effectively reducing core energy loss and EMI interference.

LONGER LIFE - Lower ESR solid capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

The fully automated production process ensures top quality circuit boards and eliminates the sharp protrusions of solder connectors that appear on the conventional PCB surface. This friendly design prevents your hands from being cut or accidentally damaging components during your build.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Reviews (2)

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
672,00 €
14,00 €   shipping cost
